1
Engine displacement
330
2
Year
2005
3
Trim
ATP 330 4X4 QUAD - A05JD32EA
4
Parts Catalog
FUEL TANK AND CARBURETOR MOUNTING
5
Parts Diagram
Parts Catalog
CABIN
by
EXHAUST SYSTEM

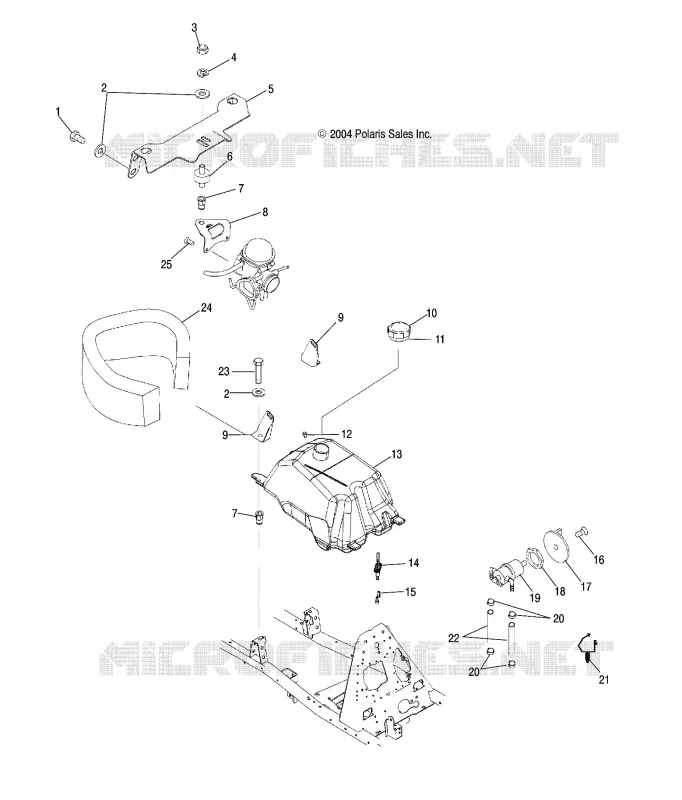

FUEL TANK AND CARBURETOR MOUNTING
1
2
2
3
4
5
6
7
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
BOLT LOCK
7512276
$9,44 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
4
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
5
Bracket Carburetor Support
5245671067
Not Available
6
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
7
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
8
Mount Carb
5245674067
Not Available
9
Bracket Mounting Rear RH
5222155
Not Available
9
Bracket Mounting Rear LH
5222154
Not Available
10
Cap Gas
2520364
Not Available
11
Gasket
5812123
$10,49 Unit Price incl. VAT
12
Plug Tank
5436123
$6,39 Unit Price incl. VAT
13
Asm. Fuel Tank [Incl. 4]
2520450
$211,56 Unit Price incl. VAT
14
Fitting Fuel Dual Outlet
7052364
Not Available
15
SCREW
7515136
$2,09 Unit Price incl. VAT
16
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
17
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
18
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
19
VALVE 3-WAY (If built before 1/14/00)
7052161
$83,99 Unit Price incl. VAT
20
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
21
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
22
Line Fuel
8450103
8450117-250
$99,74 Unit Price incl. VAT
23
BOLT
7512277
$9,44 Unit Price incl. VAT
24
FOAM-SEAL 17#
5811899
Not Available
25
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
