Parts Catalog

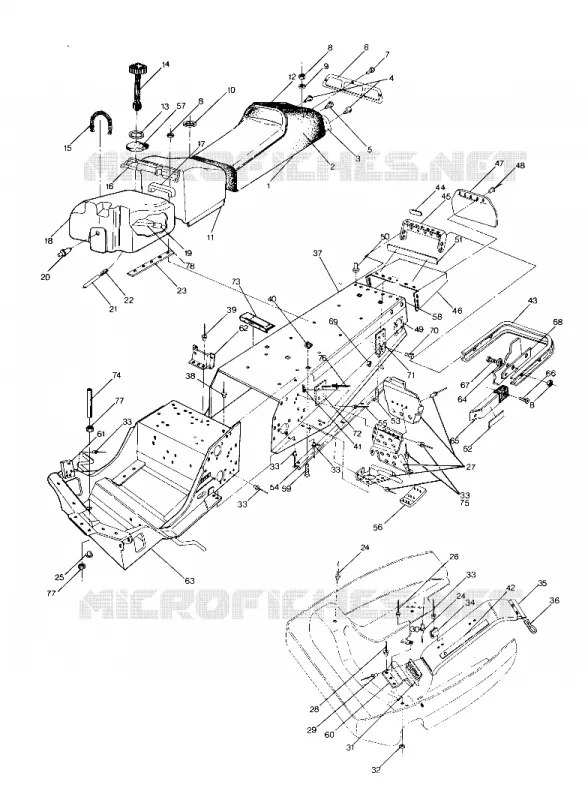

CHASSIS AND SEAT CLASSIC, 400 AND 650 (4914131413001A)
5
Parts Diagram
Parts Catalog
CHASSIS AND SEAT ALL NORWEGIAN INDY MODELS (4914521452005A)
by
DRIVEN CLUTCH 400 AND 650 (4914131413011A)
CHASSIS AND SEAT CLASSIC, 400 AND 650 (4914131413001A)
-
CUSHION SEAT #88(400) Substituted by 2200747 (Incl. 2-3) 400
2681323
Not Available
-
CUSHION SEAT #88CLASSIC Substituted by 2200747 (Incl. 2-7) (Classic)
2681326
Not Available
1
CUSHION SEAT #88(650) (Incl. 2-7) (650)
2681329
Not Available
2
COVER SEAT Substituted by 2200738 (650)
2681330
Not Available
2
COVER SEAT #88CLASSIC Substituted by 2200738 (Classic)
2681327
Not Available
2
COVER SEAT #88(400) Substituted by 2200738
2681324
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
Not Available
6
LENS TAILLIGHT
5430423
Not Available
7
SCREW(10)
7511840
Not Available
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
10
GROMMET-GAS TANK
5430575
Not Available
11
COVER TANK #88(400) [No Longer Available]
2681325
Not Available
11
COVER TANK #88CLASSIC [No Longer Available] (Classic)
2681328
Not Available
11
COVER TANK #88(650) [No Longer Available] (650)
2681331
Not Available
12
BUCKLE&STRAP (Sport 400 600)
2681290
Not Available
13
GASKET-GAS CAP Substituted by 5810513
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS Substituted by 2511246
2511149
2511246
$83,99 Unit Price incl. VAT
15
SPRING TANK FRONT
7042020
$27,29 Unit Price incl. VAT
16
STRAP GAS TANK Substituted by 5222330-067
5221722
Not Available
17
CUSHION TANK H.D.
5420126
Not Available
18
TANK GAS (Incl. 19-22)
2511150
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
Not Available
22
VENT-TANK
5430579
Not Available
23
PAD-GAS TANK
5810063
$7,97 Unit Price incl. VAT
24
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
25
PLUG
7080288
Not Available
26
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
$2,09 Unit Price incl. VAT
27
FOOTREST ASM RH [No Longer Available] (Classic)
2200270
Not Available
27
FOOTREST ASM LH
2200250
Not Available
27
FOOTREST ASM LH [No Longer Available] (Classic)
2200269
Not Available
27
FOOTREST ASM RH
2200254
Not Available
28
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
29
RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING (10) Substituted by 7080665
4020035
Not Available
31
HINGE
5210728
Not Available
32
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
33
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
34
CLIP BELT Substituted by 5222769 (400 600)
5220817
5222769
$15,74 Unit Price incl. VAT
35
GUARD CLUTCH(400 CL.) Substituted by 2251388 (Classic)
5230119
Not Available
35
GUARD CLUTCH Substituted by 5240965
5230118
Not Available
36
PIN RETAINING (10)
7080216
7080698
$17,84 Unit Price incl. VAT
36
PIN Substituted by 7080216 (Classic)
7080361
7080698
$17,84 Unit Price incl. VAT
37
TUNNEL ASM.(400SKS)
1011676
Not Available
37
TUNNEL ASM.(650SKS) Substituted by 1011676
1011695
Not Available
37
TUNNEL (400&650) Substituted by 1011804
1011664
Not Available
37
TUNNEL GOLD [No Longer Available] (Classic)
1011691
Not Available
38
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
39
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
40
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
41
SNAP-MALE(10)
7080227
Not Available
42
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
43
BUMPER REAR Substituted by 5224334-067
5224334
Not Available
43
BUMPER (SKS) Substituted by 5224349-067 (400 SKS & 650 SKS Only)
5224349
Not Available
44
DECAL TRACK Substituted by 7072872
7072132
Not Available
45
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
45
PANEL BACK GOLD [No Longer Available] (Classic)
5220927
Not Available
46
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Not Available
47
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
5410394-1038
$194,24 Unit Price incl. VAT
47
FLAP SNOW GOLD Substituted by 5410394
5410392
5410394-1038
$194,24 Unit Price incl. VAT
48
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
49
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
49
PLATE WEAR (Classic)
5220945
Not Available
50
RIVET Substituted by 7661812 (SPORT)
7661818
Not Available
50
RIVET (50) [No Longer Available] (Susp. Pads) (Classic)
7661821
Not Available
51
DECAL [No Longer Available] (400 SKS Only) (400)
7072414
Not Available
52
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
53
BOLT
7512103
$6,29 Unit Price incl. VAT
54
STRIP-WEAR (600 600 SE)
5510130
Not Available
55
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
56
PLATE TUNNEL RH
5220635
Not Available
56
PLATE TUNNEL LH
5220634
Not Available
57
FOAM FILLER
5810201
Not Available
58
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
59
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
60
BRACKET HINGE Substituted by 5241437
5220406
Not Available
60
BRACKET HINGE (Classic)
5220932
Not Available
61
SUPPORT MUFFLER Substituted by 1011601-067
1011601
Not Available
62
BRACKET Substituted by 5221932-067
5221932
Not Available
63
BULKHEAD (400) [No Longer Available] (400)
1011613
Not Available
63
BULKHEAD (600/650) (600)
1011614
Not Available
63
BULKHEAD Substituted by 1011613 (Classic)
1011690
Not Available
64
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
65
CAP BUMPER Substituted by 5430930-070 (TRAIL)
5430930
Not Available
66
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
67
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
68
SPACER R.BUMPER [No Longer Available]
5211109
Not Available
69
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
70
BOLT(10) Substituted by 7515494 (400 SKS/650 SKS Only)
7515482
Not Available
71
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
71
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
72
BRKT. Substituted by 5220542-067
5220542
Not Available
73
BRKT TOOL BOX
5220973
Not Available
74
TUBE DRAIN BATTERY [No Longer Available] (Twin ES)
5332405
Not Available
75
RIVET [No Longer Available] (Classic)
7661823
Not Available
76
RIVET (50) [No Longer Available] (Susp. Pads) (Classic)
7661821
Not Available
77
PALNUT(10) (Twin ES)
7670031
Not Available
78
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
$136,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for CLASSIC - 0880859

CHASSIS AND SEAT ALL NORWEGIAN INDY MODELS (4914521452005A)

CHASSIS AND SEAT ALL NORWEGIAN INDY MODELS (4914521452005A)

for CLASSIC - 0880859 from 1988

CHASSIS AND SEAT CLASSIC, 400 AND 650 (4914131413001A)

CHASSIS AND SEAT CLASSIC, 400 AND 650 (4914131413001A)

for CLASSIC - 0880859 from 1988

DRIVEN CLUTCH 400 AND 650 (4914131413011A)

DRIVEN CLUTCH 400 AND 650 (4914131413011A)

for CLASSIC - 0880859 from 1988

DRIVE CLUTCH 400 AND 650 (4914131413012A)

DRIVE CLUTCH 400 AND 650 (4914131413012A)

for CLASSIC - 0880859 from 1988

BRAKE CHAINCASE 400 AND 650 (4914131413013A)

BRAKE CHAINCASE 400 AND 650 (4914131413013A)

for CLASSIC - 0880859 from 1988

SUSPENSION 400 AND 650 (4914131413015A)

SUSPENSION 400 AND 650 (4914131413015A)

for CLASSIC - 0880859 from 1988

ELECTRIC START COMPONENTS Classic (4914131413023A)

ELECTRIC START COMPONENTS Classic (4914131413023A)

for CLASSIC - 0880859 from 1988

CRANKCASE 400 (4914131413025A)

CRANKCASE 400 (4914131413025A)

for CLASSIC - 0880859 from 1988

CRANKCASE 650 (4914131413026A)

CRANKCASE 650 (4914131413026A)

for CLASSIC - 0880859 from 1988

CYLINDER 400 (4914131413027A)

CYLINDER 400 (4914131413027A)

for CLASSIC - 0880859 from 1988

MAGNETO 650 (4914131413032A)

MAGNETO 650 (4914131413032A)

for CLASSIC - 0880859 from 1988

RECOIL STARTER 400 (4914131413033A)

RECOIL STARTER 400 (4914131413033A)

for CLASSIC - 0880859 from 1988

RECOIL STARTER 650 (4914131413034A)

RECOIL STARTER 650 (4914131413034A)

for CLASSIC - 0880859 from 1988

WATER PUMP 400 (4914131413035A)

WATER PUMP 400 (4914131413035A)

for CLASSIC - 0880859 from 1988

WATER PUMP 650 (4914131413036A)

WATER PUMP 650 (4914131413036A)

for CLASSIC - 0880859 from 1988

CARBURETOR 400 (4914131413041A)

CARBURETOR 400 (4914131413041A)

for CLASSIC - 0880859 from 1988

CARBURETOR 650 (4914131413042A)

CARBURETOR 650 (4914131413042A)

for CLASSIC - 0880859 from 1988

STARTER CLASSIC (4914131413043A)

STARTER CLASSIC (4914131413043A)

for CLASSIC - 0880859 from 1988

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4914521452009A)

CHASSIS AND SEAT ALL SWEDISH INDY MODELS (4914521452009A)

for CLASSIC - 0880859 from 1988

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4914521452011A)

BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4914521452011A)

for CLASSIC - 0880859 from 1988

HOOD CLASSIC, 400 AND 650 (4914131413003A)

HOOD CLASSIC, 400 AND 650 (4914131413003A)

for CLASSIC - 0880859 from 1988

NOSEPAN Classic, 400 and 650 (4914131413005A)

NOSEPAN Classic, 400 and 650 (4914131413005A)

for CLASSIC - 0880859 from 1988

CONSOLE CLASSIC, 400 AND 650 (4914131413006A)

CONSOLE CLASSIC, 400 AND 650 (4914131413006A)

for CLASSIC - 0880859 from 1988

FRONT SUSPENSION AND SKI CLASSIC, 400 AND 650 (4914131413007A)

FRONT SUSPENSION AND SKI CLASSIC, 400 AND 650 (4914131413007A)

for CLASSIC - 0880859 from 1988

STEERING 400 AND 650 (4914131413009A)

STEERING 400 AND 650 (4914131413009A)

for CLASSIC - 0880859 from 1988

ENGINE MOUNTING CLASSIC AND 400 (4914131413017A)

ENGINE MOUNTING CLASSIC AND 400 (4914131413017A)

for CLASSIC - 0880859 from 1988

ENGINE MOUNTING 650 (4914131413019A)

ENGINE MOUNTING 650 (4914131413019A)

for CLASSIC - 0880859 from 1988

COOLING SYSTEM CLASSIC AND 400 (4914131413021A)

COOLING SYSTEM CLASSIC AND 400 (4914131413021A)

for CLASSIC - 0880859 from 1988

COOLING SYSTEM 650 (4914131413022A)

COOLING SYSTEM 650 (4914131413022A)

for CLASSIC - 0880859 from 1988

CYLINDER 650 (4914131413028A)

CYLINDER 650 (4914131413028A)

for CLASSIC - 0880859 from 1988

PISTON AND CRANKSHAFT 400 (4914131413029A)

PISTON AND CRANKSHAFT 400 (4914131413029A)

for CLASSIC - 0880859 from 1988

PISTON AND CRANKSHAFT 650 (4914131413030A)

PISTON AND CRANKSHAFT 650 (4914131413030A)

for CLASSIC - 0880859 from 1988

MAGNETO 400 (4914131413031A)

MAGNETO 400 (4914131413031A)

for CLASSIC - 0880859 from 1988

OIL PUMP 400 (4914131413037A)

OIL PUMP 400 (4914131413037A)

for CLASSIC - 0880859 from 1988

OIL PUMP 650 (4914131413038A)

OIL PUMP 650 (4914131413038A)

for CLASSIC - 0880859 from 1988

FUEL PUMP 400 (4914131413039A)

FUEL PUMP 400 (4914131413039A)

for CLASSIC - 0880859 from 1988

FUEL PUMP 650 (4914131413040A)

FUEL PUMP 650 (4914131413040A)

for CLASSIC - 0880859 from 1988

POLARIS CLASSIC - 0880859 1988

CLASSIC - 0880859

CLASSIC - 0880859

Model : OTHERS

Year : 1988

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
