1
Engine displacement
780
2
Year
1995
3
Trim
SLX 780 - B954287
4
Parts Catalog

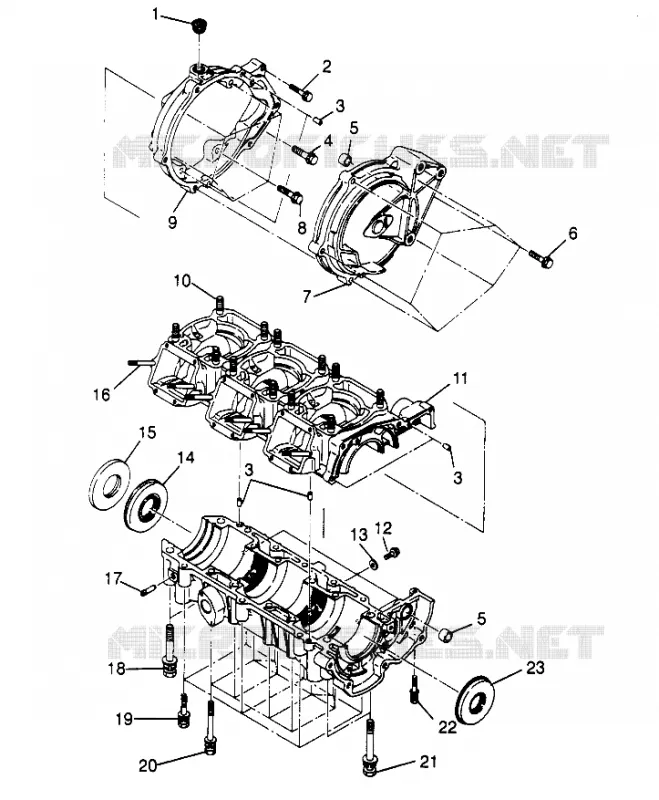

CRANKCASE ASSEMBLY SLX 780 B954287 (4933953395B013)
5
Parts Diagram
Parts Catalog
TOOL KIT ASSEMBLY SLX 780 B954287 (4933953395B012)
by
CYLINDER MANIFOLD SLX 780 B954287 (4933953395B014)
CRANKCASE ASSEMBLY SLX 780 B954287 (4933953395B013)
13
14
15
16
17
18
19
20
21
22
23
1
PLUG (Rubber)
3240046
Not Available
2
BOLT FLANGE
3240047
$4,08 Unit Price incl. VAT
3
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
4
BOLT FLANGE
3240048
$5,45 Unit Price incl. VAT
5
BUSHING STARTER
3083669
Not Available
6
BOLT FLANGE
3240285
Not Available
7
COVER MAG. (Incl. 5)
3240221
Not Available
8
BOLT FLANGE
3084134
Not Available
9
CRANKCASE 3
3240044
Not Available
10
STUD
3240032
$17,94 Unit Price incl. VAT
11
CRANKCASE (Incl. 3 5 10 16-22)
3240246
Not Available
12
BOLT FLANGE(10)
3240040
$0,51 Unit Price incl. VAT
13
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
14
SEAL OIL
3240042
Not Available
15
SEAL OIL
3240043
Not Available
16
STUD
3240247
$4,40 Unit Price incl. VAT
17
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT
18
BOLT&WASHER ASM.
3240035
Not Available
19
BOLT&WASHER ASM.
3240038
Not Available
20
BOLT&WASHER ASM.
3240037
Not Available
21
BOLT&WASHER ASM.
3240036
Not Available
22
BOLT&WASHER ASM.
3240039
Not Available
23
SEAL OIL
3240041
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
