1
Engine displacement
600
2
Year
2020
3
Trim
600 INDY SP 137
4
Parts Catalog

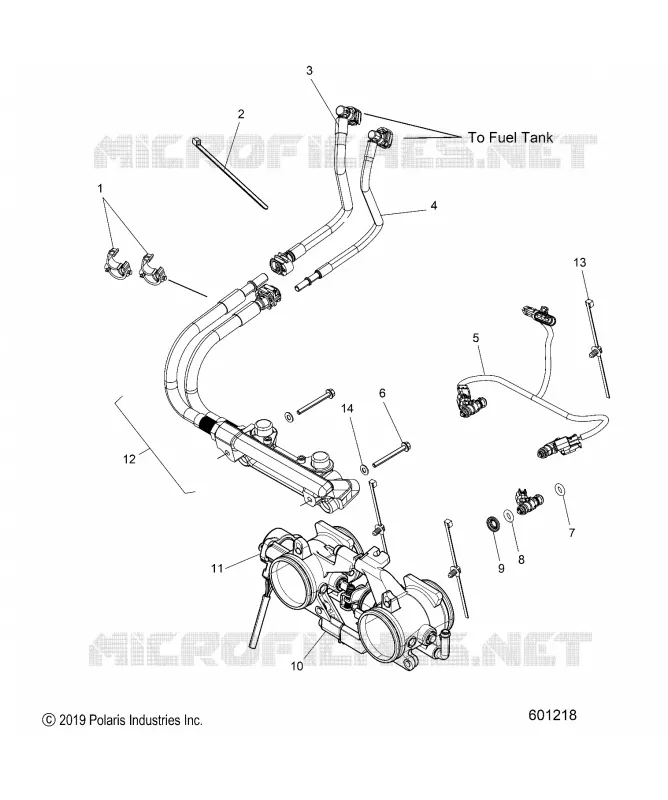

FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
5
Parts Diagram
Parts Catalog
EXHAUST
by
REAR SUSPENSION
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
CLIP-HARNESS 3-13MM INTERLCK
7081871
$7,34 Unit Price incl. VAT
2
CABLE TIE
7080356
$4,19 Unit Price incl. VAT
3
ASM. FUEL LINE RETURN
2521345
$157,49 Unit Price incl. VAT
4
ASM. FUEL LINE SUPPLY
2521344
$45,14 Unit Price incl. VAT
5
HARNESS INJECTOR WITH LEAD [INC. INJECTORS]
4014242
4014715
$488,24 Unit Price incl. VAT
6
SCR-HXFL-M6X1.0X60 10.9 ZY3
7519244
$3,14 Unit Price incl. VAT
7
O-RING-BOSCH EV-14 UPPER BLUE
1500198
$20,25 Unit Price incl. VAT
8
O-RING
5412891
$2,09 Unit Price incl. VAT
9
BUSHING RUBBER
5436287
$6,29 Unit Price incl. VAT
10
ASM. THROTTLE BODY 46MM
1204920
$913,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
ASM. FUEL RAIL AS
2522185
$824,24 Unit Price incl. VAT
13
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
14
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
