Engine displacement
900
2
Year
2012
3
Trim
RANGER 4X4 900 DIESEL CREW - R12WH90DG
4
Parts Catalog
WIRE HARNESSES
5

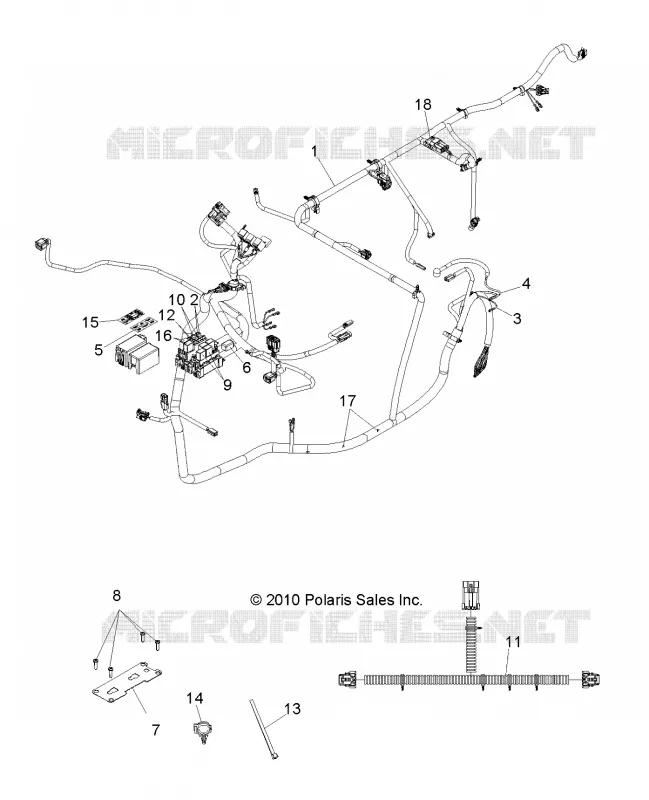

Parts Diagram
Parts Catalog
ELECTRICAL, INSTRUMENTS CONTROLS
by
ENGINE, ALTERNATOR
WIRE HARNESSES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Harness Chassis [Incl. 2-6 9 10 12 15-18]
2411517
Not Available
2
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
3
KIT FUSIBLE LINK .8 MM
2202607
$73,49 Unit Price incl. VAT
4
LINK-FUSIBLE 2.0mm² X 110mm MAX LONG (GY)
2203632
$73,49 Unit Price incl. VAT
5
Lable Fuse Box
7176368
Not Available
6
BREAKER-CIRCUIT 20 AMP SEALED
2410881
$141,74 Unit Price incl. VAT
7
Plate Fuse Mount Double
5254004
Not Available
8
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
9
RELAY-MICRO SPDT 35/20A SLD 12
4011998
$99,74 Unit Price incl. VAT
10
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
11
Harness Box
2411387
$141,74 Unit Price incl. VAT
12
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
13
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
14
Clip Rosebud
4020149
$12,59 Unit Price incl. VAT
15
Label Fuse Box
7177049
Not Available
16
RELAY SPDT SERIERS 301 SEALED
4011284
$68,24 Unit Price incl. VAT
17
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
18
Kit Harness Resistor Module
2204890
$257,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
