1
Engine displacement
900
2
Year
2018
3
Trim
RZR S4 900 EPS 4 SEAT
4
Parts Catalog

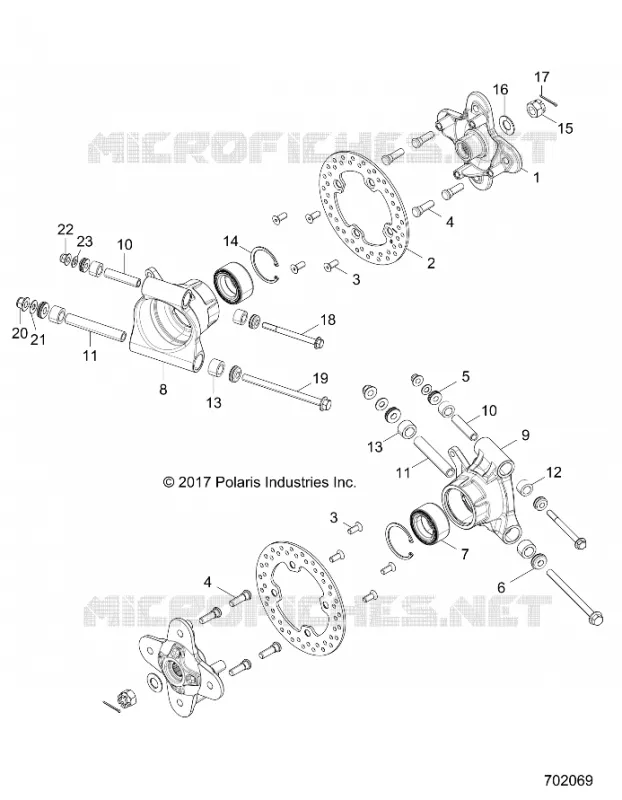

REAR SUSPENSION CARRIER
5
Parts Diagram
Parts Catalog
OWNERS MANUAL AND TOOL KIT
by
REAR SUSPENSION SHOCK
REAR SUSPENSION CARRIER
1
2
3
3
4
4
5
6
7
8
9
10
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
1
1
2
2
3
3
4
4
5
1
HUB-WHEEL MACH BLK
5141366458
$220,49 Unit Price incl. VAT
2
ROTOR BRAKE
5263266
$125,99 Unit Price incl. VAT
3
SCR-M10X1.5X20 8.8 TXCS FL ZOD
7518978
$7,34 Unit Price incl. VAT
4
STUD-WHEEL M12-1.5
7519753
$9,44 Unit Price incl. VAT
5
ASM-PIVOT CAP SEALED M10
1543611
$10,49 Unit Price incl. VAT
6
ASM-PIVOT CAP SEALED M12 [INCLUDES O-RING & SEAL]
1543612
$10,49 Unit Price incl. VAT
7
BEARING-BALL SEALED 44X72X33.1
3514924
$73,49 Unit Price incl. VAT
8
CARRIER BEARING WHEEL LH
5139979
$169,04 Unit Price incl. VAT
9
CARRIER BEARING WHEEL RH
5139980
$169,04 Unit Price incl. VAT
10
SHAFT-PIVOT SHORT M10
5139990
$10,49 Unit Price incl. VAT
11
SHAFT-PIVOT LONG M12
5139991
$16,79 Unit Price incl. VAT
12
BUSHING-STANDARD SUSP M10
5452233
$5,24 Unit Price incl. VAT
13
BUSHING-STANDARD SUSP M12
5452271
$6,29 Unit Price incl. VAT
14
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
15
NUT-M18X1.5 CASTLE ZINC/YELLOW
7547337
$3,66 Unit Price incl. VAT
16
WSHR-BLVL 19X42X4.5-5.08
7557128
7557134
$14,69 Unit Price incl. VAT
17
PIN-COTTER 1/8X1 1/2-Y
7661404
$9,44 Unit Price incl. VAT
18
SCR-HXFL-M10X1.25X115 10.9 ZOD
7519365
$25,19 Unit Price incl. VAT
19
SCR-HXFL-M12X1.5X170 10.9 ZOD
7520294
$20,99 Unit Price incl. VAT
20
NUT-M12X1.5 FLG NYLOC-OLIVE D
7547334
$9,44 Unit Price incl. VAT
21
WASHER-7/16 SAE STF THRU-HRD-Y
7556212
$15,74 Unit Price incl. VAT
22
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
23
WASHER
7556153
$3,66 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
