WIRE HARNESS COMPONENTS FOR RANGER 1000 WINTER PREP FACTORY CHOICE 49S & 50S FROM 2020

HEADLIGHTS AND TAILLIGHTS

CYLINDER AND PISTON

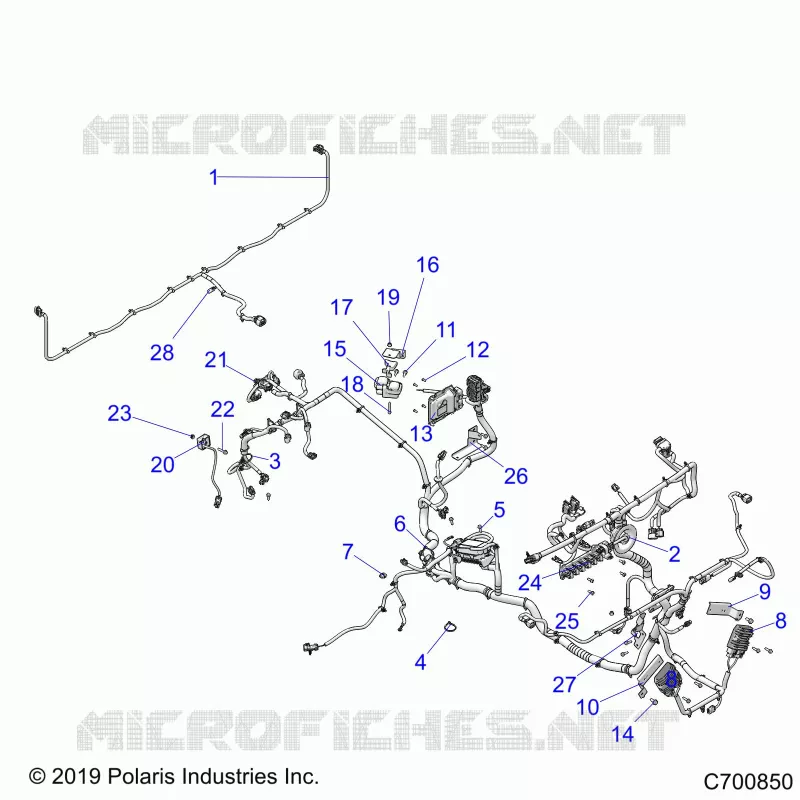

WIRE HARNESS COMPONENTS

1

HARNESS BOX RANGER RC [INCL. ALL] [FROM 09/18/2023]

2414296

$125,99 Unit Price incl. VAT

2

GROMMET-HOOD LINER SPLIT

5417082

$13,64 Unit Price incl. VAT

3

CABLE-TIE 10-102MM WEATH.-RES.

7080761

$5,24 Unit Price incl. VAT

4

CLIP-OMEGA CABLE/19-24.5MM DIA

7082408

$23,09 Unit Price incl. VAT

5

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

6

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

7

CLIP-ROUTING

7081496

$9,44 Unit Price incl. VAT

8

REGULATOR-3PH 35A SERIES 105C

4012941

$451,49 Unit Price incl. VAT

9

BRKT-MOUNT REG

5263643

$73,49 Unit Price incl. VAT

10

BRKT-MOUNT REG [RRS99CK]

5267612

$31,49 Unit Price incl. VAT

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

12

SCR-#10X1/2-HI/LO-PN-T25 TRX-M

7519091

$6,29 Unit Price incl. VAT

13

ECM-HARD ME17 2CYL 250K

4014125

$1 123,49 Unit Price incl. VAT

14

SCR-TFHFL-M6X1.0X25 ZY3

7520715

$7,34 Unit Price incl. VAT

15

COIL-EFI

4010425

$451,49 Unit Price incl. VAT

16

BRKT-COIL MOUNT

5263891

$19,94 Unit Price incl. VAT

17

SPACER-COIL MOUNT

5436577

$7,34 Unit Price incl. VAT

18

SCR-M6X1.0X40 HX/SOC/CP-B

7518780

$7,34 Unit Price incl. VAT

19

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

20

RELAY SOLID STATE 9 AMP LONG LD

4012829

$141,74 Unit Price incl. VAT

21

CLIP-EDGE 1-3mm THICKNESS

7082403

$9,44 Unit Price incl. VAT

22

BOLT-M6X1.0X35 HXFLG/SH-OLV D

7518612

$9,44 Unit Price incl. VAT

23

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

24

BLOCK-TERMINAL 3 POST TALL

4016007

$68,24 Unit Price incl. VAT

25

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$7,34 Unit Price incl. VAT

26

BRKT-HARNESS ROUTING

5264314

$23,09 Unit Price incl. VAT

27

BRKT-ROUTING BLK

5268050329

$52,49 Unit Price incl. VAT

28

CAP - VINYL 125X375 BLACK

5438230

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
