1
Engine displacement
500
2
Year
2012
3
Trim
SCRAMBLER 500 4X4 INTL - A12NG50FA
4
Parts Catalog

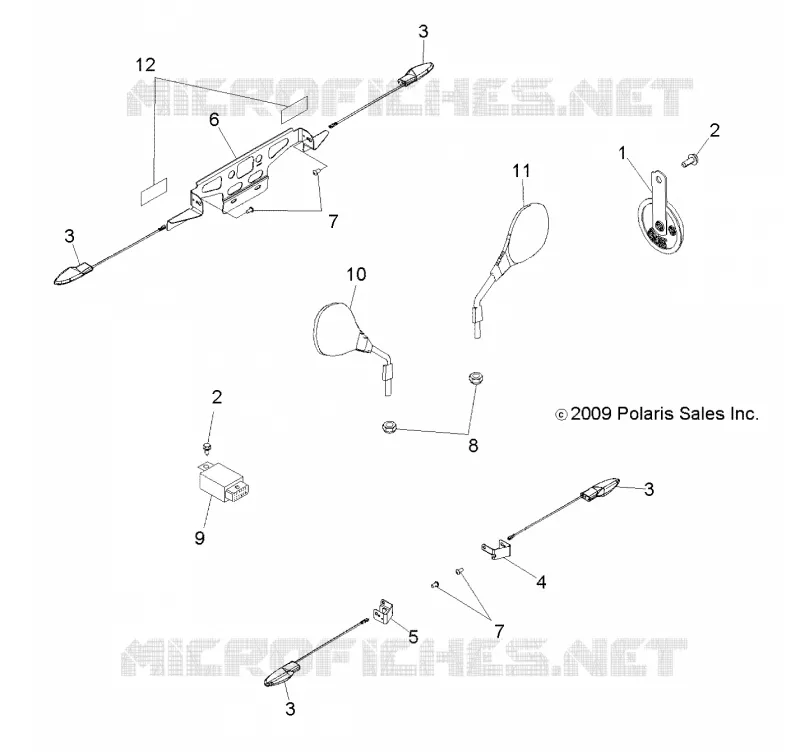

TURN SIGNALS, HORN, MIRRORS and LICENSE PLATE HOLDER
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, CARBURETOR BRACKET
TURN SIGNALS, HORN, MIRRORS and LICENSE PLATE HOLDER
1
2
2
3
3
3
3
4
5
6
7
7
8
9
10
11
12
1
HORN DISC [TO 11/6/2023]
4011579
4082229
$87,14 Unit Price incl. VAT
2
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
3
Signal Taillight Flat Black
2411114463
$125,99 Unit Price incl. VAT
4
Mount Turn Signal LH Black
5253908067
Not Available
5
Mount Turn Signal RH Black
5253909067
Not Available
6
Bracket License Plate Black
5253193067
$112,86 Unit Price incl. VAT
7
SCR-M6X1.0X12 PH/TX-Y
7518430
$9,44 Unit Price incl. VAT
8
NUT-HEX M8X1.25 NYLOCK-SS [S99CR]
7546804
$2,09 Unit Price incl. VAT
9
MODULE FLASHER LED
4013043
$283,49 Unit Price incl. VAT
10
ASM-MIRROR HNDLBR RH [E99FR][S99FR]
2633315
$80,84 Unit Price incl. VAT
11
ASM-MIRROR HNDLBR LH [E99FR][S99FR]
2633314
$80,84 Unit Price incl. VAT
12
Asm. Reflector Red
2633065
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
