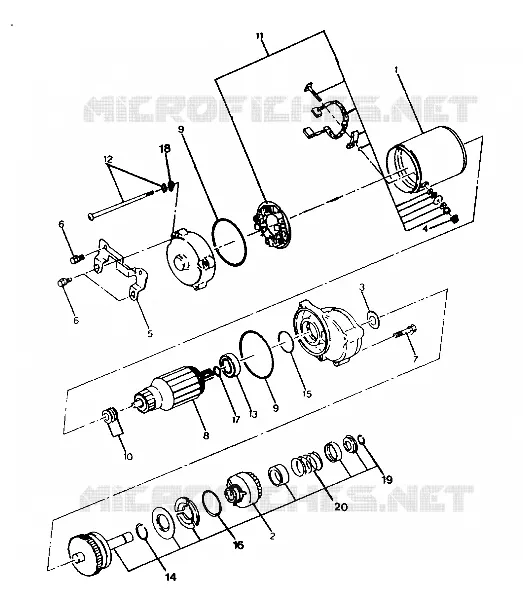

STARTING MOTOR ASSEMBLY TRAIL BOSS FOR TRAIL BOSS 250

STARTER MOTOR ASM. Substituted by 3084403 (Incl. 3-7 10-12 17 18)

3083760

Not Available

SUPPORT RH STRUT

5130804

Not Available

STARTER MOTOR ASM. Substituted by 3085393 (Incl.8-17) (#J# Model Only)

3084403

Not Available

SUPPORT LH STRUT

5130803

Not Available

SEAL FRONT HUB

3610020

Not Available

GEAR SHAFT ASM. Substituted by 3085394

3083647

$456,74 Unit Price incl. VAT

BEARING BALL

3514001

$34,64 Unit Price incl. VAT

WASHER GEARSHAFT Substituted by 7555908

3083737

7556994

$6,29 Unit Price incl. VAT

DISC BRAKE

5211325

$141,74 Unit Price incl. VAT

NUT FLANGE(10)

3083649

$7,34 Unit Price incl. VAT

HUB WHEEL FRONT

5130658

Not Available

BRACKET

3083650

Not Available

TIRE FR (22X8-10)

5410408

Not Available

BOLT (10)

3081645

Not Available

ASM. BOLT AND WASHER

3082038

$7,34 Unit Price incl. VAT

RIM FRONT WELD. (Primed)

1520118

Not Available

ARMATURE ASM.

3083776

$307,64 Unit Price incl. VAT

VALVE-RIM

1525017

$12,59 Unit Price incl. VAT

ARMATURE ASM. *

3084404

$333,89 Unit Price incl. VAT

SPACER HUB FRONT

5010256

Not Available

RING RUBBER

3084405

Not Available

RING RUBBER

3083738

Not Available

WASHER SET

3083754

$4,19 Unit Price incl. VAT

WASHER

7555721

$2,09 Unit Price incl. VAT

NUT(10)

7542712

$17,84 Unit Price incl. VAT

BRUSH ASM.

3083728

Not Available

BRUSH COMPL.2-POLE *

3084406

$230,99 Unit Price incl. VAT

COTTER PIN(10)

7661407

$9,44 Unit Price incl. VAT

BOLT THROUGH

3083739

Not Available

BOLT THROUGH (#J# Model Only)

3084407

Not Available

BALL BEARING

3083777

$54,59 Unit Price incl. VAT

CAP HUB

5431018

$31,49 Unit Price incl. VAT

O RING

5410470

$4,19 Unit Price incl. VAT

CLIP

3084412

$17,84 Unit Price incl. VAT

O RING

3083741

Not Available

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

STUD WHEEL 5/16-18(10)

7515330

Not Available

SPRING WEIGHT

3084411

$25,08 Unit Price incl. VAT

O RING

3083934

Not Available

BOLT(10)

7515321

Not Available

O-RING

3084408

Not Available

CLIP

3084409

$13,64 Unit Price incl. VAT

SPRING RETURN

3084410

$3,98 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
