1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 TRACTOR
4
Parts Catalog

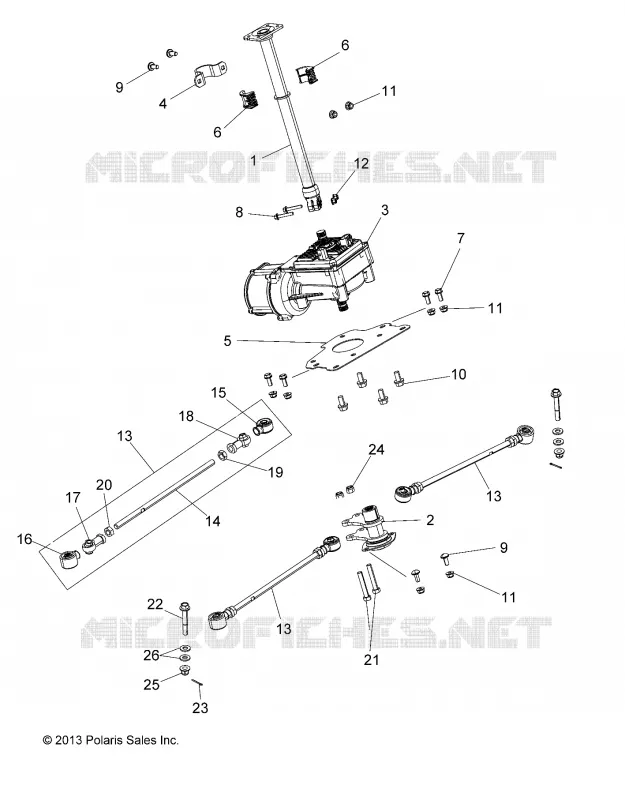

POWER STEERING EPS
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
POWER STEERING EPS
7
8
9
9
10
11
11
11
12
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
WELD-STEERING POST UPPER BLK
1824750329
1830452-329
$288,74 Unit Price incl. VAT
2
ASM. STEERING POST LOWER
1824101
$283,49 Unit Price incl. VAT
3
ASM-POWER STEERING ATV
2414021
$2 433,89 Unit Price incl. VAT
4
BRACKET BUSHING STEERING UPPER
5257028
$62,99 Unit Price incl. VAT
5
PLATE-MNT PWR STEERING E-COAT
5257877329
$47,24 Unit Price incl. VAT
6
BUSHING-UPPER STEERING 1 IN [RRP99C]
5439731
$12,59 Unit Price incl. VAT
7
SCR-5/16-18X3/4 HX/FLG GR5-Y
7515398
$4,19 Unit Price incl. VAT
8
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
9
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
10
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
11
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
12
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
13
ASM-TIE ROD 1/2-20X14.16 [INCL. 2-8]
1822851
$204,74 Unit Price incl. VAT
14
ROD-TIE 1/2-20X12.21
5134242
$83,99 Unit Price incl. VAT
15
BOOT-SEAL ROD END 1/2 IN
5412928
$20,99 Unit Price incl. VAT
16
BOOT-SEAL ROD END 10MM
5412929
$20,99 Unit Price incl. VAT
17
ROD-END 10MM 1/2-20LH 42 DEG
7061138
$104,99 Unit Price incl. VAT
18
ROD-END 3/8 1/2-20RH 44DEG
7061139
$115,49 Unit Price incl. VAT
19
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
20
NUT-1/2-20 LH JAM
7547028
$4,19 Unit Price incl. VAT
21
SCREW
7515415
$2,09 Unit Price incl. VAT
22
SCR-HXFL-M10X1.25X65 10.9 ZY3
7517909
$10,49 Unit Price incl. VAT
23
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
24
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
25
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
26
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
