PISTON AND CRANKSHAFT (600 AND 600 LE) (4910941094036A) FOR TRAIL - 0860761 FROM 1986

CYLINDER (TRAIL) (4910941094031A)

MAGNETO (TRAIL) (4910941094037A)

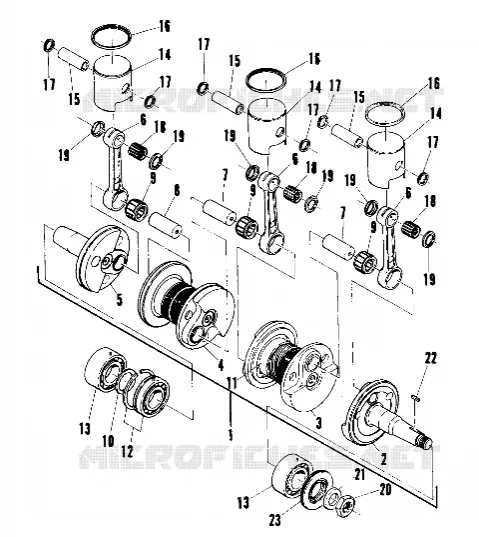

PISTON AND CRANKSHAFT (600 AND 600 LE) (4910941094036A)

1

CRANKSHAFT ASM. Substituted by 3084377 (Incl. 2-13)

3083476

Not Available

2

CRANKSHAFT 1 MAG. END

3083342

Not Available

3

CRANKSHAFT MAG SIDE (Incl. 7)

3083478

Not Available

4

CRANKSHAFT PTO SIDE (Incl. 7)

3083479

Not Available

5

CRANKSHAFT PTO END

3083346

Not Available

6

ROD-CONNECTING

3083252

$236,24 Unit Price incl. VAT

7

PIN-CRANK 1

3083253

Not Available

8

PIN-CRANK 2

3083254

Not Available

9

BEARING-LARGE END Substituted by 3085628

3083255

$54,59 Unit Price incl. VAT

10

SPACER

3083399

$1,46 Unit Price incl. VAT

11

BEARING BALL Substituted by 3084586

3083480

$60,89 Unit Price incl. VAT

12

BEARING Substituted by 3083714

3083457

Not Available

13

BEARING BALL Substituted by 3084378

3083002

Not Available

14

PISTON .020 O/S Substituted by 3083885 (.020 Over)

3083293

Not Available

14

PISTON Substituted by 3083883 (Standard)

3083348

Not Available

14

PISTON .010 O/S Substituted by 3083884 (.010 Over}

3083292

Not Available

15

PIN PISTON WRIST Substituted by 3083849

3083305

Not Available

16

RING PISTON .020 O/S (.020 Over)

3083359

Not Available

16

RING PISTON .010 O/S (.010 Over)

3083358

Not Available

16

RING PISTON (Standard)

3083349

Not Available

17

CLIP PISTON PIN (10)

3083682

Not Available

18

BEARING END SMALL

3083216

$25,71 Unit Price incl. VAT

19

SPACER Substituted by 3083860

3083401

Not Available

20

NUT

3083047

Not Available

21

WASHER

3083048

Not Available

22

KEY

3081447

Not Available

23

SEAL OIL(10)

3083045

$62,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
