1
Engine displacement
0
2
Year
2017
3
Trim
GEM (R05) - L17G2/4/6/EURO ALL OPTIONS
4
Parts Catalog

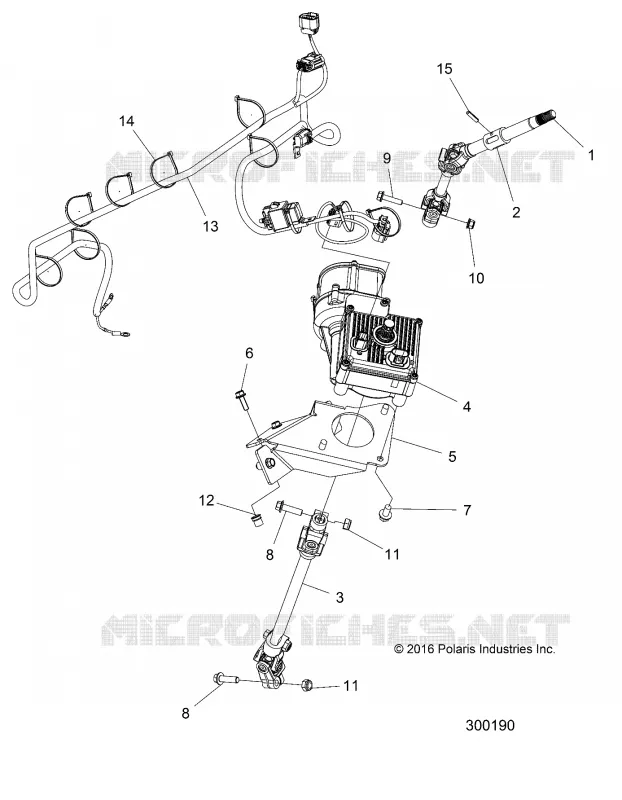

STEERING, SHAFT, EPS, LH
5
Parts Diagram
Parts Catalog
STEERING, BOX , GEAR, STEERING, RH, USA ONLY
by
STEERING, SHAFT, EPS, RH
STEERING, SHAFT, EPS, LH
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
1
2
2
3
4
4
5
6
7
8
9
10
11
12
12
12
12
12
13
13
14
14
15
1
SHAFT-STEERING UPPER EPS
1824589
Not Available
2
COLLAR-LOCK BLK
5140926329
Not Available
3
SHAFT-STEERING LOWER EPS LH
1824483
Not Available
4
ASM-POWER STEERING GEM
2413377
Not Available
5
BRKT-STEERING EPS LH ECOAT
5261021329
Not Available
6
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
7
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
8
SCR-M10X1.50X35 HX/FL
7518644
$9,44 Unit Price incl. VAT
9
SCR-HXFL-M8X1.25X35 8.8 ZOD
7519052
$3,14 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
NUT-NY INS M10X1.5 HEX ZINC YW
7547385
$2,09 Unit Price incl. VAT
12
NUT-RIVNUT M8X1.25
7547788
Not Available
13
ASM-HARNESS EPS
2413353
Not Available
14
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
15
PIN-M6 SPRING 26MM
7662315
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
