1
Engine displacement
500
2
Year
2000
3
Trim
SPORTSMAN 500 - A00CH50AL
4
Parts Catalog

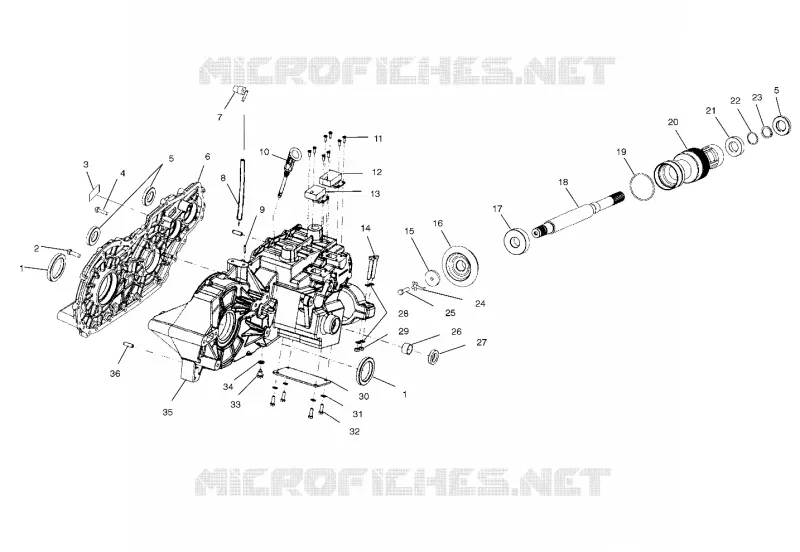

GEARCASE (CASES AND SNORKEL)
5
Parts Diagram
Parts Catalog
GEARCASE (INTERNAL COMPONENTS)
by
CRANKCASE
GEARCASE (CASES AND SNORKEL)
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
1
SEAL
3233256
3233878
$57,74 Unit Price incl. VAT
2
SCREW
3233026
$12,59 Unit Price incl. VAT
3
DECAL-SWITCH
3233636
Not Available
4
SCREW
3233252
$9,44 Unit Price incl. VAT
5
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
6
GEARCASE-LH
3233716
Not Available
7
FITTING 90 DEGREE
7052095
$9,44 Unit Price incl. VAT
8
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
9
VENT
3233037
Not Available
10
DIPSTICK
3233475
Not Available
11
SCREW Substituted by 3233749
3233691
3233749
$10,49 Unit Price incl. VAT
12
SWITCH ITW 2 POSITION
3233617
Not Available
13
SWITCH-H/R ITW
3233635
$262,49 Unit Price incl. VAT
14
BOLT
3233442
$3,98 Unit Price incl. VAT
15
WASHER
3233352
$3,14 Unit Price incl. VAT
16
GEAR 31T SNORKEL
3233476
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
SHAFT SNORKEL
3233446
Not Available
19
O-RING
3233302
Not Available
20
SNORKEL
3233303
Not Available
21
Bearing Ball
3233305
$54,59 Unit Price incl. VAT
22
SPACER (1.180 x .995 x .040)
3233355
Not Available
22
SPACER (1.180 x .995 x .005)
3233356
Not Available
22
SPACER
3233357
$36,74 Unit Price incl. VAT
22
SPACER (1.180 x .995 x .010)
3233353
$4,08 Unit Price incl. VAT
22
SPACER (1.180 x .995 x .025)
3233354
$4,08 Unit Price incl. VAT
23
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
24
BOLT LOCK SNORKEL GEAR
3233444
$4,19 Unit Price incl. VAT
25
BOLT
3233351
$3,66 Unit Price incl. VAT
26
BUSHING
3233292
$57,74 Unit Price incl. VAT
27
SEAL
3233293
Not Available
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
29
NUT FLEXLOCK
3233291
$5,24 Unit Price incl. VAT
30
PLATE COVER
3233294
$18,57 Unit Price incl. VAT
31
WASHER LOCK
3233295
$3,66 Unit Price incl. VAT
32
SCREW
3233296
Not Available
33
PLUG DRAIN Substituted by 3233777
3233253
$52,49 Unit Price incl. VAT
34
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
35
GEARCASE-RH Substituted by 3233748
3233672
Not Available
36
PIN DOWEL
3233247
$13,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
