1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT M-10 X F/O
4
Parts Catalog
STEERING HANDLEBAR
5

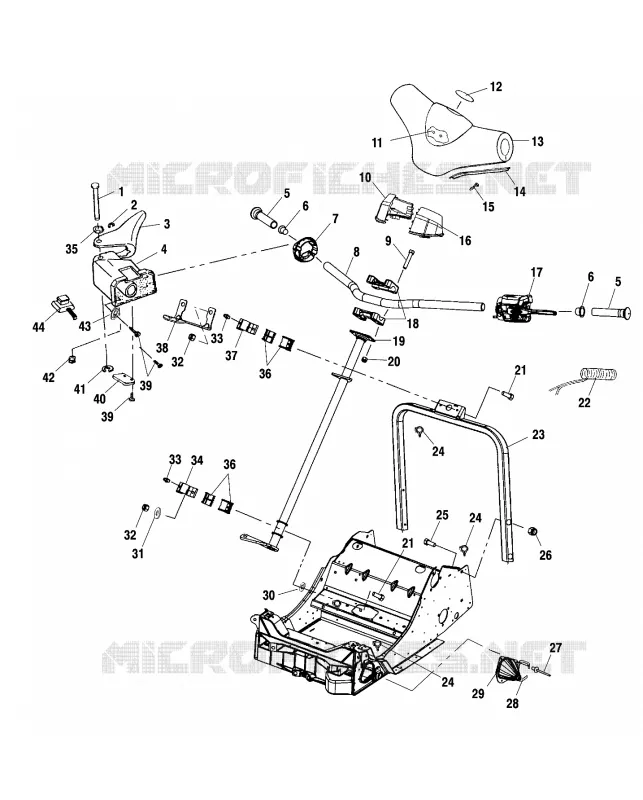

Parts Diagram
Parts Catalog
HOOD FOAM/FOIL
by
STEERING
STEERING HANDLEBAR
1
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
2
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
3
LEVER THROTTLE LEVER ONLY
5432970
$52,49 Unit Price incl. VAT
3
LEVER ASM HTR HI/LO 35.5MM
2010171
$157,49 Unit Price incl. VAT
4
BLOCK THROTTLE/BRAKE
5431592
$73,49 Unit Price incl. VAT
5
GRIP H#BAR SNOW
5432634
$52,49 Unit Price incl. VAT
6
PLUG-OVERFLOW 8X (RED)
5431096
$3,66 Unit Price incl. VAT
7
ADAPTOR BLOCK THROTTLE
5433345
$26,24 Unit Price incl. VAT
8
HANDLE BAR BLK
5243355067
$152,24 Unit Price incl. VAT
9
SCREW
7517238
$9,44 Unit Price incl. VAT
10
Collar RH
5434488
Not Available
11
NUT-PUSH ON .170-.180-Y(10)
7670106
Not Available
12
EMBLEM-#STAR# PLM.BEZEL HNDLBR
5434179
Not Available
13
COVER-HANDLEBAR BLK
5433159070
$99,95 Unit Price incl. VAT
14
SLIDE HANDLEBAR COVER BLACK
5433160070
$52,49 Unit Price incl. VAT
15
DART CLIP NYLON BLACK
4010287
$7,34 Unit Price incl. VAT
16
Collar LH
5434487
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
19
WELD-STEERING POST EDGE BLK
1820965067
Not Available
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
BOLT-CARR 5/16-X1#GR5 Y LO(10)
7517579
$11,54 Unit Price incl. VAT
22
HEATER GRIP LO/MED/HI
2460677
$120,74 Unit Price incl. VAT
23
Hoop Steering [Edge]
1013776067
$468,29 Unit Price incl. VAT
23
Hoop Steering [M-10]
1013804067
Not Available
24
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
25
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
26
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
27
RIVET
7621433
$2,09 Unit Price incl. VAT
28
PLATE TIE ROD BOOT
5244470
Not Available
29
BOOT TIE ROD L.H.
5433532
Not Available
29
BOOT TIE ROD R.H.
5433533
Not Available
30
NUT-5/16-PAL-Y
7547030
$9,44 Unit Price incl. VAT
31
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
32
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
33
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
34
BRACKET STEERING POST
5133648
$83,99 Unit Price incl. VAT
35
WASHER
7555730
$7,34 Unit Price incl. VAT
36
BUSHING STEERING POST
5432785
$11,54 Unit Price incl. VAT
37
BRKT STEER.POST
5131841
$83,99 Unit Price incl. VAT
38
Bracket Console Support
5245354
$11,96 Unit Price incl. VAT
39
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
40
HOLDER WIRE
5432261
$47,24 Unit Price incl. VAT
41
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
42
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
43
WSHR-11/64X3/8X1/32-Y
7555727
$1,04 Unit Price incl. VAT
44
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
