1
Engine displacement
500
2
Year
2002
3
Trim
500 SKS
4
Parts Catalog

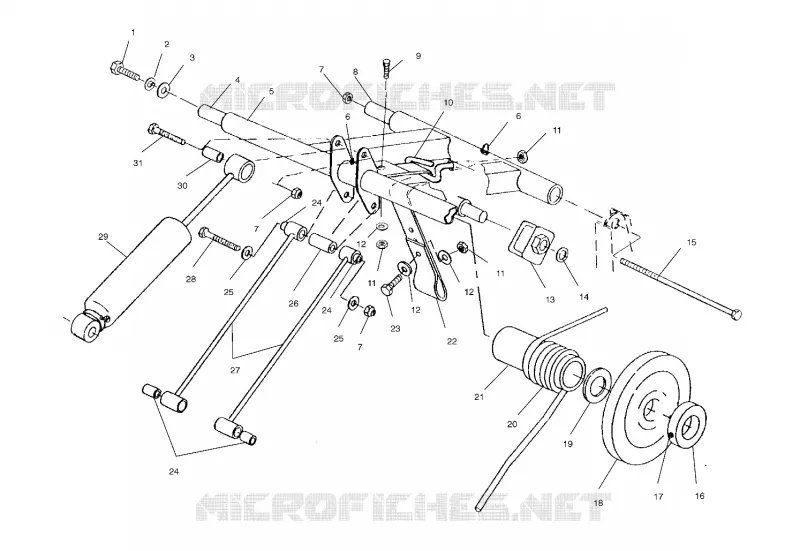

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
DRIVE CLUTCH
REAR TORQUE ARM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
6
7
7
7
8
9
10
11
11
11
12
12
12
13
14
15
16
17
18
18
18
19
20
20
21
22
23
24
24
24
25
25
26
27
28
29
30
31
1
BOLT
7517435
$22,56 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
4
SHAFT R.TORQUE UPPER
5131910
$167,99 Unit Price incl. VAT
5
ARM R.TORQUE BLK.
1541290067
Not Available
6
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
7
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
8
SHAFT
5333536
Not Available
9
SCR-RHCAR-5/16-18X0.75 GR5 ZY3
7512377
$9,44 Unit Price incl. VAT
10
BOLT EYE
7010050
Not Available
11
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
12
WASHER (10)
7555959
Not Available
13
ROLLER-SPRING ADJ SQ RMK SKS
5433211
Not Available
14
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
15
SCREW
7517232
$36,74 Unit Price incl. VAT
16
COLLAR-BRG LOCK (Euro)
5132381
$26,45 Unit Price incl. VAT
17
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
18
BEARING
3514303
$20,99 Unit Price incl. VAT
18
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
18
WHEEL CARRIER
1543023
Not Available
19
WASHER THRUST
7555787
$10,49 Unit Price incl. VAT
20
SPRNG-TRSN .405 SQ/77° LH BLK (Opt)
7041655067
Not Available
20
SPRNG-TRSN .405 SQ/77° RH BLK (Opt)
7041656067
Not Available
21
SLEEVE TORS.SPRING
5433007
Not Available
22
STRAP LIMITER (RR QA)
5411061
Not Available
23
BOLT
7512310
$4,19 Unit Price incl. VAT
24
BUSHING PIVOT TUBE
5020561
$2,61 Unit Price incl. VAT
25
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
26
SPACER
5333559
Not Available
27
ROD SHOCK (XTRA 10)133
1541021067
Not Available
28
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
29
SHOCK GAS R.TRACK
7041438
Not Available
30
Bushing .385 ID
5010422
$18,89 Unit Price incl. VAT
31
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
