1
Engine displacement
850
2
Year
2023
3
Trim
850 RMK KHAOS 146 SLASH
4
Parts Catalog
SUSPENSION, FRONT TORQUE ARM
5
Parts Diagram
Parts Catalog
SUSPENSION, REAR TORQUE ARM
by
SUSPENSION, RAIL BEAMS, LH/RH

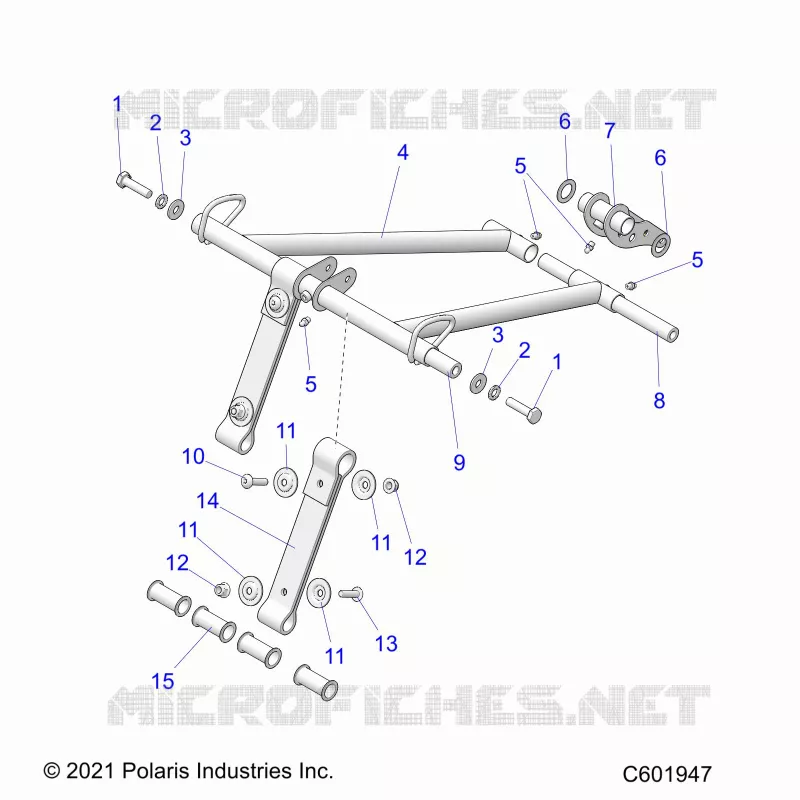

SUSPENSION, FRONT TORQUE ARM
1
1
2
2
3
3
4
5
5
5
6
6
7
8
9
10
11
11
11
11
12
12
13
14
15
1
SCR-HH M10X40 10.9 ZPC P80
7519223
$7,34 Unit Price incl. VAT
2
WSHR-M10 SPRING LOC ZPC
7556558
$4,19 Unit Price incl. VAT
3
WSHR-M10.5X25X2.4 ZPC
7556559
$6,29 Unit Price incl. VAT
4
ARM TORQUE FRONT BLACK
1543734329
$404,24 Unit Price incl. VAT
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
WASHER
7556581
$7,34 Unit Price incl. VAT
7
ARM SHOCK PIVOT
1542765329
$104,99 Unit Price incl. VAT
8
SHAFT CROSS
5137418
$62,99 Unit Price incl. VAT
9
SHAFT-20.32 X 391.41 HOLLOW
5138059
$115,49 Unit Price incl. VAT
10
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$11,54 Unit Price incl. VAT
11
WASHER DOMED
7556491
$10,49 Unit Price incl. VAT
12
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
13
SCREW M8x30 TR/TX
7518953
$3,14 Unit Price incl. VAT
14
STRAP LIMITER
5416970
$47,24 Unit Price incl. VAT
15
BUSHING-18x20x48 FLNG
5438921
$34,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
