Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 CREW - R11WH50AG/AH/AR
4
Parts Catalog

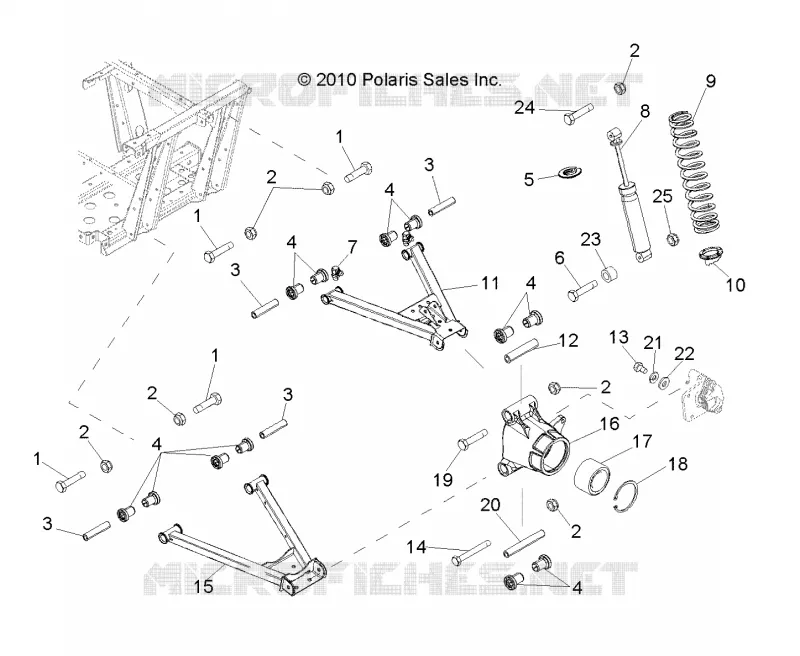

REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS (BUILT 9/27/10 AND BEFORE)
REAR SUSPENSION
1
1
1
1
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
17
18
19
20
21
22
23
24
2
1
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
2
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
3
Tube Pivot
5335448
5137591
$10,49 Unit Price incl. VAT
4
Bushing A-Arm. Short Black [TO 9/9/2023]
5438895
5439270
$4,19 Unit Price incl. VAT
5
RETAINER-SPRING STEEL
5251753
$19,94 Unit Price incl. VAT
6
Bolt Flange
7518610
$41,99 Unit Price incl. VAT
7
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
8
Shock Rear
7043548
Not Available
9
Spring Rear Matte Black
7043664458
Not Available
10
CAM-ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
11
Arm Control Upper Matte# Black [Built 11/20/09 and After]
1017727458
1018189-458
$209,99 Unit Price incl. VAT
11
ARM CONTROL UPPER MATTE BLACK
1018189458
$209,99 Unit Price incl. VAT
12
Shaft A-Arm Upper Rear
5136580
5137592
$12,59 Unit Price incl. VAT
13
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
14
BOLT FLANGED
7518562
$13,64 Unit Price incl. VAT
15
ARM CONTROL LOWER MATTE BLACK
1018190458
$209,99 Unit Price incl. VAT
15
Arm Control Lower Matte# Black [Built 11/20/09 and After]
1017728458
1018190-458
$209,99 Unit Price incl. VAT
16
Carrier Bearing Wheel [RH]
5134531
$182,69 Unit Price incl. VAT
16
Carrier Bearing Wheel LH
5134741
$182,69 Unit Price incl. VAT
17
BEARING-WHEEL 40X74X40MM
3514635
$73,49 Unit Price incl. VAT
18
RING-RETAINING 2.875 INTERNAL
7710440
$18,89 Unit Price incl. VAT
19
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
$13,64 Unit Price incl. VAT
20
Shaft A-Arm Lower Rear
5136581
5137593
$12,59 Unit Price incl. VAT
21
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
22
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
23
SPACER-.625X.407X.300
5334945
$7,34 Unit Price incl. VAT
24
SCR-HXFL-M10X1.25X60 8.8 ZOD
7518563
$5,76 Unit Price incl. VAT
25
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
