1
Engine displacement
1000
2
Year
2017
3
Trim
RANGER CREW XP 1000 EPS ALL OPTIONS
4
Parts Catalog

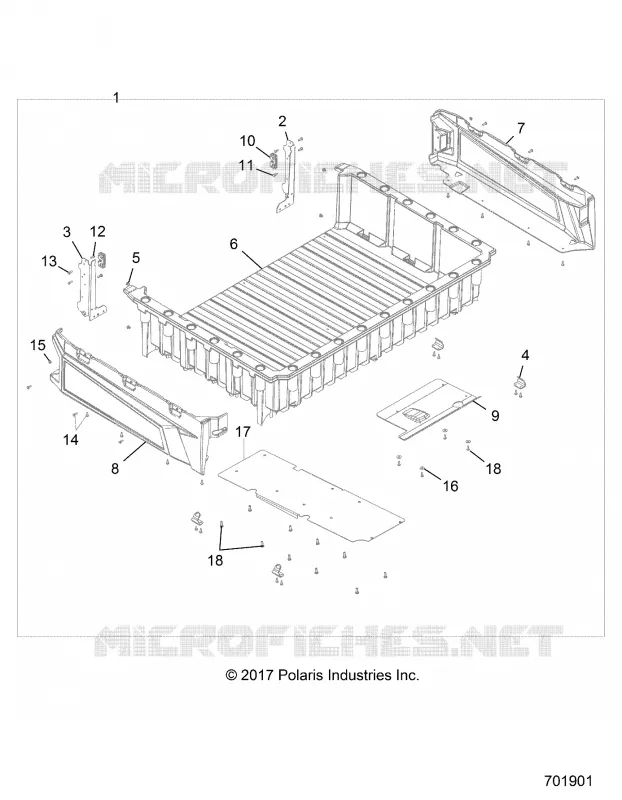

CARGO BOX
5
Parts Diagram
Parts Catalog
REAR BODYWORK BUMPER
by
CARGO BOX
8
9
10
11
12
13
14
15
16
17
18
18
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
WELD-TAILGATE SUPPORT LH BLK
1021456067
$89,24 Unit Price incl. VAT
3
WELD-TAILGATE SUPPORT RH BLK
1021458067
$104,99 Unit Price incl. VAT
4
BRKT-BOX TIE DOWN
5255204
$16,79 Unit Price incl. VAT
5
BUMPER RUBBER 13.50 DIA X4.3 THK
5414486
$5,24 Unit Price incl. VAT
6
K-ASM BOX CARGO RGR XP
2207134
Not Available
7
PANEL BOX SHORT LH BLACK
5439111070
$314,99 Unit Price incl. VAT
8
PANEL-BOX SHORT RH BLK
5439112070
$314,99 Unit Price incl. VAT
9
SHIELD-HEAT FOIL BOX RGR
5814456
$104,99 Unit Price incl. VAT
10
LATCH-SLAM TAILGATE
7081568
$62,99 Unit Price incl. VAT
11
SCR-TXTH-M6X1.0X25 RIE SHDR
7519942
$9,44 Unit Price incl. VAT
12
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
13
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
14
SCR-TXPH-#14 X .75 HI-LO RIE
7519731
$7,34 Unit Price incl. VAT
15
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
16
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
17
SHIELD-BOX CARGO
5262966
$141,74 Unit Price incl. VAT
18
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
