1
Engine displacement
800
2
Year
2013
3
Trim
RZR S 800 EFI INTL/ISRAEL - R13VE76FX/FI
4
Parts Catalog

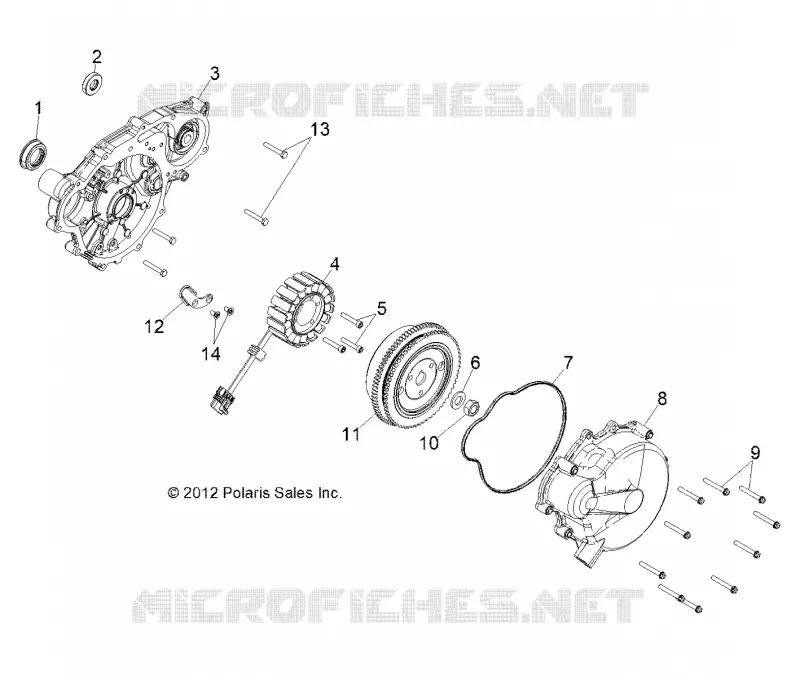

ENGINE, STATOR AND FLYWHEEL
5
Parts Diagram
Parts Catalog
TRANSMISSION MOUNTING
by
WIRE HARNESS
ENGINE, STATOR AND FLYWHEEL
1
2
3
3
4
5
6
7
8
8
9
10
11
12
13
14
1
SEAL FLANGED
5412881
$57,74 Unit Price incl. VAT
2
SEAL OIL
5412455
$41,99 Unit Price incl. VAT
3
PIN DOWEL
7661946
7663002
$9,44 Unit Price incl. VAT
3
ASM. ENGINE COVER [INCL. PINS]
1204712
$404,24 Unit Price incl. VAT
4
STATOR
4014034
$913,49 Unit Price incl. VAT
5
SCR-M6X1.0X35 SOC/CP-Y/D
7517848
$10,49 Unit Price incl. VAT
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
SEAL STATOR COVER
5413972
$7,34 Unit Price incl. VAT
8
BUSHING
3514553
Not Available
8
ASM. COVER STATOR [INCL. BUSHING]
1204144
$335,99 Unit Price incl. VAT
9
SCREW
7519209
$7,34 Unit Price incl. VAT
10
NUT
7547213
$9,44 Unit Price incl. VAT
11
FLYWHEEL
4013968
$565,94 Unit Price incl. VAT
12
BRACKET STATOR WIRE HOLDDOWN
5256627
$62,99 Unit Price incl. VAT
13
SCR-M6X1.00X40-HX/FL-Y/D [A15B1 B7]
7516818
$10,49 Unit Price incl. VAT
14
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
