1
Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN X2 800 EFI - A09TN76AL/AX/AZ
4
Parts Catalog

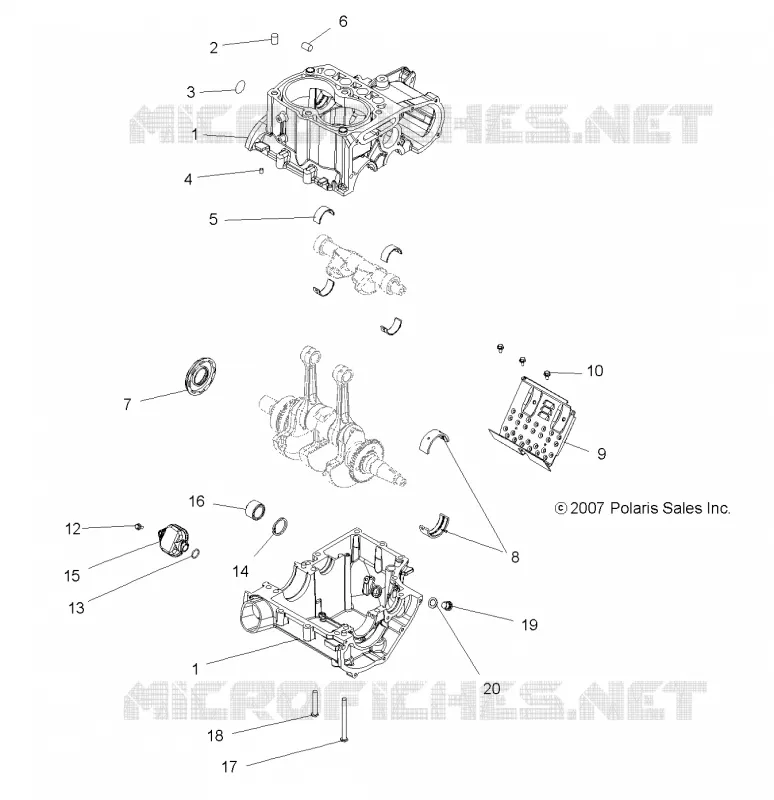

CRANKCASE
5
Parts Diagram
Parts Catalog
SWITCHES AND SENSORS AND ECM
by
ENGINE, CRANKSHAFT AND BALANCE SHAFT
CRANKCASE
1
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
1
Kit Crankcase
2203300
Not Available
2
DOWEL
7661175
$10,49 Unit Price incl. VAT
3
PLUG-EXPANSION 19MM
7051530
$15,74 Unit Price incl. VAT
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
BEARING
5132753
Not Available
6
PLUG EXPANSION 13MM
7052288
Not Available
7
SEAL FLANGE
5412676
$73,49 Unit Price incl. VAT
8
BEARING
3585704
$40,94 Unit Price incl. VAT
9
PLATE BAFFLE
5211785
$73,49 Unit Price incl. VAT
10
SCREW-M5X.80X10-HX/FL-Y/D
7518045
$19,94 Unit Price incl. VAT
12
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
13
SEAL O-RING
5812016
$5,76 Unit Price incl. VAT
14
RING RETAINING
7710512
$7,34 Unit Price incl. VAT
15
ASM. OIL PICKUP
1202663
$104,99 Unit Price incl. VAT
16
PLUG EXPANSION 42MM
3060004
$31,49 Unit Price incl. VAT
17
SCREW
7517792
$4,19 Unit Price incl. VAT
18
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
19
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
20
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
