REAR SUSPENSION for POLARIS SPORTSMAN 500 EFI INTL - A07MH50FC from 2007

FRONT SUSPENSION STRUT

TURN SIGNALS / HORN / MIRRORS

REAR SUSPENSION

1

CARRIER-BEARING WHEEL (MACH)

5135563

$121,79 Unit Price incl. VAT

2

Bushing

5631142

$41,99 Unit Price incl. VAT

3

Bushing Control Lower

5434550

$8,39 Unit Price incl. VAT

4

WASHER FLAT

7555740

$3,14 Unit Price incl. VAT

5

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

6

Screw

7517873

$4,19 Unit Price incl. VAT

7

SCREW

7515415

$2,09 Unit Price incl. VAT

8

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

9

SHOCK REAR

7043100

$167,99 Unit Price incl. VAT

10

Cam Adjusting Spring

5630551

$68,24 Unit Price incl. VAT

11

Spring Compression Rear Black [AC](If built before 9/06/04)

7043091067

$167,99 Unit Price incl. VAT

12

Retainer Spring

5631887

$19,94 Unit Price incl. VAT

13

BOLT Substituted by 7515491

7515433

$3,14 Unit Price incl. VAT

14

Bracket A-Arm Pivot (If built after 5/05/03)

5247345

Not Available

15

Bolt Hex Flange

7518364

$3,14 Unit Price incl. VAT

16

Shaft A-Arm. Short

5020826

$23,09 Unit Price incl. VAT

17

Arm Control Upper Black LH

1014320067

$178,49 Unit Price incl. VAT

17

Arm Control Upper Black RH

1014321067

$178,49 Unit Price incl. VAT

18

Bushing A-Arm Long

5434551

$9,44 Unit Price incl. VAT

19

WASHER-SPRING-LOCK

7552603

$1,56 Unit Price incl. VAT

20

SCREW

7512492

$2,09 Unit Price incl. VAT

21

Arm Control Lower Black LH

1015117067

$225,74 Unit Price incl. VAT

21

Arm Control Lower Black RH

1015118067

$225,74 Unit Price incl. VAT

22

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

23

SHIELD CV REAR RH MATTE BLACK

5435009070

$47,24 Unit Price incl. VAT

23

SHIELD CV REAR LH MATTE BLACK

5435008070

$47,24 Unit Price incl. VAT

24

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

25

Shaft A-Arm

5133806

$52,49 Unit Price incl. VAT

26

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

27

Bushing A-Arm Short

5434548

$4,19 Unit Price incl. VAT

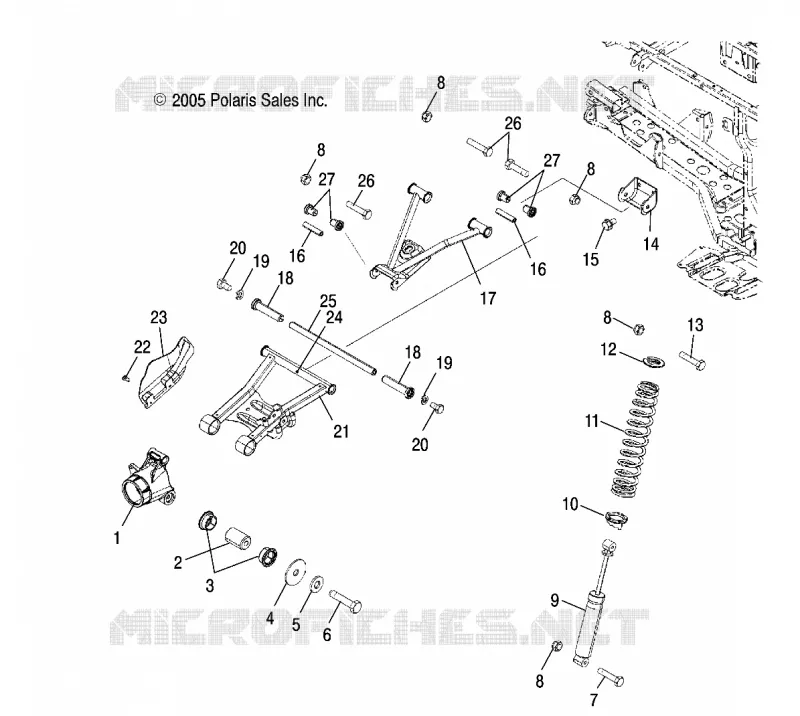

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
