ENGINE, AIR INTAKE SYSTEM FOR RANGER 902 DIESEL EU / TRACTOR / APLA FROM 2021

ENGINE, ADAPTER, BELLHOUSING AND CRANK SENSOR

ENGINE, CAMSHAFT AND IDLE GEAR SHAFT

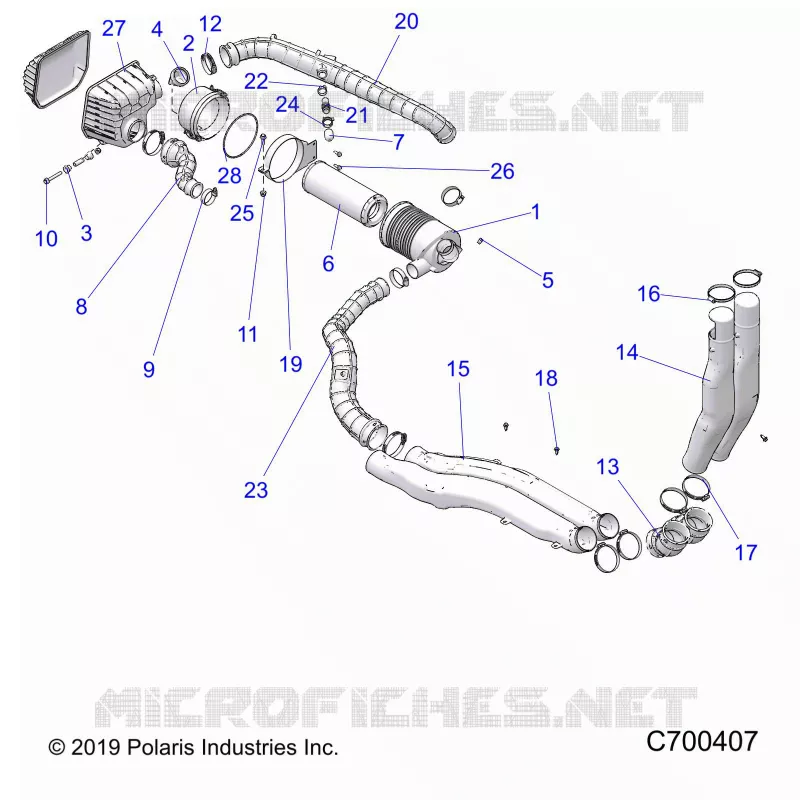

ENGINE, AIR INTAKE SYSTEM

-

ASM-AIR INTAKE DONALDSN SEALED [INCL. 1 2 5 6 27 28]

1241397

Not Available

1

ASM. AIRBOX MAIN

1240700

$220,49 Unit Price incl. VAT

2

ASM. LID AIRBOX

1240701

$104,99 Unit Price incl. VAT

3

BUSHING-MOUNT

5414719

$5,24 Unit Price incl. VAT

4

CAP AIRBOX

5456464

$6,29 Unit Price incl. VAT

5

PLUG AIRBOX

5439688

$20,99 Unit Price incl. VAT

6

FILTER AIRBOX

7082087

$57,63 Unit Price incl. VAT

7

CAP-RUBBER .75 ID X 1.00

5416499

$15,74 Unit Price incl. VAT

8

HOSE-INTAKE ENGINE

5416695

$62,99 Unit Price incl. VAT

9

CLAMP HOSE S.S.(10)

7080451

$13,64 Unit Price incl. VAT

10

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$7,34 Unit Price incl. VAT

11

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

12

CLAMP-HOSE SLOTTED 60-80 DIA

7082509

$9,44 Unit Price incl. VAT

13

HOSE-JOINT

5416135

$83,99 Unit Price incl. VAT

14

DUCT-TUNNEL

5453765

$125,99 Unit Price incl. VAT

15

DUCT-INTAKE FRONT

5453766

$89,24 Unit Price incl. VAT

16

CLAMP-BAND NARROW 70-90MM

7081279

$5,76 Unit Price incl. VAT

17

CLAMP-HOSE SLOTTED 75-90 DIA

7082314

$19,94 Unit Price incl. VAT

18

RIVET-TUFLOK .315-.325X.787 ?

7661855

$2,09 Unit Price incl. VAT

19

WELD-MOUNT AIRBOX

1024174

$83,99 Unit Price incl. VAT

20

HOSE-INTAKE POST-FILTER

5416872

Not Available

21

FITTING-3/4 DOUBLE BARB

7052726

$15,00 Unit Price incl. VAT

22

CLAMP-HOSE

7081903

$13,64 Unit Price incl. VAT

23

HOSE-INTAKE PRE-FILTER

5416694

$115,49 Unit Price incl. VAT

24

SPRINGBAND-CLAMP 27/12 GREEN

7080841

$13,64 Unit Price incl. VAT

25

BOLT-M8X1.25X25 HXFLG-OLIVE D

7518514

$3,14 Unit Price incl. VAT

26

SCR-M6X1.0X20 HXHD FLG TDFM BK

7518529

$2,09 Unit Price incl. VAT

27

WELD-INTAKE PLENUM

1241407

$73,49 Unit Price incl. VAT

28

SEAL AIRBOX COVER

5456465

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
