1
Engine displacement
650
2
Year
1989
3
Trim
FIN 650 SKS - F890558
4
Parts Catalog

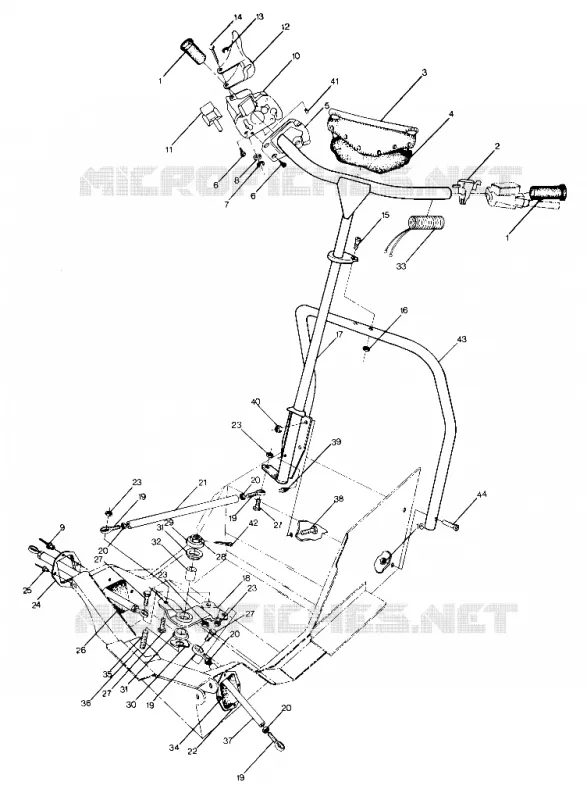

STEERING 400, 500, 500 CLASSIC AND 650 (4915411541011A)
5
Parts Diagram
Parts Catalog
BRAKE CHAINCASE ALL SWEDISH INDY MODELS (4916051605005A)
by
DRIVEN CLUTCH 400, 500, 500 CLASSIC AND 650 UPDATED 10/88 (4915411541013A)
STEERING 400, 500, 500 CLASSIC AND 650 (4915411541011A)
1
GRIP H#BAR BLACK Substituted by 5410272-067
5410272
Not Available
2
SWITCH DIMMER
4110040
Not Available
3
DESC NOT_AVAILABLE
2690025
Not Available
3
COVER H#BAR(500CLASSIC) [No Longer Available] (500 Classic Only)
2690029
Not Available
3
COVER HANDLEBAR PAD [No Longer Available] (400 Only)
2690021
Not Available
3
COVER HANDLEBAR (400 600 600 SE)
2690014
Not Available
3
PAD H#BAR(SWED.650) [No Longer Available] (650 SKS)
2690032
Not Available
3
DESC NOT_AVAILABLE (400)
2690024
Not Available
3
DESC NOT_AVAILABLE (500 Classic)
2690031
Not Available
4
PAD HANDLEBAR (INDY) [No Longer Available]
5810265
Not Available
5
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
6
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
7
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RIVET (50) Substituted by 7621307
7621302
Not Available
10
BLOCK THROTTLE Substituted by 5431265
5431076
5431592
$73,49 Unit Price incl. VAT
11
SWITCH-AUX.SHUT OFF
4110056
Not Available
12
LEVER-THROTTLE
5430652
Not Available
12
LEVER-THROTTLE (600 600 SE)
5430638
Not Available
13
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
13
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
14
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
15
SCREW(10) Substituted by 7512183
7512121
Not Available
16
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
17
POST STEERING Substituted by 1823129-067
1823129
Not Available
17
POST STEERING Substituted by 1823128-067 (600 600 SE)
1823128
Not Available
18
STEERING ARM CTR. Substituted by 1822040-067
1822040
Not Available
18
ARM STEERING CTR. Substituted by 1822047-067 (600 600 SE)
1822047
Not Available
19
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
19
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
20
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
20
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
21
ROD-DRAG LINK
5332712
Not Available
22
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
23
Nut
7542403
Not Available
24
PLATE RH BOOT SEAL
5210904
Not Available
25
RIVET(50)
7621301
Not Available
26
BOOT-TIE ROD
5410328
Not Available
27
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
28
NUT(10)
7542712
$17,84 Unit Price incl. VAT
29
WASHER
7555721
$2,09 Unit Price incl. VAT
30
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
31
BUSHING
3563907
$7,34 Unit Price incl. VAT
32
BUSHING-SPACER
5010161
Not Available
33
HEATER H#BAR HI-LOW (500 Classic & 650 Only}
2460276
Not Available
34
BOOT LH
5410388
Not Available
35
BOLT(10)
7512658
Not Available
36
BLOCK-CTR.STEERING
5130534
Not Available
37
ROD-TIE Substituted by 5332713-067
5332713
Not Available
38
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
39
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
40
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
41
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
42
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
43
HOOP STEERING Substituted by 1011513-067 (400 600 600 SE)
1011513
Not Available
44
BOLT-CARRIAGE(10)
7512262
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
