1
Engine displacement
700
2
Year
2001
3
Trim
700 EV XC SP EDGE
4
Parts Catalog
CYLINDER
5

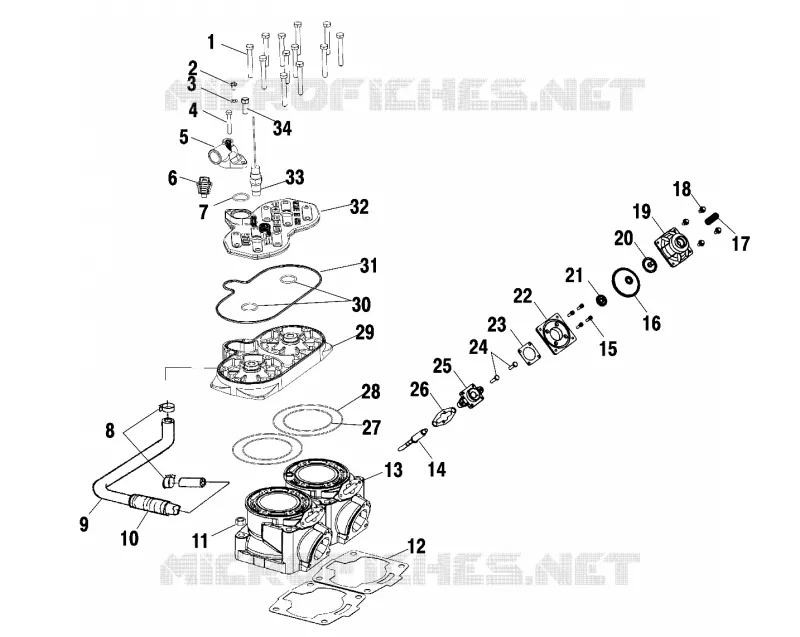

Parts Diagram
Parts Catalog
CRANKCASE
by
MAGNETO
CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
SCREW M8X1.25X60(10)
7517534
$8,39 Unit Price incl. VAT
2
SCREW
7517679
$25,19 Unit Price incl. VAT
3
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
4
SCR-M6X1.00X40-HX/FL-Y/D [A15B1 B7]
7516818
$10,49 Unit Price incl. VAT
5
COVER-THERMOSTAT M6 BLEED LG
5630992
Not Available
6
THERMOSTAT-120°F W/O BYPASS
7052258
7052433
$89,24 Unit Price incl. VAT
7
O-RING
5411521
$36,74 Unit Price incl. VAT
8
CLAMP-3 TONG .810-.970(10)
7080810
$4,19 Unit Price incl. VAT
9
HOSE BYPASS
5411536
Not Available
10
CONDUIT FLEX(.75#ID)
552139896
$9,23 Unit Price incl. VAT
11
NUT-M10X1.25-HX/FL
7547013
$3,14 Unit Price incl. VAT
12
GASKET CYL.BASE
5811538
Not Available
13
CYLINDER-81MM SNO EV
3021283
Not Available
14
ASM-VALVE GUILLOTINE
1202091
Not Available
15
SCREW(10)
7517314
Not Available
16
BELLOWS-EXHAUST VALVE DOM
5412056
5414495
$89,24 Unit Price incl. VAT
17
SPRNG CMP GEN3.5 EV RD/WHT
704178601
$25,08 Unit Price incl. VAT
18
SCR-M6X1.0X16.0 HX/FL-Y/D
7516820
$10,49 Unit Price incl. VAT
19
HOUSING-BELLOWS EXH VALVE DOM
5434175
1202640
$27,29 Unit Price incl. VAT
20
CAP EXH VALVE
5631152
5631687
$52,49 Unit Price incl. VAT
21
WASHER-BELLOWS EXH VALVE DOM
5132950
5135163
$8,39 Unit Price incl. VAT
22
BELLOW ADP GEN 3.5 EV
5132187
Not Available
23
GASKET HOUSING EV
5433375
Not Available
24
SCR-M6X1.0X25-HX/FL-Y/D
7516823
$5,76 Unit Price incl. VAT
25
ASM-EV 3.5 HSNG W/BUSH H.DOWEL
1201919
Not Available
26
GASKET GEN 3.5 EV BASE
5812087
$15,00 Unit Price incl. VAT
27
O-RING-3.489X3.629X.07 HI-TMP
5410932
$36,74 Unit Price incl. VAT
28
O-RING
5410931
5412232
$11,54 Unit Price incl. VAT
29
HEAD-CYL 81MM TWIN SNOW EV
3021210
Not Available
30
O-RING(10)
5410917
$1,56 Unit Price incl. VAT
31
SEAL RUBBER MLDD HEAD
5411294
Not Available
32
CVR HD 81MM TWN SNO FIRED
5631048093
Not Available
33
SENSOR-THERMISTOR TEMP VARRES Substituted by 4010614
4010251
$73,49 Unit Price incl. VAT
34
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
