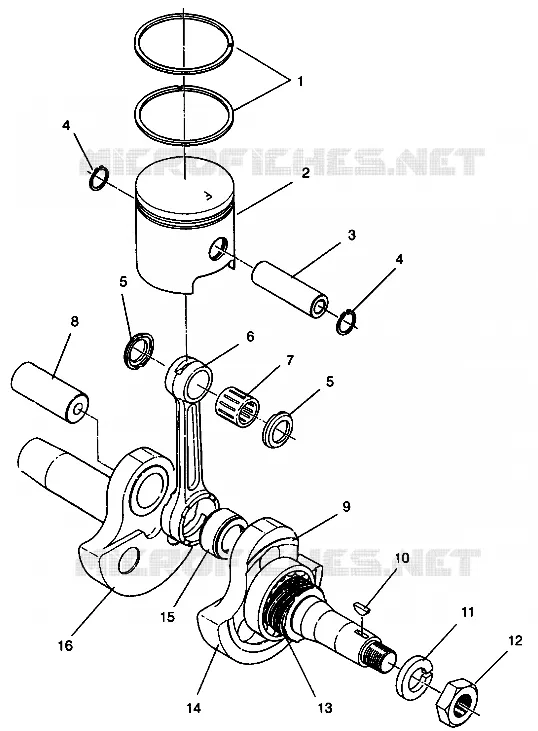

PISTON CRANKSHAFT STARLITE GT 0943127 (49250125010035)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT LITE GT 0943133 (49250125010034)
by
CARBURETOR LITE GT 0943133 (49250125010036)
PISTON CRANKSHAFT STARLITE GT 0943127 (49250125010035)
1
RING PISTON
3080259
Not Available
1
RING PISTON (.020 Oversize)
3081724
Not Available
2
PISTON
3083023
Not Available
2
PISTON (.020 O/S) (.020 Oversize)
3084316
Not Available
3
PIN PISTON
3083512
$26,45 Unit Price incl. VAT
4
CLIP PISTON PIN (10)
3083682
Not Available
5
SPACER PISTON PIN
3083415
Not Available
6
ROD CONNECTING
3082790
Not Available
7
BEARING
3081629
$25,61 Unit Price incl. VAT
8
CRANK PIN PTO
3082796
Not Available
9
BEARING BALL
3084580
Not Available
10
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
11
WASHER SPRING
3080772
Not Available
12
NUT
3080639
Not Available
13
GEAR CRANKSHAFT Substituted by 3083745
3083414
Not Available
14
CRANKSHAFT #1
3083845
$358,04 Unit Price incl. VAT
14
CRANKSHAFT (Incl. 2 & 3)
3083413
$410,54 Unit Price incl. VAT
15
BEARING LGE.END
3083803
Not Available
16
CRANKSHAFT #2
3083846
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
