1
Engine displacement
0
2
Year
1996
3
Trim
LITE DELUXE - 0963431
4
Parts Catalog
FRONT SUSPENSION AND SKI LITE 0963433, EURO LITE E963433 AND LITE DELUXE 09 (4931663166B001)
5
Parts Diagram
Parts Catalog
BATTERY BOX LITE DELUXE 0963431 (4931663166A014)
by
STEERING LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166B003)

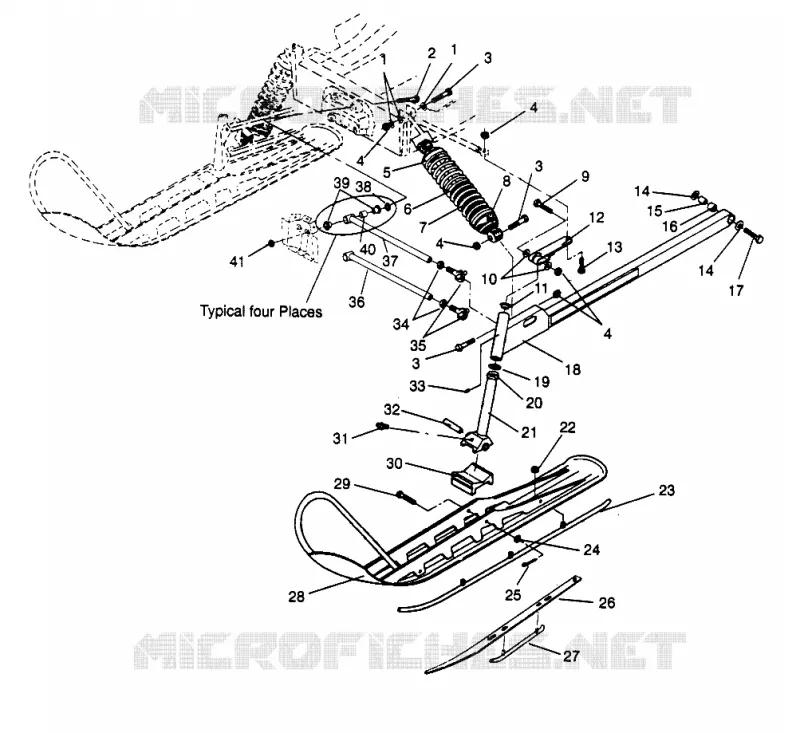

FRONT SUSPENSION AND SKI LITE 0963433, EURO LITE E963433 AND LITE DELUXE 09 (4931663166B001)
1
WASHER
7555806
$1,56 Unit Price incl. VAT
2
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
3
BOLT(10) Substituted by 7515415
7515515
$2,09 Unit Price incl. VAT
4
NUT FLEXLOC B(10) Substituted by 7542403
7542456
Not Available
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
SPRING COMPRESSION BLACK
7041261067
$246,74 Unit Price incl. VAT
7
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
8
SHOCK FR.SUSP.
7041284
Not Available
9
BOLT(10) Substituted by 7517583
7515491
7515433
$3,14 Unit Price incl. VAT
10
WASHER(10) Substituted by 7555832
7555851
7555832
$4,19 Unit Price incl. VAT
11
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
12
ARM STEERING
5220326067
Not Available
13
BOLT Substituted by 7512404
7515490
$7,34 Unit Price incl. VAT
14
WASHER
7555721
$2,09 Unit Price incl. VAT
15
TUBE TRAILING ARM
5010187
Not Available
16
PIVOT-TRAILING ARM
5410382
Not Available
17
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
18
ARM RH TRLG BLK.
1823137067
Not Available
18
ARM LH TRLG BLK.
1823136067
Not Available
19
BUSHING
7556509
$3,14 Unit Price incl. VAT
20
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
21
SPINDLE BLK.
6230073067
Not Available
22
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
23
SKAG SHORT(20) (Sport)
1820267
$40,94 Unit Price incl. VAT
24
NUT CASTLE(10) Substituted by 7542438
7542457
7542438
$3,14 Unit Price incl. VAT
25
PIN COTTER(10) Substituted by 7661205
7661209
7661205
$1,56 Unit Price incl. VAT
26
PLATE SKAG
1011829067
$74,54 Unit Price incl. VAT
27
SKAG Substituted by 1820318-067 (440)
1820318
1820318-067
$68,24 Unit Price incl. VAT
28
SKI BLK (LITE) Substituted by 1820333-067
1820333
Not Available
29
BOLT(10)
7515462
$15,74 Unit Price incl. VAT
30
STOP RUBBER
5521231
Not Available
31
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
32
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
33
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
34
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
35
ROD END RH WIDEBORE Substituted by 7061069
7060157
Not Available
36
ROD RAD LOW.BLK.
1822128067
Not Available
37
ROD RAD UP. BLK.
1822129067
Not Available
38
WASHER-.390X.940X.030-FL-Y
7555797
$7,34 Unit Price incl. VAT
39
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
40
BUSHING
5010252
$2,61 Unit Price incl. VAT
41
Nut
7542403
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
