1
Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 EFI - R11RH50AG/AH/AR
4
Parts Catalog
BATTERY
5

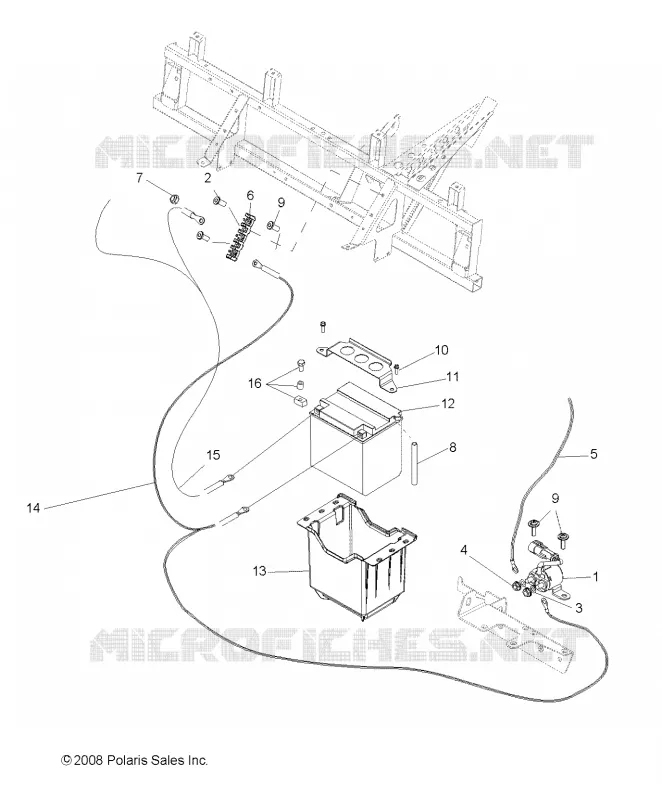

Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
ELECTRICAL, INSTRUMENTS CONTROLS
BATTERY
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
SOENOID STARTER C1100 [INCL 2][A2]
4012001
4081641
$59,84 Unit Price incl. VAT
2
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
4
NUT-HXFLGHD M6 SERRATED
7547270
$7,34 Unit Price incl. VAT
5
Cable Solenoid/Starter
4012340
$57,74 Unit Price incl. VAT
6
BLOCK TERMINAL 3 POST
4011892
$62,99 Unit Price incl. VAT
7
NUT-M5X.8 HX NYL-Y
7546601
$2,09 Unit Price incl. VAT
8
TUBE-BATTERY VENT 305MM
5435030
$9,44 Unit Price incl. VAT
9
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
10
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
11
Bracket Battery Strap
5253552
$73,49 Unit Price incl. VAT
12
BATTERY-14AH DRY W/O ACID
4012622
4010774
$178,49 Unit Price incl. VAT
13
Box Battery
5434037
$47,24 Unit Price incl. VAT
14
CABLE-BATT TO SOLENOID/TERMINA
4011497
$83,99 Unit Price incl. VAT
15
Cable Ground Split
4012339
$83,99 Unit Price incl. VAT
16
KIT-BATTERY BOLT 14AH RANGER
2204132
$40,94 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
