Engine displacement
500
2
Year
2011
3
Trim
RANGER 4X4 500 EFI - R11RH50AG/AH/AR
4
Parts Catalog

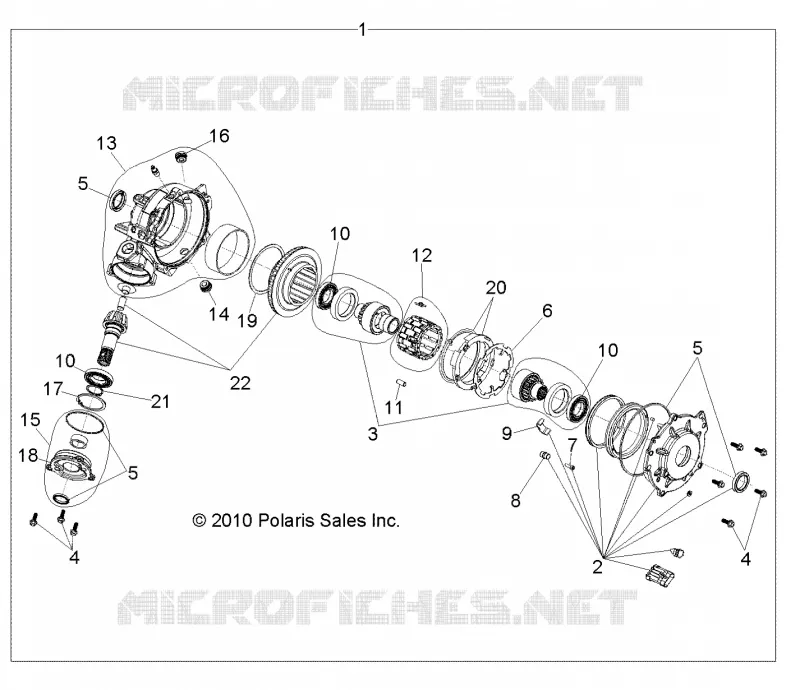

DRIVE TRAIN, FRONT GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT DRIVE SHAFT
by
DRIVE TRAIN, MAIN GEARCASE INTERNAL
DRIVE TRAIN, FRONT GEARCASE INTERNALS
1
2
3
4
4
5
5
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
Asm. Front Gearcase [Incl. All][Built 3/05/10 and After]
1332773
$3 008,24 Unit Price incl. VAT
2
ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]
3235162
3236663
$955,49 Unit Price incl. VAT
3
KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]
3234936
3236672
$860,99 Unit Price incl. VAT
4
Kit Bolt [Incl. 8 Bolts]
3234405
$52,49 Unit Price incl. VAT
5
Kit Seal Repair [Incl. 6 8 22 23]
3234406
$136,49 Unit Price incl. VAT
6
PLATE ARMATURE
3234407
$209,99 Unit Price incl. VAT
7
SET SCREW
3234408
$52,49 Unit Price incl. VAT
8
Asm. Button Thrust
3234594
Not Available
9
Plate Thrust
3235183
$115,49 Unit Price incl. VAT
10
BEARING
3234390
$60,89 Unit Price incl. VAT
11
KIT ROLLER [INCL. COMPLETE SET OF 20 ROLLERS]
3234393
$10,49 Unit Price incl. VAT
12
Asm. Roll Cage
3234907
$640,49 Unit Price incl. VAT
12
ASM. ROLL CAGE ALUM [HIGH PERFORMANCE ACCESSORY W/CLIP SET]
3235262
$1 065,74 Unit Price incl. VAT
13
Asm. Gearcase [Incl. 8 29 35 36]
3234411
Not Available
14
ASM. DRAIN PLUG MAGNETIC
3234412
$83,99 Unit Price incl. VAT
15
Asm. Cover Input
3234463
3235337
$241,49 Unit Price incl. VAT
16
PLUG OIL FILL
3234414
3233942
$62,99 Unit Price incl. VAT
17
Ring Retaining Internal [TO 5/15/2022]
3234416
$19,94 Unit Price incl. VAT
18
Cover Input
3234418
3235337
$241,49 Unit Price incl. VAT
19
SPACER-RING GEAR
3234437
$36,74 Unit Price incl. VAT
20
SPRING TORSION RETAINER
3234908
$173,24 Unit Price incl. VAT
21
RING RETAINING EXTERNAL
3235177
$11,54 Unit Price incl. VAT
22
Asm. Ring and Pinion Gear [Incl. Ring Gear Sub Asm. Pinion Gear Dowel Pin]
3235189
$1 186,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
