1
Engine displacement
500
2
Year
2003
3
Trim
500 MAGNUM 4X4 HDS - A03CD50FB
4
Parts Catalog

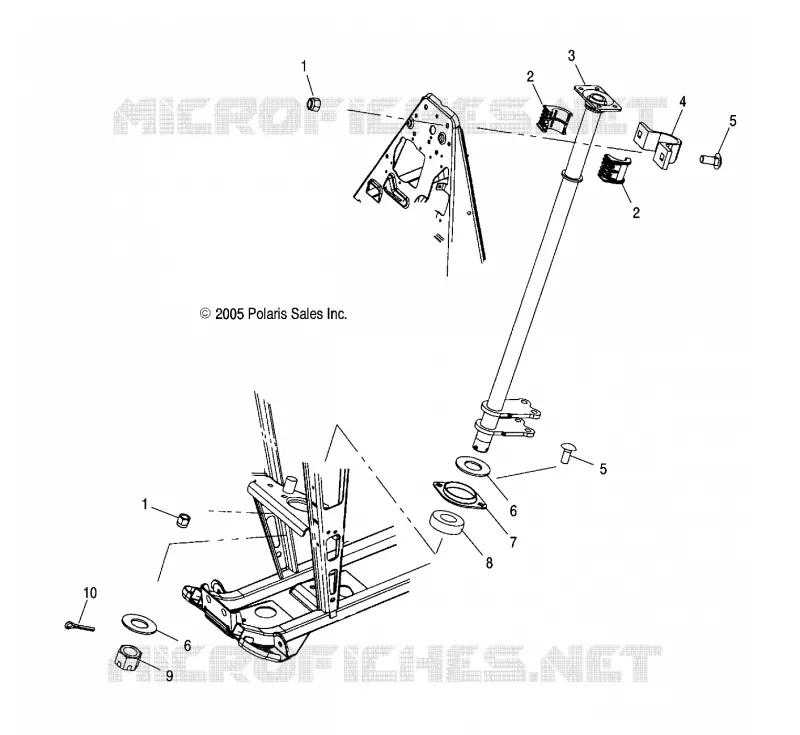

STEERING POST
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
GEARCASE
STEERING POST
1
1
2
2
3
4
5
5
6
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
5
6
7
8
1
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
2
Bushing Steering Upper
5433866
5439731
$12,59 Unit Price incl. VAT
3
Post Steering
1013920067
2202825
$419,99 Unit Price incl. VAT
4
Bracket Bushing Steering Upper
5246732
5257028
$62,99 Unit Price incl. VAT
5
SCR-RHCAR-5/16-18X0.75GR5ZY3
7517428
$4,19 Unit Price incl. VAT
6
BUSHING-1X1 1/2X .145
7556162
$7,34 Unit Price incl. VAT
7
FLANGETTE 2 BOLT
5222393
5270869
$36,74 Unit Price incl. VAT
8
Bearing
3514352
3514617
$54,59 Unit Price incl. VAT
9
Nut Slotted Hex
7547158
Not Available
10
Pin Cotter
7661633
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
