1
Engine displacement
1000
2
Year
2023
3
Trim
RZR XP 4 1000 SPORT
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
by
DRIVE TRAIN, HALF REAR SHAFT

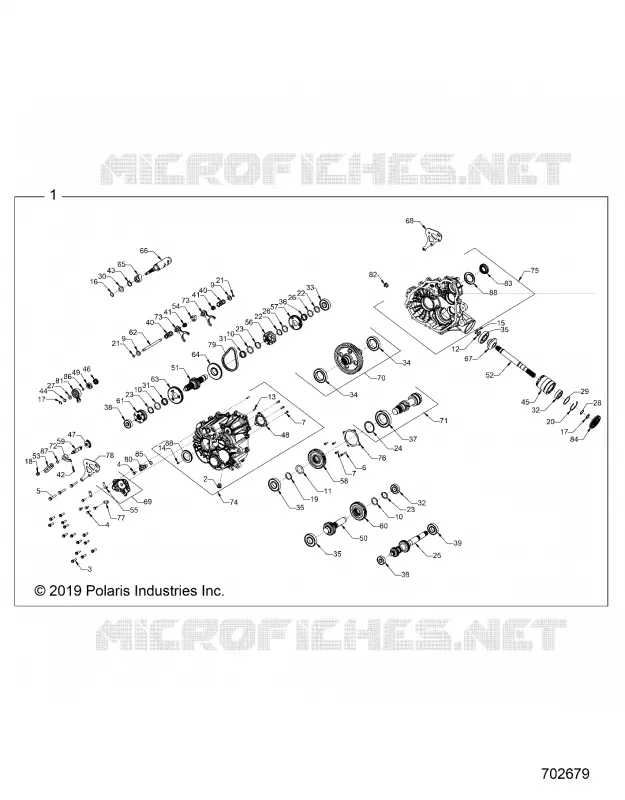

DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
2
3
4
4
5
6
7
7
9
9
10
10
10
11
12
13
14
15
16
17
17
18
19
20
21
21
22
22
23
23
23
24
25
26
26
27
28
29
30
31
31
32
32
33
34
34
35
35
35
36
37
38
38
39
40
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
88
1
ASM-GEARCASE COMPLETE
1334347
$7 297,49 Unit Price incl. VAT
2
PLUG-SOCKET HEAD W/MAG M18X1.5
3234756
$57,74 Unit Price incl. VAT
3
SCREW HEX FLANGE HEAD M8 X 1.25 X 30
3234898
$17,84 Unit Price incl. VAT
4
SCREW HEX FLANGE HEAD M6 X 1 X 20
3235206
$13,64 Unit Price incl. VAT
5
SCREW HEX FLANGE M8 X 50
3235207
$19,94 Unit Price incl. VAT
6
SCREW SOCKET HEAD CAP M6 X 1.0 X 40
3235208
$20,99 Unit Price incl. VAT
7
SCREW SOCKET HEAD CAP M6 X 1.0 X 18
3235332
$7,34 Unit Price incl. VAT
9
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
10
WASHER-32.3X42X1.5(115288)
3235211
$19,94 Unit Price incl. VAT
11
WASHER-35.6X57X1.5(115289)
3235212
$25,19 Unit Price incl. VAT
12
WASHER 22.5 X 30 X 1.5
3236410
$14,69 Unit Price incl. VAT
13
PIN DOWEL 6 X 20
3234330
$13,64 Unit Price incl. VAT
14
PIN SPRING SLOTTED 6 X 12
7043746
$15,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
16
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
17
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
18
RING RETAINING BASIC EXTERNAL
3233834
$19,94 Unit Price incl. VAT
19
RING RETAINING SHAFT DIA. 1.375
3233364
$12,59 Unit Price incl. VAT
20
RING RETAINING BASIC INTERNAL 2.047
3234269
$17,84 Unit Price incl. VAT
21
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
22
RING RETAINING
3234205
$20,99 Unit Price incl. VAT
23
RING RETAINING BASIC EXTERNAL MSR-32
3235214
$17,84 Unit Price incl. VAT
24
RING-RETAIN VSH-237(130298)
3235216
$19,94 Unit Price incl. VAT
25
SHAFT INPUT 42T/20T/31T
3235838
$299,24 Unit Price incl. VAT
26
WASHER THRUST 1.187 X 1.500 X .0600
3233378
$17,84 Unit Price incl. VAT
27
WASHER THRUST 0.446 X 0.88 X 0.025
3234642
$19,94 Unit Price incl. VAT
28
SHIM 1.180 OD X 0.995 ID
3234272
$68,24 Unit Price incl. VAT
29
SHIM 2.040 OD X 1.63 ID
3234273
$26,24 Unit Price incl. VAT
30
SPACER 19.4 X 34.0 X 2.0
3235883
$41,99 Unit Price incl. VAT
31
BEARING NEEDLE CAGE ASSY
3233014
$74,54 Unit Price incl. VAT
32
BEARING
3233019
$54,59 Unit Price incl. VAT
33
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
34
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
35
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
36
BEARING-NEEDLE 30X35X13-CAGED
3233384
$54,59 Unit Price incl. VAT
37
BEARING BALL 6012 C3 60 X 95 X 18
3235218
$101,84 Unit Price incl. VAT
38
BEARING BALL 6303 17 X 47 X 14
3234652
$27,29 Unit Price incl. VAT
39
BEARING BALL 6206RSH2 STD 30 X 62 X 16
3235496
$54,59 Unit Price incl. VAT
40
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
41
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
42
SPRING COMPRESSION 0.36 O.D. X 1.125
3234578
$26,24 Unit Price incl. VAT
43
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
44
WASHER-SPRING 210393
3235327
$17,84 Unit Price incl. VAT
45
TUBE SNORKEL MACHINED
3234278
$188,99 Unit Price incl. VAT
46
GEAR SECTOR 16T
3233839
$68,24 Unit Price incl. VAT
47
GEAR-SECTOR 31T
3233832
$68,24 Unit Price incl. VAT
48
PLATE PARK 12 FACE
3235456
$73,49 Unit Price incl. VAT
49
STAR DETENT
3235982
$68,24 Unit Price incl. VAT
50
SHAFT-IDLER 29T(285803)
3235223
$204,74 Unit Price incl. VAT
51
SHAFT-REVERSE 27T(285878)
3235380
$456,74 Unit Price incl. VAT
52
SHAFT FRONT OUTPUT
3236439
$246,74 Unit Price incl. VAT
53
BELLCRANK 92 DEGREE
3235227
$52,49 Unit Price incl. VAT
54
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
55
TUBE VENT 90 -1/4 INCH HOSE
3234230
$19,94 Unit Price incl. VAT
56
ENGAGEMENT DOG 6-FACE(352857)
3235233
$241,49 Unit Price incl. VAT
57
GEAR-53T(352858)
3235234
$157,49 Unit Price incl. VAT
58
GEAR-46T STAGE 3(352872)
3235236
$204,74 Unit Price incl. VAT
59
SHAFT-SHIFT(352973)
3235238
$68,24 Unit Price incl. VAT
60
GEAR 46T STAGE 2
3235381
$246,74 Unit Price incl. VAT
61
SHIFT DOG PARK/LOW (353357)
3235457
$272,99 Unit Price incl. VAT
62
RAIL-SHIFT SHAFT(353622)
3235542
$52,49 Unit Price incl. VAT
63
GEAR LOW 61T
3235561
$157,49 Unit Price incl. VAT
64
SPROCKET-48T 6-FACE REVERSE
3235755
$152,24 Unit Price incl. VAT
65
CAM PARK
3235983
$283,49 Unit Price incl. VAT
66
DRUM SHIFT MACH
3235984
$519,74 Unit Price incl. VAT
67
GEAR 13T SNORKEL
3236412
$272,99 Unit Price incl. VAT
68
WELDMENT REAR MOUNT BRACKET
3235558
$83,99 Unit Price incl. VAT
69
SUBASSEMBLY SECTOR COVER
3235713
$209,99 Unit Price incl. VAT
70
SUBASSEMBLY OUTPUT (INCLUDES BEARINGS)
3235335
$645,74 Unit Price incl. VAT
71
SUBASM. SHAFT
3235336
$703,49 Unit Price incl. VAT
72
SUBASSEMBLY PAWL DETENT ROLLER
3235452
$68,24 Unit Price incl. VAT
73
SUBASSEMBLY SHIFT FORK
3235920
$136,49 Unit Price incl. VAT
74
SUBASSEMBLY RH COVER
3235996
$892,49 Unit Price incl. VAT
75
SUBASSEMBLY LH CASE
3236544
$1 034,24 Unit Price incl. VAT
76
COVER-BEARING CNTR DR.
3235241
$89,24 Unit Price incl. VAT
77
BRACKET WIRE HARNESS
3235350
$16,79 Unit Price incl. VAT
78
BRACKET REAR MOUNT
3235559
$73,49 Unit Price incl. VAT
79
CHAIN SILENT TYPE 101 .25P X .40W X 58L
3234737
$314,99 Unit Price incl. VAT
80
SENSOR-SPEED TRANS
4013908
4082135
$204,74 Unit Price incl. VAT
81
SWITCH ROTARY 2 PIN RESISTIVE
7662299
$209,99 Unit Price incl. VAT
82
PLUG SOCKET HEAD
3234755
$52,49 Unit Price incl. VAT
83
SEAL TRIPLE LIP VITON HELIX 30 X 47
3235495
$73,49 Unit Price incl. VAT
84
SEAL TRIPLE LIP VITON 25 X 80 X 10
3235658
$104,99 Unit Price incl. VAT
85
O-RING
3234302
$13,64 Unit Price incl. VAT
86
O-RING -012 VITON
3233836
$12,59 Unit Price incl. VAT
87
O-RING -014 VITON
3233828
$12,59 Unit Price incl. VAT
88
SEAL TRIPLE LIP VITON HELIX 40X70X7
3235052
$57,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

Other Parts for RZR XP 4 1000 SPORT

WHEELS, REAR

WHEELS, REAR

for RZR XP 4 1000 SPORT from 2023

WHEELS, FRONT

WHEELS, FRONT

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, STABILIZER BAR, REAR

SUSPENSION, STABILIZER BAR, REAR

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, REAR SHOCK MOUNTING

SUSPENSION, REAR SHOCK MOUNTING

for RZR XP 4 1000 SPORT from 2023

REAR SUSPENSION SHOCK INTERNALS

REAR SUSPENSION SHOCK INTERNALS

for RZR XP 4 1000 SPORT from 2023

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, REAR CARRIER

SUSPENSION, REAR CARRIER

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, FRONT STABILIZER BAR- Z23N4E99A/99B (C701011-2)

SUSPENSION, FRONT STABILIZER BAR- Z23N4E99A/99B (C701011-2)

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, FRONT SHOCK MOUNTING

SUSPENSION, FRONT SHOCK MOUNTING

for RZR XP 4 1000 SPORT from 2023

SUSPENSION, FRONT SHOCK INTERNALS

SUSPENSION, FRONT SHOCK INTERNALS

for RZR XP 4 1000 SPORT from 2023

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR XP 4 1000 SPORT from 2023

FRONT SUSPENSION CARRIER- Z23N4E99A/99B (C0704127-2)

FRONT SUSPENSION CARRIER- Z23N4E99A/99B (C0704127-2)

for RZR XP 4 1000 SPORT from 2023

POWER STEERING ASM.

POWER STEERING ASM.

for RZR XP 4 1000 SPORT from 2023

REFERENCE, OWNERS MANUAL AND TOOL KIT

REFERENCE, OWNERS MANUAL AND TOOL KIT

for RZR XP 4 1000 SPORT from 2023

FUEL SYTEMS, FUEL TANK

FUEL SYTEMS, FUEL TANK

for RZR XP 4 1000 SPORT from 2023

FUEL SYTEMS, FUEL LINES, STD.

FUEL SYTEMS, FUEL LINES, STD.

for RZR XP 4 1000 SPORT from 2023

FUEL SYTEMS, FUEL LINES, EVAP

FUEL SYTEMS, FUEL LINES, EVAP

for RZR XP 4 1000 SPORT from 2023

ENGINE, WATERPUMP ASSEMBLY

ENGINE, WATERPUMP ASSEMBLY

for RZR XP 4 1000 SPORT from 2023

ENGINE, WATERPUMP AND BYPASS

ENGINE, WATERPUMP AND BYPASS

for RZR XP 4 1000 SPORT from 2023

ENGINE, THROTTLE PEDAL

ENGINE, THROTTLE PEDAL

for RZR XP 4 1000 SPORT from 2023

ENGINE, THROTTLE BODY AND VALVE COVER

ENGINE, THROTTLE BODY AND VALVE COVER

for RZR XP 4 1000 SPORT from 2023

ENGINE, STATOR AND FLYWHEEL

ENGINE, STATOR AND FLYWHEEL

for RZR XP 4 1000 SPORT from 2023

STARTER

STARTER

for RZR XP 4 1000 SPORT from 2023

OIL PUMP

OIL PUMP

for RZR XP 4 1000 SPORT from 2023

ENGINE, MOUNTING & LONG BLOCK

ENGINE, MOUNTING & LONG BLOCK

for RZR XP 4 1000 SPORT from 2023

ENGINE, EXHAUST SYSTEM

ENGINE, EXHAUST SYSTEM

for RZR XP 4 1000 SPORT from 2023

ENGINE, DIPSTICK & OIL FILTER

ENGINE, DIPSTICK & OIL FILTER

for RZR XP 4 1000 SPORT from 2023

ENGINE, CYLINDER HEAD AND VALVES

ENGINE, CYLINDER HEAD AND VALVES

for RZR XP 4 1000 SPORT from 2023

CYLINDER AND PISTON

CYLINDER AND PISTON

for RZR XP 4 1000 SPORT from 2023

ENGINE, CRANKCASE AND CRANKSHAFT

ENGINE, CRANKCASE AND CRANKSHAFT

for RZR XP 4 1000 SPORT from 2023

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for RZR XP 4 1000 SPORT from 2023

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RZR XP 4 1000 SPORT from 2023

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR XP 4 1000 SPORT from 2023

ELECTRICAL, WIRE HARNESS

ELECTRICAL, WIRE HARNESS

for RZR XP 4 1000 SPORT from 2023

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

ELECTRICAL, HEADLIGHTS AND TAILLIGHTS

for RZR XP 4 1000 SPORT from 2023

ELECTRICAL, ECM, COIL, REGULATOR

ELECTRICAL, ECM, COIL, REGULATOR

for RZR XP 4 1000 SPORT from 2023

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

for RZR XP 4 1000 SPORT from 2023

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, PROP SHAFT

DRIVE TRAIN, PROP SHAFT

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, HALF REAR SHAFT

DRIVE TRAIN, HALF REAR SHAFT

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, HALF SHAFT, FRONT

DRIVE TRAIN, HALF SHAFT, FRONT

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RZR XP 4 1000 SPORT from 2023

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR XP 4 1000 SPORT from 2023

CHASSIS, CAB FRAME

CHASSIS, CAB FRAME

for RZR XP 4 1000 SPORT from 2023

BRAKES, REAR CALIPER

BRAKES, REAR CALIPER

for RZR XP 4 1000 SPORT from 2023

BRAKES, PEDAL

BRAKES, PEDAL

for RZR XP 4 1000 SPORT from 2023

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR XP 4 1000 SPORT from 2023

BRAKES, BRAKE LINES AND MASTER CYLINDER

BRAKES, BRAKE LINES AND MASTER CYLINDER

for RZR XP 4 1000 SPORT from 2023

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR XP 4 1000 SPORT from 2023

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR XP 4 1000 SPORT from 2023

ROCKER PANELS

ROCKER PANELS

for RZR XP 4 1000 SPORT from 2023

REAR BODYWORK RACK

REAR BODYWORK RACK

for RZR XP 4 1000 SPORT from 2023

REAR BODYWORK FENDERS AND BEZELS- Z23N4E99A/99B (C700248-8)

REAR BODYWORK FENDERS AND BEZELS- Z23N4E99A/99B (C700248-8)

for RZR XP 4 1000 SPORT from 2023

REAR BODYWORK CLOSEOFF

REAR BODYWORK CLOSEOFF

for RZR XP 4 1000 SPORT from 2023

REAR BODYWORK BUMPER

REAR BODYWORK BUMPER

for RZR XP 4 1000 SPORT from 2023

HOOD AND FRONT BODY WORK

HOOD AND FRONT BODY WORK

for RZR XP 4 1000 SPORT from 2023

BODY, PASSENGER GRAB BAR

BODY, PASSENGER GRAB BAR

for RZR XP 4 1000 SPORT from 2023

FRONT BUMPER

FRONT BUMPER

for RZR XP 4 1000 SPORT from 2023

FLOOR, REAR

FLOOR, REAR

for RZR XP 4 1000 SPORT from 2023

FLOOR

FLOOR

for RZR XP 4 1000 SPORT from 2023

DOORSS, REAR

DOORSS, REAR

for RZR XP 4 1000 SPORT from 2023

DOORSS, FRONT

DOORSS, FRONT

for RZR XP 4 1000 SPORT from 2023

DECALSS

DECALSS

for RZR XP 4 1000 SPORT from 2023

DASHBOARD STORAGE

DASHBOARD STORAGE

for RZR XP 4 1000 SPORT from 2023

DASHBOARD

DASHBOARD

for RZR XP 4 1000 SPORT from 2023

DECALSS, GRAPHICS

DECALSS, GRAPHICS

for RZR XP 4 1000 SPORT from 2023

POLARIS RZR XP 4 1000 SPORT 2023

RZR XP 4 1000 SPORT

RZR XP 4 1000 SPORT

Model : RZR XP 4 1000 SPORT

Engine capacity : 1000

Year : 2023

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
