REAR SUSPENSION CONTROL ARM, MOUNTING FOR SPORTSMAN 570 SP TRAIL PACKAGE FROM 2021

SUSPENSION, FRONT SHOCK

REAR SUSPENSION CONTROL ARMS

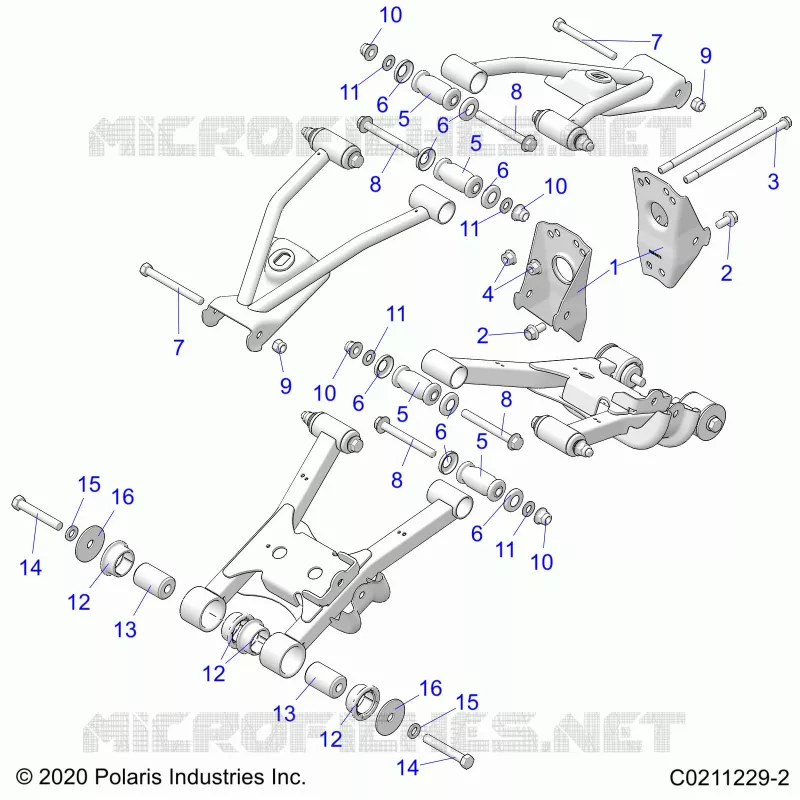

REAR SUSPENSION CONTROL ARM, MOUNTING

1

BRKT-CONTROL-ARM PIVOT10MM BLK

5264874329

$62,99 Unit Price incl. VAT

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$10,49 Unit Price incl. VAT

3

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$13,64 Unit Price incl. VAT

4

NUT-FLANGED 3/8-16 NYLON

7547180

$4,19 Unit Price incl. VAT

5

BUSHING-SUSPENSION RUBBER

5417111

$12,59 Unit Price incl. VAT

6

WASHER-CAP SUSP ID 28.8

7557210

$9,44 Unit Price incl. VAT

7

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$4,19 Unit Price incl. VAT

8

SCR-HXFL-M10X1.25X90 10.9 ZOD

7521024

$7,34 Unit Price incl. VAT

9

NUT-3/8-24(NYLOK)-Y

7542439

$2,09 Unit Price incl. VAT

10

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

11

WASHER

7556153

$3,66 Unit Price incl. VAT

12

BUSHING CONTROL LOWER BLACK

5438902

$8,39 Unit Price incl. VAT

13

BUSHING BEARING CARRIER

5632291

$41,99 Unit Price incl. VAT

14

Screw

7517873

$4,19 Unit Price incl. VAT

15

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

16

WASHER FLAT

7555740

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
