1
Engine displacement
600
2
Year
2015
3
Trim
600-pro-rmk-le-155
4
Parts Catalog
IFS SHOCK W/RESERVOIR (7044137)
5

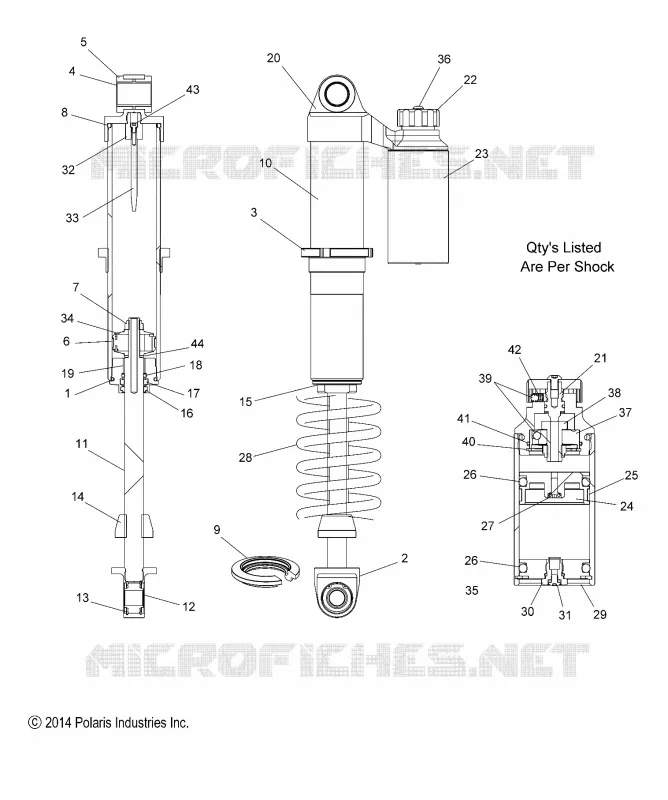

Parts Diagram
Parts Catalog
REAR TRACK SHOCK, LE
by
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
IFS SHOCK W/RESERVOIR (7044137)
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
31
31
28
28
28
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
-
SHOCK WALKER EVANS IFS W/RES
7044137
$1 217,99 Unit Price incl. VAT
1
O-RING 2-125
1800027
$3,66 Unit Price incl. VAT
2
LOOP SHAFT
1800472
$278,24 Unit Price incl. VAT
3
RETAINER SPRING
1800046
$68,24 Unit Price incl. VAT
4
SLEEVE
1800405
$62,99 Unit Price incl. VAT
5
BUSHING
1800406
$9,44 Unit Price incl. VAT
6
BAND WEAR
1800297
$62,99 Unit Price incl. VAT
7
NUT CRIMP
1800031
$7,34 Unit Price incl. VAT
8
O-RING BODY LOOP
1800030
$3,66 Unit Price incl. VAT
9
RING SPRING RETAINING
1800116
$120,74 Unit Price incl. VAT
10
BODY IFS 8.495L BLK
1800653
$178,49 Unit Price incl. VAT
11
SHAFT IFS 8.67L NEEDLE
1800654
$125,99 Unit Price incl. VAT
12
BEARING END
1800040
$152,24 Unit Price incl. VAT
13
SNAP RING END BEARING
1800041
$15,74 Unit Price incl. VAT
14
BUMPER
1800462
$68,24 Unit Price incl. VAT
15
SEAL HEAD .625 SHAFT
1800572
$278,24 Unit Price incl. VAT
16
WIPER D-TYPE
1800322
$62,99 Unit Price incl. VAT
17
SEAL U-CUP
1800323
$52,49 Unit Price incl. VAT
18
O-RING SHAFT SEAL HEAD
1800037
$3,14 Unit Price incl. VAT
19
BUSHING SHAFT
1800038
$24,14 Unit Price incl. VAT
20
LOOP BODY PB 2#
1800424
$661,49 Unit Price incl. VAT
21
O-RING 2-012
1800501
$13,64 Unit Price incl. VAT
21
STUD CLICKER
1800352
$57,74 Unit Price incl. VAT
22
KNOB CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
23
BODY RESERVOIR
1800419
$173,24 Unit Price incl. VAT
24
PISTON RESERVOIR
1800355
$152,24 Unit Price incl. VAT
25
BAND PISTON
1800185
$83,99 Unit Price incl. VAT
26
O-RING
1800184
$10,49 Unit Price incl. VAT
27
SCREW BLEED
1800043
$12,59 Unit Price incl. VAT
27
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
28
SPRING COMPRESSION 100# ORANGE
7043460589
Not Available
28
Spring Compression 100# Red
7043460293
$121,79 Unit Price incl. VAT
28
SPRING COMPRESSION 100# MBLK
7043460458
$141,74 Unit Price incl. VAT
28
SPRING COMPRESSION 100# WHITE
7043460133
$141,74 Unit Price incl. VAT
29
CAP END RESERVOIR BLACK
1800420
$68,24 Unit Price incl. VAT
30
VALVE NEEDLE
1800329
$62,99 Unit Price incl. VAT
31
SCREW BUTTON HEAD
1800109
$6,29 Unit Price incl. VAT
32
BOLT NEEDLE
1800302
$23,09 Unit Price incl. VAT
33
NEEDLE
1800300
$47,24 Unit Price incl. VAT
34
PISTON CONVEX
1800001
$246,74 Unit Price incl. VAT
35
SNAP RING 1.75 ID
1800159
$10,49 Unit Price incl. VAT
36
SCREW BTN HD
1800357
$6,29 Unit Price incl. VAT
37
PISTON CLICKER
1800353
$173,24 Unit Price incl. VAT
38
BOLT CLICKER
1800354
$23,09 Unit Price incl. VAT
39
BALL D-TENT
1800127
$12,59 Unit Price incl. VAT
40
RING SNAP CLICKER
1800359
$6,29 Unit Price incl. VAT
41
O-RING CLICKER HOUSING
1800358
$2,09 Unit Price incl. VAT
42
SPRING-D-TENT
1800128
$20,99 Unit Price incl. VAT
43
SCREW BLEED W/O-RING
1800074
$7,34 Unit Price incl. VAT
44
WASHER
1800050
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
