1
Engine displacement
550
2
Year
2002
3
Trim
550 SPORT TOURING
4
Parts Catalog
CHAINCASE
5

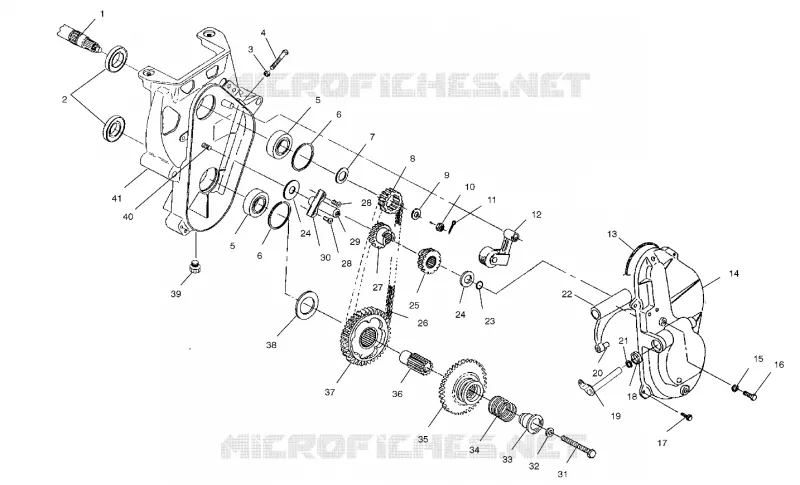

Parts Diagram
Parts Catalog
BRAKE
by
DRIVE TRAIN
CHAINCASE
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
24
25
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
4
SCREW(10)
7515551
$11,54 Unit Price incl. VAT
5
BEARING BALL
3514309
3515910
$30,23 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
WASHER-1.000X1.254X.023-Z
7555917
$4,19 Unit Price incl. VAT
8
SPROCKET 18T 3/4W
3221094
$68,24 Unit Price incl. VAT
9
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
10
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
11
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
12
WHEEL C/C IDLER
5630123
Not Available
12
BEARING
3553002
$20,99 Unit Price incl. VAT
12
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
12
TIGHTENER CHAINCASE (Includes the following)
1332213
Not Available
12
BLOCK TIGHTENER W/ANGLE
5630958
Not Available
12
PIN CHAIN TIGHTENER
7662210
Not Available
13
GASKET CHAINCASE LONG
5411207
Not Available
14
CVR CHAINCASE REV MACH
5131454
Not Available
15
WASHER
7558403
$9,44 Unit Price incl. VAT
16
SCREW
7512492
$2,09 Unit Price incl. VAT
17
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
18
SEAL OIL
3610029
$15,74 Unit Price incl. VAT
19
SHAFT SHIFT BLK
1341221067
$57,63 Unit Price incl. VAT
20
PIN SHIFT FORK(10)
7661826
$12,59 Unit Price incl. VAT
21
RING RETAINER(10)
7710415
$7,34 Unit Price incl. VAT
22
KIT SHIFT FORK/SHAFT (Incl. 29 35)
2200363
Not Available
22
FORK SHIFT
5130805
Not Available
23
O RING
5410589
$7,34 Unit Price incl. VAT
24
WASHER THRUST(10)
7555877
$14,69 Unit Price incl. VAT
25
BEARING NEEDLE
3554508
Not Available
25
GEAR SPUR PINION
1341075
$241,49 Unit Price incl. VAT
26
CHAIN 68P 3/4W [W/2.0IN. SERIES 4 TRACK]
3221112
$194,24 Unit Price incl. VAT
27
BEARING NEEDLE
3554508
Not Available
27
SPROCKET PINION
1341241
Not Available
28
SCREW(10) (Chain Retention Bracket)
7512019
$7,34 Unit Price incl. VAT
29
SHAFT PINION W/WRENCH FLATS
5131770
Not Available
30
BRACKET-CHAIN RETENTION 7.05
5243162
Not Available
31
SCREW(10)
7517581
$3,14 Unit Price incl. VAT
32
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
33
RETAINER DRIVE COUPLER
5130727
Not Available
34
SPRING-COMPRESSION
7041887
$68,24 Unit Price incl. VAT
35
ASM REVERSE GEAR
1341410
$887,24 Unit Price incl. VAT
36
COUPLER DRIVE
5130720
Not Available
37
SPKT.ASM 41T REV 3/4W PM (3/4W) w/Bearing
1341228
Not Available
37
SPKT.ASM 40T REV 3/4W PM
1341227
Not Available
38
WASHER REVERSE(10)
7555871
$10,49 Unit Price incl. VAT
39
PLUG
7052115
$10,49 Unit Price incl. VAT
40
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
41
CHAINCASE VENTED
5131455
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
