1
Engine displacement
0
2
Year
1993
3
Trim
EURO CLASSIC TOURING - E930865
4
Parts Catalog
FRONT TORQUE ARM CLASSIC TOURING E942875 (49274027400026)
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM CLASSIC E942865 (49274027400025)
by
REAR TORQUE ARM CLASSIC E942865 (49274027400027)

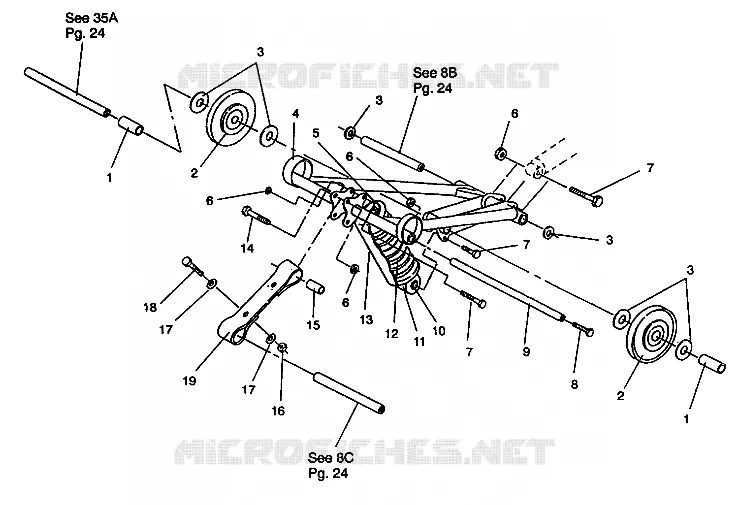

FRONT TORQUE ARM CLASSIC TOURING E942875 (49274027400026)
1
SPACER OUTER
5332784
Not Available
2
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
3
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
4
ARM FR.TORQUE BLK.
1540805067
Not Available
5
RETAINER SPRING COIL
5220225
$19,94 Unit Price incl. VAT
6
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
7
SCREW
7515415
$2,09 Unit Price incl. VAT
8
BOLT(10)
7515432
Not Available
9
SHAFT MOUNTING
5010149
Not Available
10
SHOCK CTR.SUSP.
7041281
Not Available
11
RETAINER-SPRING
5210953
$11,54 Unit Price incl. VAT
12
SPRING-SHOCK SUSP
7041140
Not Available
13
SHIELD SPRING [No Longer Available]
5431388
Not Available
14
BOLT
7515438
$9,44 Unit Price incl. VAT
15
BUSHING SUSPENSION
5010212
Not Available
16
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
17
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
18
SCR-5/16-18X1-HX/FLG-GR5-Y
7515307
$7,34 Unit Price incl. VAT
19
STRAP LIMITER
5410397
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
