1
Engine displacement
800
2
Year
2013
3
Trim
800 SWITCHBACK PRO-R / ES / RETRO / LE
4
Parts Catalog

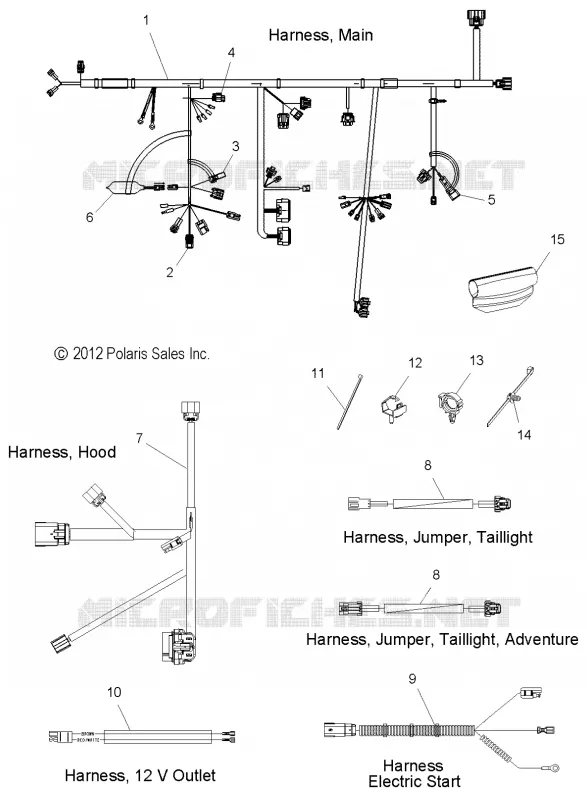

WIRE HARNESS
5
Parts Diagram
Parts Catalog
SWITCHES, SENSORS AND COMPONENTS
by
RECOIL STARTER
WIRE HARNESS
1
2
2
3
4
5
6
7
8
8
8
8
9
10
11
11
12
13
14
15
15
1
Harness Main LE STD. [Incl. 2-6]
2411810
$1 118,24 Unit Price incl. VAT
2
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
2
FUSE 2 AMP ATM BLADE STYLE MINI
4010752
$10,49 Unit Price incl. VAT
3
RELAY-MICRO SPDT 35/20A SLD 12
4011998
$99,74 Unit Price incl. VAT
4
COVER DIAGNOSTIC
4012654
$19,94 Unit Price incl. VAT
5
CAPACITOR FILTER
4011441
$194,24 Unit Price incl. VAT
6
CAPACITOR 22 000 MICRO F
4013412
$125,99 Unit Price incl. VAT
7
HARNESS HOOD
2411861
Not Available
8
Harness Jumper Taillight Short
2411537
$73,49 Unit Price incl. VAT
8
Harness Jumper Taillight Adventure
2411666
Not Available
9
HARNESS ELECTRIC START DC-SDI
2411513
$83,99 Unit Price incl. VAT
10
HARNESS-12V OUTLET LX
2411352
$52,49 Unit Price incl. VAT
11
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
11
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
12
CLIP ROUTING
7670109
$4,19 Unit Price incl. VAT
13
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
14
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
15
COVER HARNESS
2685075
$19,94 Unit Price incl. VAT
15
COVER HARNESS LARGE
2685344
$27,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
