1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS PRO-RMK 174 3"
4
Parts Catalog

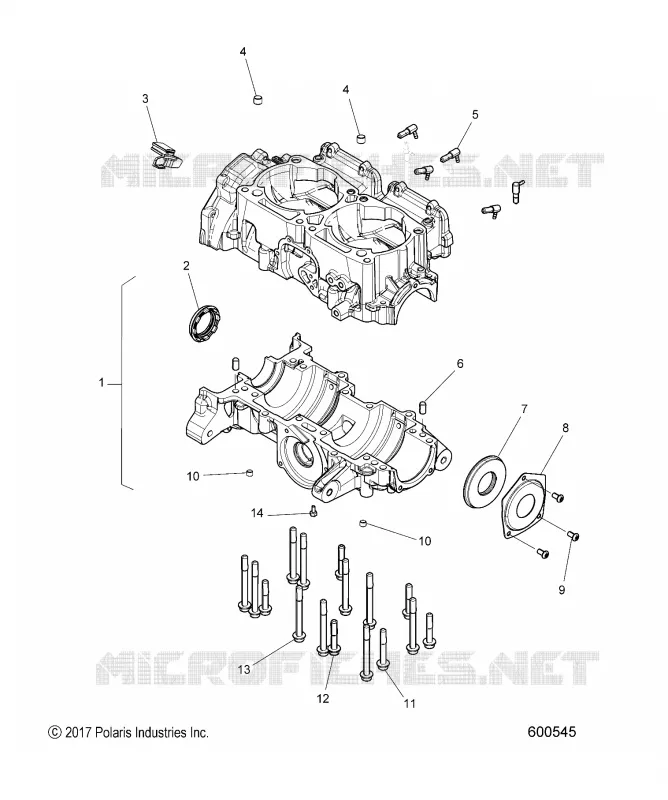

CRANKCASE
5
Parts Diagram
Parts Catalog
STORAGE BAG (SNOW CHECK)
by
SUSPENSION, CONTROL ARMS, SPINDLE AND SHOCK MNTG.
CRANKCASE
1
2
3
4
4
5
6
7
8
9
10
10
11
12
13
14
1
KIT CRANKCASE [INCL. 5 6 10-14]
2207329
$2 026,49 Unit Price incl. VAT
2
SEAL FLANGED
5416075
5416911
$73,49 Unit Price incl. VAT
3
RETAINER WIRE
5437349
$19,94 Unit Price incl. VAT
4
DOWEL HOLLOW
7663008
$9,44 Unit Price incl. VAT
5
VALVE CHECK
7051020
$68,24 Unit Price incl. VAT
6
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
7
SEAL-FLANGED 35X72X7 STNDOFFPG
5415026
$41,99 Unit Price incl. VAT
8
GUARD CRANK SEAL
5251374
$47,24 Unit Price incl. VAT
9
SCREW-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
10
PLUG
7052337
$6,29 Unit Price incl. VAT
11
BOLT 55MM
7517785
$17,84 Unit Price incl. VAT
12
SCR-SHFL-M8X1.25X45 10.9 ZY3
7517786
$11,54 Unit Price incl. VAT
13
BOLT 80MM
7517784
$15,74 Unit Price incl. VAT
14
SCR-6-32X3/8HEXWH TAPTITE ZY3
7517577
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
