1
Engine displacement
300
2
Year
2009
3
Trim
SPORTSMAN 300 4X4 - A09LH27AX/AZ
4
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
5

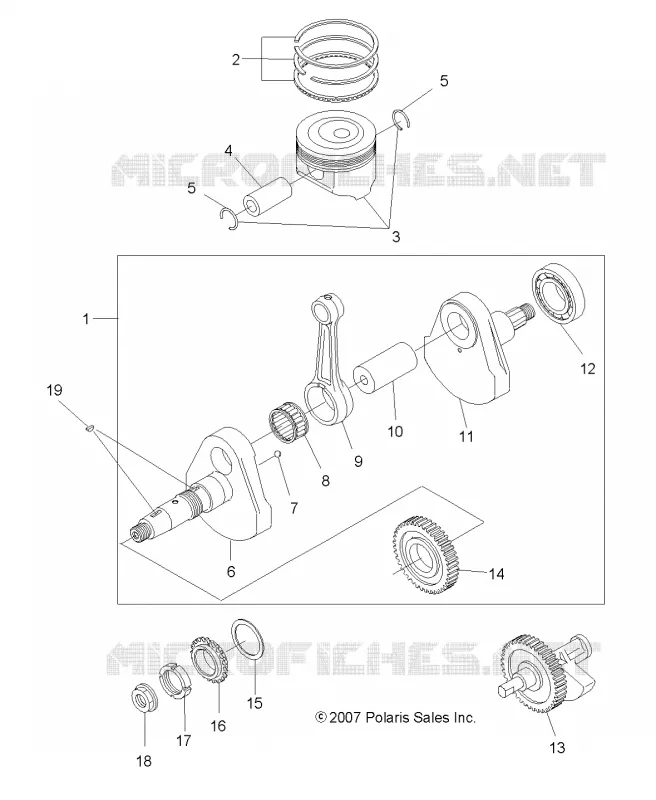

Parts Diagram
Parts Catalog
CRANKCASE
by
CYLINDER
ENGINE, CRANKSHAFT AND PISTON
1
2
2
2
3
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
15
15
16
17
18
19
1
Asm. Crankshaft
3089807
Not Available
2
Piston Ring Set .25mm O/S
3089823
Not Available
2
Piston Ring Set Standard
3089822
Not Available
2
Piston Ring Set .5mm O/S
3089824
Not Available
3
Piston Set .5mm O/S [Incl. 4]
3089820
$242,54 Unit Price incl. VAT
3
Piston Set Standard [Incl. 4]
3089818
Not Available
3
Piston Set .25mm O/S [Incl. 4]
3089819
$242,54 Unit Price incl. VAT
4
Pin Piston
3089821
$40,94 Unit Price incl. VAT
5
CLIP PISTON PIN
3084167
2207579
$356,99 Unit Price incl. VAT
6
Crankshaft 1
3089808
$544,94 Unit Price incl. VAT
7
BALL STEEL
3085024
$12,59 Unit Price incl. VAT
8
Bearing Large End
3089812
$68,24 Unit Price incl. VAT
9
Rod Connecting
3089811
Not Available
10
Pin Crank
3089810
$293,99 Unit Price incl. VAT
11
Crankshaft 2
3089809
$290,84 Unit Price incl. VAT
12
Bearing Ball
3089814
$74,54 Unit Price incl. VAT
13
Shaft Balancer
3089815
Not Available
14
Gear Balancer 1
3089813
$74,33 Unit Price incl. VAT
15
Spacer
3089826
$3,35 Unit Price incl. VAT
15
Spacer
3089827
Not Available
15
Spacer
3089825
Not Available
16
Sprocket 1
3089816
Not Available
17
NUT SLIT
3085528
$68,24 Unit Price incl. VAT
18
Nut
3089991
$5,24 Unit Price incl. VAT
19
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
