1
Engine displacement
0
2
Year
1998
3
Trim
MAGNUM 4X4 - W98AC42A
4
Parts Catalog
COOLING SYSTEM
5

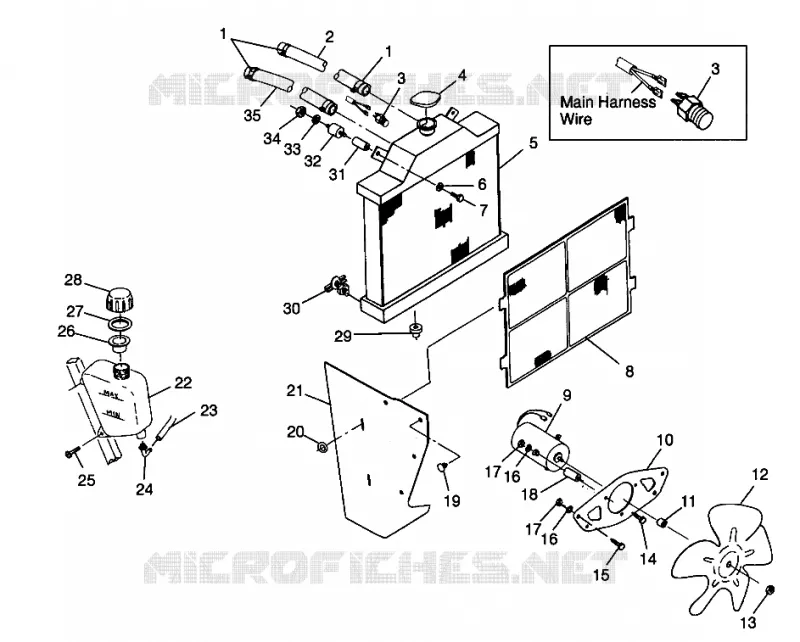

Parts Diagram
Parts Catalog
CABIN
by
EXHAUST SYSTEM
COOLING SYSTEM
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
2
HOSE CHAFE-PROTECTED
5411108
Not Available
3
SWITCH THERMAL FAN L/C
4110225
Not Available
4
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
5
RADIATOR #U#FLOW
1240015
Not Available
6
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
7
BOLT
7512113
$7,34 Unit Price incl. VAT
8
COVER RADIATOR W/MESH
5431760
Not Available
9
MOTOR FAN LQ W/CONNECTOR
4170011
Not Available
10
BRKT FAN MOUNT BLK
5241788067
$11,96 Unit Price incl. VAT
11
SPACER
5333457
Not Available
12
BLADE FAN
5240822
$92,28 Unit Price incl. VAT
13
NUT
7542154
Not Available
14
SCREW
7517221
$3,14 Unit Price incl. VAT
15
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
16
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
17
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
18
SPACER FAN BRKT.
5432294
$6,39 Unit Price incl. VAT
19
CLIP-FIR TREE DART 6.35MM
7670090
$2,09 Unit Price incl. VAT
20
O-Ring
5410607
Not Available
21
SHIELD LH RADIATOR SIDE
5431829
Not Available
21
SHIELD RH RADIATOR SIDE
5431830
Not Available
22
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
23
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
24
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
25
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
26
PLUG CAP Substituted by 5433774
5431895
5433774
$10,49 Unit Price incl. VAT
27
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
28
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
29
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
30
VALVE DRAIN COCK
7052181
Not Available
31
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
32
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
33
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
34
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
35
HOSE WATER 305 CM.
8450050305
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
