1
Engine displacement
500
2
Year
2010
3
Trim
SCRAMBLER 500 4X4 INTL - A10NG50FA
4
Parts Catalog
FRONT BRAKE CALIPER
5
Parts Diagram
Parts Catalog
DECALS
by
REAR BRAKE CALIPER

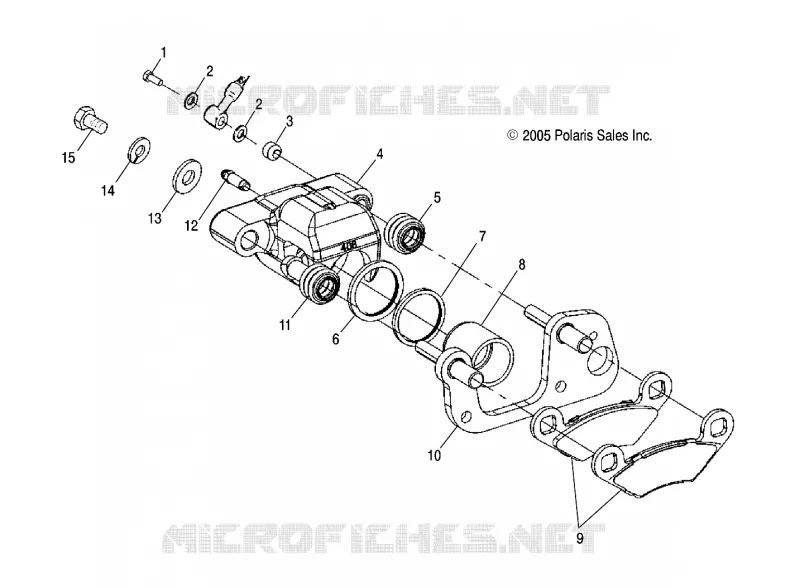

FRONT BRAKE CALIPER
-
-
-
-
1
2
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
-
KIT-BOOT FRONT BRAKE [INCL. 5 6]
1930642
$20,99 Unit Price incl. VAT
-
KIT PISTON AND SEAL [INCL. 4-6]
1930665
$104,99 Unit Price incl. VAT
-
Asm. Caliper Front LH [INCL. 1-10]
1911540
$488,24 Unit Price incl. VAT
-
Asm. Caliper Front RH [INCL. 1-10]
1911541
$488,24 Unit Price incl. VAT
1
BOLT-BANJO 10MMX1.00-6G
1910499
$10,49 Unit Price incl. VAT
2
SEAL-STAT-0-3/8 70EP
5413212
$9,44 Unit Price incl. VAT
3
SCR-M10X1.0X8 SOC SET-OD
7518863
$17,84 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOOT-PIN SEAL
5412506
$6,29 Unit Price incl. VAT
6
SQUARE RING-MOLDED (.094)
5410779
$19,94 Unit Price incl. VAT
7
SQUARE RING MOLDED (.103 X .134)
5410780
$19,94 Unit Price incl. VAT
8
PISTON-BRAKE LONG Substituted by 1930665
5132294
1930665
$104,99 Unit Price incl. VAT
9
KIT-BRAKE PAD ASM FRONT [INCL. 2 PADS]
2202412
$98,16 Unit Price incl. VAT
10
ASM-CALIPER MNT FRONT 1.500
1910513
$99,74 Unit Price incl. VAT
11
BOOT-PIN BUSHING
5412505
$6,29 Unit Price incl. VAT
12
SCR-M7X1.0 BLEEDER OLIVE D
7081343
$10,49 Unit Price incl. VAT
13
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
14
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
15
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
