CARBURETOR FOR 550 TRAIL TOURING FROM 2005

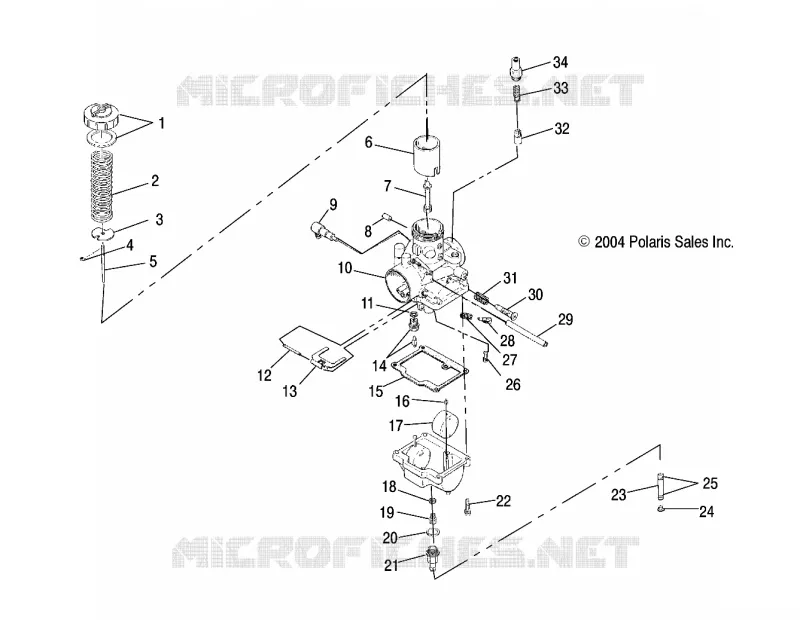

CARBURETOR

1

ASM. TOP MIXING CHAMBER

3130184

$68,24 Unit Price incl. VAT

2

SPRING THROTTLE

3130439

$27,29 Unit Price incl. VAT

3

PLATE THROTTLE

3130027

$19,94 Unit Price incl. VAT

4

E-RING

3130508

$12,59 Unit Price incl. VAT

5

Needle Jet [6BGY16-3]

3131416

Not Available

6

VALVE THROTTLE 3.0

3130372

$104,99 Unit Price incl. VAT

7

JET NEEDLE Q-2 (Q-2) 480 (Euro SKS)

3130894

Not Available

8

CAP

3130479

$31,49 Unit Price incl. VAT

9

ASM. VALVE CHECK

3086785

$68,24 Unit Price incl. VAT

10

Asm. Carburetor (Incl. 1-14 18-34)(MAG)(If built after 8/13/02)

3131520

$532,34 Unit Price incl. VAT

10

Asm. Carburetor (Incl. 1-14 18-34)(PTO)(If built after 8/13/02)

3131521

Not Available

11

PACKING NEEDLE VALVE

3130017

$7,34 Unit Price incl. VAT

12

PIN FLOAT

3130361

$18,89 Unit Price incl. VAT

13

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

14

NEEDLE VALVE 1.5

3131146

$99,74 Unit Price incl. VAT

15

GASKET FLOAT CHAMBER

3130020

$31,49 Unit Price incl. VAT

16

CAP

3130237

$8,39 Unit Price incl. VAT

17

ASM. FLOAT

3130430

$73,49 Unit Price incl. VAT

18

WASHER

3130014

$3,14 Unit Price incl. VAT

19

JET MAIN HX.HD#280(10) (No. 280)

3130131

$15,74 Unit Price incl. VAT

19

JET MAIN HX.HD#270(10)

3130130

$15,74 Unit Price incl. VAT

20

O-RING

3130239

Not Available

21

NIPPLE

3130573

$68,24 Unit Price incl. VAT

22

ASM. SCREW AND WASHER

3130025

$6,29 Unit Price incl. VAT

23

FUEL LINE ETHER RED 5/16# Substituted by 8350017-160

8350017600

Not Available

24

PLUG TRAP

5431893

$26,24 Unit Price incl. VAT

25

HOSE CLAMP RED

7080003

$2,09 Unit Price incl. VAT

26

JET PILOT #40(10) (No. 40)

3130067

Not Available

27

SPRING AIR ADJUST

3130012

$18,89 Unit Price incl. VAT

28

SCREW AIR

3130011

$36,74 Unit Price incl. VAT

29

HOSE

3131288

$17,21 Unit Price incl. VAT

30

SCREW THROTTLE STOP

3130437

$36,74 Unit Price incl. VAT

31

SPRING THROTTLE ADJUSTER

3130010

$18,89 Unit Price incl. VAT

32

ASM. PLUNGER

3130328

$68,24 Unit Price incl. VAT

33

SPRING PLUNGER

3130006

$18,89 Unit Price incl. VAT

34

HOLDER GUIDE

3130199

$52,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
