1
Engine displacement
550
2
Year
2005
3
Trim
550 TRAIL TOURING
4
Parts Catalog

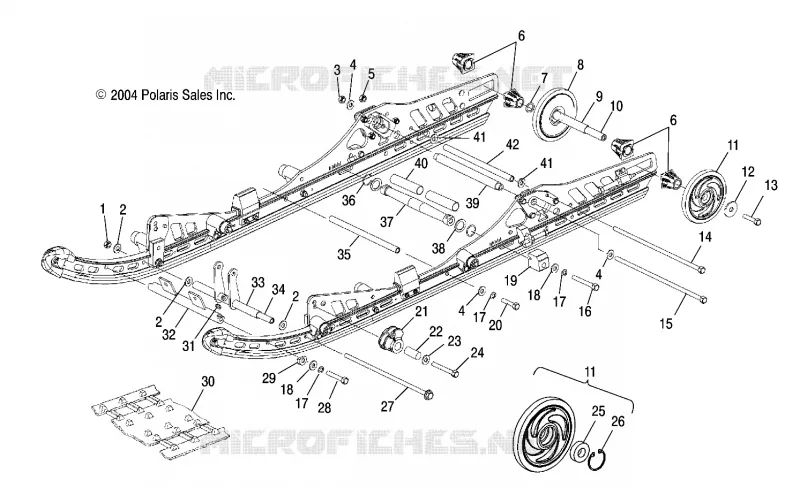

REAR SUSPENSION
5
Parts Diagram
Parts Catalog
RAIL MOUNTING
by
DRIVE CLUTCH
REAR SUSPENSION
1
2
2
2
3
4
4
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
35
36
37
38
39
40
41
41
42
1
NUT-5/16-24 NYLOK GR8 Y
7547217
$7,34 Unit Price incl. VAT
2
WASHER
7556216
$9,44 Unit Price incl. VAT
3
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
4
WASHER
7555806
$1,56 Unit Price incl. VAT
5
NUT
7547064
Not Available
6
SPACER IDLER
5432535
$20,99 Unit Price incl. VAT
7
BUSHING
7555918
$3,14 Unit Price incl. VAT
8
ASM. WHEEL
1594087
Not Available
9
Spacer Idler Center
5333285
$20,99 Unit Price incl. VAT
10
SHAFT IDLER
5020744
Not Available
11
Asm. Idler Wheel Blue
1590303244
Not Available
12
WASHER BELLE
7556130
$11,54 Unit Price incl. VAT
13
SCR-HH-3/8-16X1.25 GR5 ZYNY
7517731
$2,09 Unit Price incl. VAT
14
SCREW-5/16-24X10.50 HXHD CAP-Y
7517896
Not Available
15
SCREW-3/8-24X10.50 HXHD CAP-Y
7517821
Not Available
16
SCR-3/8-24X3 1/4 HXCP GR8-Y
7517856
Not Available
17
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
18
WASHER
7556042
7555806
$1,56 Unit Price incl. VAT
19
BLOCK-SHOCK PIVOT ADJ
5132583
$28,34 Unit Price incl. VAT
20
SCREW (10)
7517247
$6,29 Unit Price incl. VAT
21
Guide Spring Square
5434897
$62,99 Unit Price incl. VAT
22
BUSHING
5010332
$15,74 Unit Price incl. VAT
23
WASHER-.390X.940X.060 FL-Y
7555976
$7,34 Unit Price incl. VAT
24
BOLT(10)
7515538
$11,54 Unit Price incl. VAT
25
BEARING
3514384
3515142
$34,64 Unit Price incl. VAT
26
RING RETAINING
7710444
$15,74 Unit Price incl. VAT
27
Screw
7517996
Not Available
28
SCR-3/8-16X1.50-HX/CP-GR5-P80Y
7518005
$5,76 Unit Price incl. VAT
29
Spacer
5133351
$13,64 Unit Price incl. VAT
30
TRACK 136#X1# LIGHTNING
5411797
$1 033,20 Unit Price incl. VAT
30
CLIP GUIDE
5241474
Not Available
30
CLIP SLIDE
5241473
Not Available
31
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
32
SHAFT LIMITER STRAP BLK.
1012267067
Not Available
33
Arm Shock Pivot Black
1541797067
Not Available
34
Tube
5334042
Not Available
35
SHAFT
5020868
Not Available
36
O-RING-.859X1.137X.139
5411092
$3,14 Unit Price incl. VAT
37
SHAFT-TAPERED
5132793
$167,99 Unit Price incl. VAT
38
Bushing
7556401
Not Available
39
SHAFT-RTA LOWER Substituted by 2201938
5133093
$46,19 Unit Price incl. VAT
40
SPACER-SHOCK CENTERING M-10
5333902
$50,39 Unit Price incl. VAT
41
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
42
TUBE
5333477
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
