CHASSIS, FOOTRESTS, AND RUNNING BOARDS FOR PATRIOT 9R RMK KHAOS SLASH 163/165 FROM 2023

CHASSIS, TIE ROD BOOT ASM.

DRIVE TRAIN, CLUTCH, PRIMARY

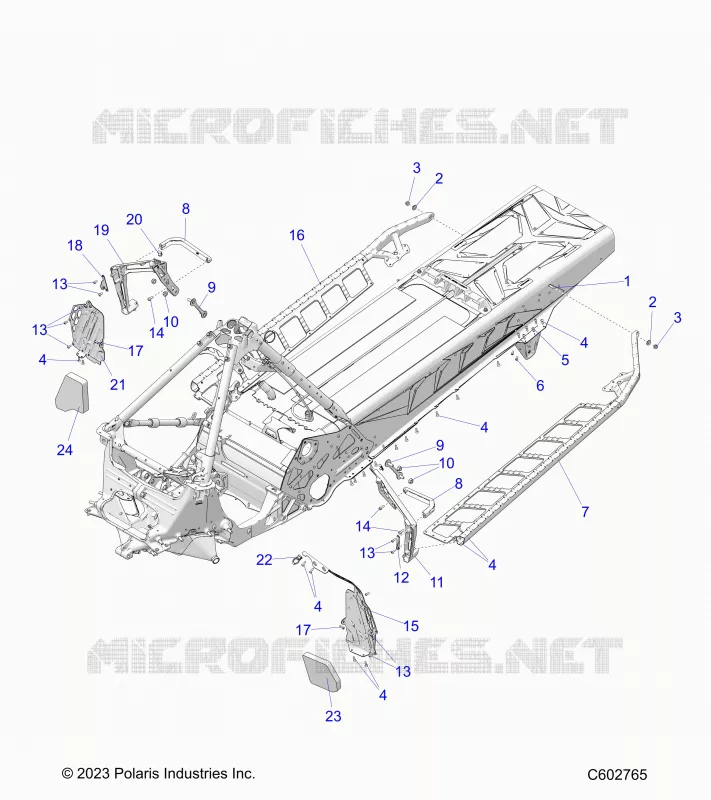

CHASSIS, FOOTRESTS, AND RUNNING BOARDS

1

SCR-RHCARM6X1.0X20 8.8 ZOD

7518994

$6,29 Unit Price incl. VAT

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$9,44 Unit Price incl. VAT

3

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$7,34 Unit Price incl. VAT

4

RIVET-3/16-.090-.290

7661637

$2,09 Unit Price incl. VAT

5

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$2,09 Unit Price incl. VAT

6

SCR-M5X.8X10 TX BTN PIN-IN HD

7518457

$4,19 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH LIFTED LIME LIFTED LIME COLOR OPTION

1026039801

$488,24 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH IRED RED COLOR OPTION

1026039293

$488,24 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH GLBLK BLACK COLOR OPTION

1026039067

$488,24 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH ORG ORANGE COLOR OPTION

1026039647

$488,24 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH NATURAL COLOR OPTION

1026039

$440,99 Unit Price incl. VAT

7

ASM-RUNNINGBOARD LH VELOCITY BLUE VELOCITY BLUE COLOR OPTION

1026039689

$456,74 Unit Price incl. VAT

8

CLIP-TOE MACH ORANGE ORANGE COLOR OPTION

5143789647

$99,74 Unit Price incl. VAT

8

CLIP-TOE MACH VELOCITY BLUE VELOCITY BLUE COLOR OPTION

5143789689

$94,49 Unit Price incl. VAT

8

CLIP-TOE MACH RED RED COLOR OPTION

5143789293

$99,74 Unit Price incl. VAT

8

CLIP-TOE MACH BLACK BLACK COLOR OPTION

5143789067

$99,74 Unit Price incl. VAT

8

CLIP-TOE MACH NATURAL COLOR OPTION

5143789

$99,74 Unit Price incl. VAT

8

CLIP-TOE MACH LFTLM LIFTED LIME COLOR OPTION

5143789801

$99,74 Unit Price incl. VAT

9

ASM. STUD PLATE

1019337

$19,94 Unit Price incl. VAT

10

NUT-HXFLGHD M8 0600087

7547014

$13,64 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH LIFTED LIME LIFTED LIME COLOR OPTION

5143787801

$173,24 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH GBLK BLACK COLOR OPTION

5143787067

$178,49 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH ORGB ORANGE COLOR OPTION

5143787647

$178,49 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH NATURAL COLOR OPTION

5143787

$99,74 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH VELBLUE VELOCITY BLUE COLOR OPTION

5143787689

$167,99 Unit Price incl. VAT

11

SUPPORT-FOOTREST MACH LH RED RED COLOR OPTION

5143787293

$178,49 Unit Price incl. VAT

12

ASM-FENDER MOUNT LH

1027422

$89,24 Unit Price incl. VAT

13

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$7,34 Unit Price incl. VAT

14

SCR-HXFL M6X1.0X16 8.8ZY3DL204

7519329

$7,34 Unit Price incl. VAT

15

ASM-TOE STOP LH

1029128

$120,74 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH ORG ORANGE COLOR OPTION

1026040647

$488,24 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH NATURAL COLOR OPTION

1026040

$440,99 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH LIFTED LIME LIFTED LIME COLOR OPTION

1026040801

$488,24 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH IRED RED COLOR OPTION

1026040293

$488,24 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH GLBLK BLACK COLOR OPTION

1026040067

$456,74 Unit Price incl. VAT

16

ASM-RUNNINGBOARD RH VELOCITY BLUE VELOCITY BLUE COLOR OPTION

1026040689

$456,74 Unit Price incl. VAT

17

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

$2,09 Unit Price incl. VAT

17

ASM-TOE STOP RH

1026559

$120,74 Unit Price incl. VAT

18

ASM-FENDER MOUNT RH

1027423

$89,24 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH ORGB ORANGE COLOR OPTION

5143788647

$178,49 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH VELBLUE VELOCITY BLUE COLOR OPTION

5143788689

$167,99 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH RED

5143788293

$178,49 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH LIFTED LIME LIFTED LIME COLOR OPTION

5143788801

$173,24 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH GBLK BLACK COLOR OPTION

5143788067

$178,49 Unit Price incl. VAT

19

SUPPORT-FOOTREST MACH RH NATURAL COLOR OPTION

5143788

$99,74 Unit Price incl. VAT

20

CLIP-#U# M6.0X1.0

7547366

$9,44 Unit Price incl. VAT

21

ASM-TOE STOP RH

1026559

$120,74 Unit Price incl. VAT

22

CLIP-EDGE 1-3MM THICKNESS

7082428

$9,44 Unit Price incl. VAT

23

FOAM-TOE STOP LH

5815240

$10,49 Unit Price incl. VAT

24

FOAM-TOE STOP RH

5815242

$10,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
