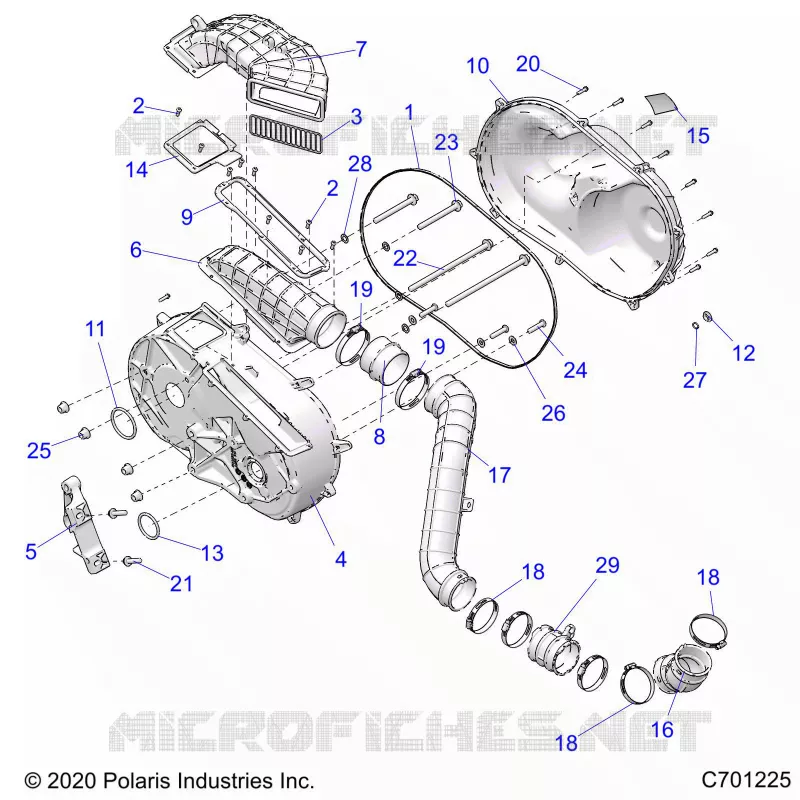

DRIVE TRAIN, CLUTCH COVER AND DUCTING FOR RANGER CREW XP 1000 NORTHSTAR ULTIMATE AUDIO PACKAGE FROM 2021

CHASSIS, MAIN FRAME AND SKID PLATES

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, CLUTCH COVER AND DUCTING

1

SEAL-OUTER CLUTCH COVER [TO 1/6/2021]

5416207

$68,24 Unit Price incl. VAT

2

BOLT-M6X1.0X20 PH/TX-OLIVE D

7518616

$2,09 Unit Price incl. VAT

3

BRKT-SCREEN BELT

5264258

$52,49 Unit Price incl. VAT

4

COVER-CLUTCH INNER MACH [INCL. 5-9][TO 11/23/2020]

5143356

$362,24 Unit Price incl. VAT

5

BRKT-TRANSJOINT MAG MACH

5139822

$89,24 Unit Price incl. VAT

6

DUCT-CLUTCH INLET

5416355

$167,99 Unit Price incl. VAT

7

DUCT-CLUTCH OUTLET

5416141

$167,99 Unit Price incl. VAT

8

BOOT-HOSE ADAPTER

5454194

$47,24 Unit Price incl. VAT

9

PLATE-INLET CLUTCH DUCT SEAL

5634221

$68,24 Unit Price incl. VAT

10

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

11

O-RING-0.489X0.629X0.070 EPDM

5415647

$3,14 Unit Price incl. VAT

12

PLUG-DRAIN 9/16-18 PP

5454915

$10,49 Unit Price incl. VAT

13

O-RING-2.25X2.625X.21 NBR [TO 11/23/2020]

5417193

$15,74 Unit Price incl. VAT

14

MOUNT-OUTLET DUCT

5634514

$52,49 Unit Price incl. VAT

15

DECAL-BELT WARNING/CHECK

7177469

Not Available

16

HOSE-JOINT

5416135

$83,99 Unit Price incl. VAT

17

HOSE-CLUTCH INLET TO TUNNEL

5416170

$115,49 Unit Price incl. VAT

18

CLAMP-HOSE SLOTTED 75-90 DIA

7082314

$19,94 Unit Price incl. VAT

19

CLAMP-HOSE SLOTTED 92-100 DIA

7081969

$19,94 Unit Price incl. VAT

20

SCR-HXFLG M6X1.0X25 10.9

7519754

$7,34 Unit Price incl. VAT

21

SCR-HXFL-M10X1.5X1.5 8.8 ZY3

7518531

$9,44 Unit Price incl. VAT

22

SCR-TXBH-M12X1.75X245 8.8 SPC

7520946

$25,19 Unit Price incl. VAT

23

SCR-TXBH-M12X1.75X110 8.8 SPC

7520945

$14,69 Unit Price incl. VAT

24

SCR-TXBH-M10X1.5X45 8.8ZOD P30

7520323

$10,49 Unit Price incl. VAT

25

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$9,44 Unit Price incl. VAT

26

WSHR-10.5X22.0X1.6 SPC

7556155

$9,44 Unit Price incl. VAT

27

O-RING-0.489X0.629X0.070 EPDM

5416606

$6,81 Unit Price incl. VAT

28

WASHER-.510X.840X.031 Y

7555919

$7,34 Unit Price incl. VAT

29

HOSE-INTAKE DUCT

5416414

$73,49 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
