Parts Catalog

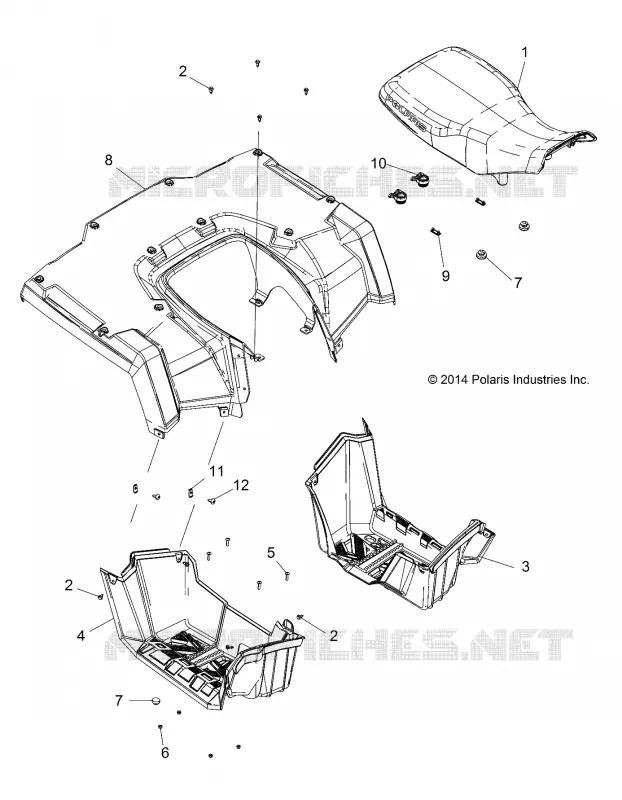

REAR CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
REAR RACK
REAR CAB, SEAT AND FOOTWELLS
1
1
2
2
2
3
4
5
6
7
7
8
8
9
10
11
12
1
ASM. SEAT BLACK [INCL. 7 9]
2685519070
2686609-070
$1 049,99 Unit Price incl. VAT
1
ASM. COVER SEAT W/WHITE DECAL
2685520
$293,99 Unit Price incl. VAT
2
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
3
FOOTWELL BLACK LH
5450523070
$414,74 Unit Price incl. VAT
4
FOOTWELL BLACK RH
5450524070
$414,74 Unit Price incl. VAT
5
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
6
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
7
BUMPER-RUBBER
5412067
$7,34 Unit Price incl. VAT
8
ASM. CAB REAR BRIGHT WHITE [A2][L2]
2635180133
$3 092,24 Unit Price incl. VAT
8
ASM-CAB RR SVC SAGEBRUSH GREEN
2635180498
$2 010,74 Unit Price incl. VAT
9
BUMPER SEAT
5412982
$5,24 Unit Price incl. VAT
10
Grommet Seat Latch
5413691
$6,29 Unit Price incl. VAT
11
NUT-1/4-20 U-TYPE(.080-.170)
7670145
$4,19 Unit Price incl. VAT
12
SCR-1/4-20X.75 TR/TX-M
7518280
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
