1
Engine displacement
760
2
Year
2011
3
Trim
RZR S EPS INTL - R11VM76FX
4
Parts Catalog

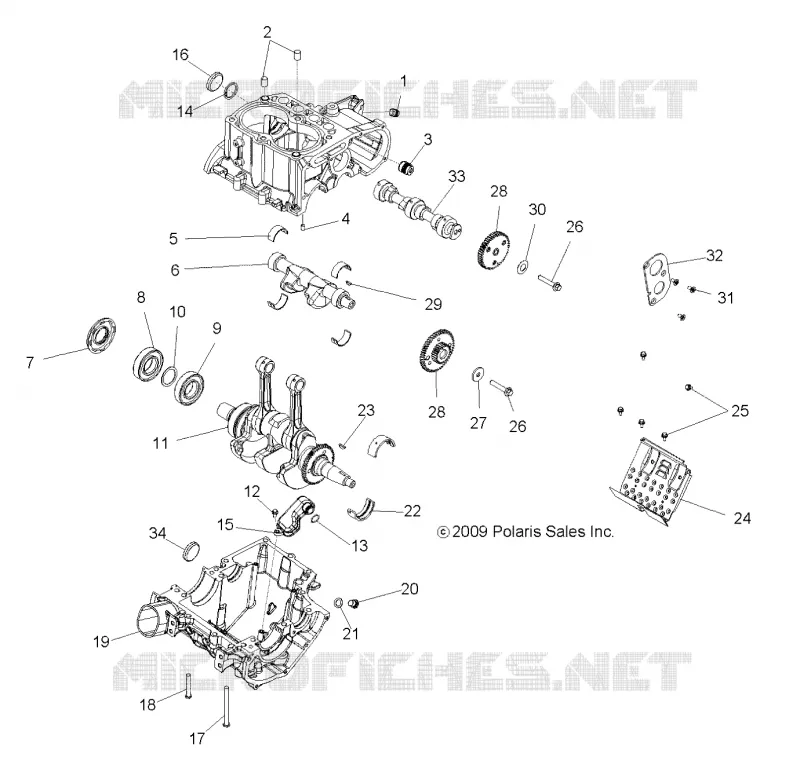

CRANKCASE AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
CYLINDER HEAD AND VALVES
CRANKCASE AND CRANKSHAFT
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
28
29
30
31
32
33
33
34
1
PLUG EXPANSION 9MM
7051531
$13,64 Unit Price incl. VAT
2
DOWEL
7661175
$10,49 Unit Price incl. VAT
3
PLUG EXPANSION 13MM
7052288
Not Available
4
PIN DOWEL
7663001
$20,99 Unit Price incl. VAT
5
BEARING
5132753
Not Available
6
SHAFT BALANCE
5134837
5137337
$346,49 Unit Price incl. VAT
6
Shaft Balance [Built 9/06/10 and After]
5137337
$346,49 Unit Price incl. VAT
7
SEAL FLANGE
5412676
$73,49 Unit Price incl. VAT
8
BEARING BALL
3514361
3585503
$54,59 Unit Price incl. VAT
9
BEARING BALL
3514318
$74,54 Unit Price incl. VAT
10
BUSHING
7556194
$7,34 Unit Price incl. VAT
11
KIT CRANKSHAFT [INCL. 7 10-12]
2203068
$2 504,24 Unit Price incl. VAT
12
SCR-HXFL-M5X0.8X14 18-8
7516603
$19,94 Unit Price incl. VAT
13
O-Ring
5413013
$3,66 Unit Price incl. VAT
14
RING RETAINING
7710512
$7,34 Unit Price incl. VAT
15
Asm. Oil Pickup [Incl. 13]
1204082
$73,49 Unit Price incl. VAT
16
PLUG EXPANSION 42MM
3060004
$31,49 Unit Price incl. VAT
17
SCREW
7517792
$4,19 Unit Price incl. VAT
18
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
19
Kit Crankcase [Incl. 1-5 12-18 20-22 24 25 34 From Engine Dipstick and Oil Filter Page 5/8 11]
2204399
$1 847,99 Unit Price incl. VAT
20
PLUG-SOCKET M12X1.5 DIN 908A
7052306
$31,49 Unit Price incl. VAT
21
WASHER-19X12X1.3 COPPER
5812232
$3,14 Unit Price incl. VAT
22
BEARING
3585704
$40,94 Unit Price incl. VAT
23
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
24
Plate Baffle
5253617
Not Available
25
SCREW-M5X.80X10-HX/FL-Y/D
7518045
$19,94 Unit Price incl. VAT
26
SCREW
7517865
$20,99 Unit Price incl. VAT
27
Spring Torsion Command Lever
7555982
7558715
$26,24 Unit Price incl. VAT
28
KIT GEAR SET
2203106
Not Available
29
KEY WOODRUFF
7721131
$41,99 Unit Price incl. VAT
30
WASHER SPRING
7556183
$17,84 Unit Price incl. VAT
31
SCREW-M6X12 TORX DR FH
7517598
$19,94 Unit Price incl. VAT
32
PLATE THRUST
5244286
$99,74 Unit Price incl. VAT
33
Kit Camshaft [Incl. Cam and Lifters][Built 9/06/10 and After]
2204396
2203740
$871,49 Unit Price incl. VAT
33
Camshaft Phase Sensing HO [Built 9/05/10 and Before]
3022287
2203740
$871,49 Unit Price incl. VAT
34
PLUG-EXPANSION 19MM
7051530
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
