1
Engine displacement
900
2
Year
2016
3
Trim
ranger-hst
4
Parts Catalog
ROCKER ARM VALVES
5
Parts Diagram
Parts Catalog
OIL PUMP
by
ENGINE, ROCKER ARMS COVER AND OIL FILLER

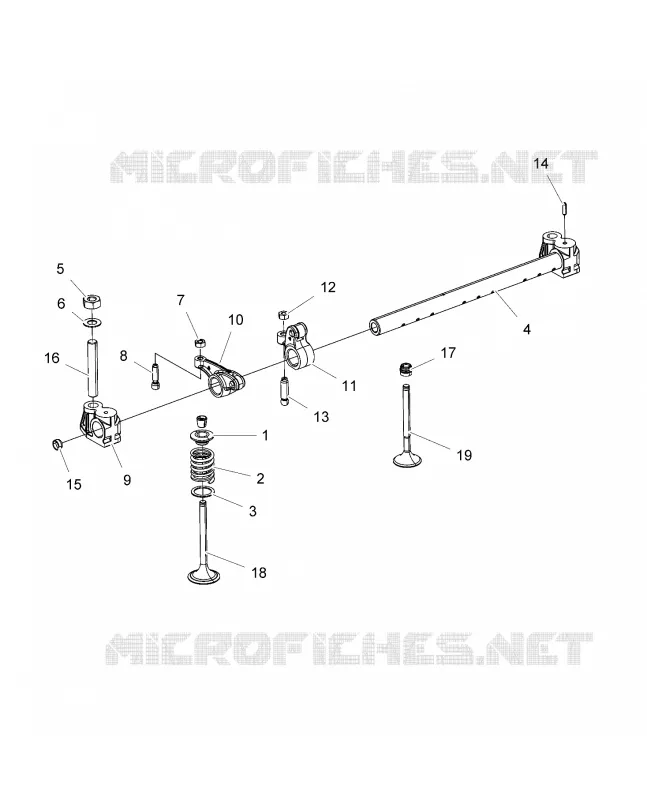

ROCKER ARM VALVES
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
11
12
12
1
2
2
2
2
3
4
4
4
4
5
6
1
RETAINER W/HALF COLLETS
3040274
$73,49 Unit Price incl. VAT
2
SPRING VALVE
3040273
$27,29 Unit Price incl. VAT
3
WASHER 19x25x1
3040149
$10,49 Unit Price incl. VAT
4
SHAFT ROCKER ARM
3040270
$493,49 Unit Price incl. VAT
4
ASM. ROCKER ARM [INCL. SHAFT 7-15]
3040115
$1 832,24 Unit Price incl. VAT
5
NUT M10x1.5
3040056
$9,44 Unit Price incl. VAT
6
WASHER 10.2x19x1
3040148
$7,34 Unit Price incl. VAT
7
NUT M6
3040053
$9,44 Unit Price incl. VAT
8
ADJ. SCREW
3040265
$78,74 Unit Price incl. VAT
9
SUPPORT ROCKER ARM SHAFT
3040269
$178,49 Unit Price incl. VAT
10
ROCKER ARM INLET EXHAUST
3040264
$188,99 Unit Price incl. VAT
11
ROCKER ARM INJ. PUMP
3040268
$346,49 Unit Price incl. VAT
12
NUT
3040267
$9,44 Unit Price incl. VAT
13
ADJ. SCREW
3040266
$89,24 Unit Price incl. VAT
14
LOCKPIN 4x14
3040271
$9,44 Unit Price incl. VAT
15
PLUG DIAM. 11
3040272
$25,19 Unit Price incl. VAT
16
STUD 10x45
3040133
$10,49 Unit Price incl. VAT
17
SEAL VALVE STEM
3040086
$41,99 Unit Price incl. VAT
18
VALVE INTAKE
3040213
$83,99 Unit Price incl. VAT
19
VALVE EXHAUST
3040215
$99,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
