WIRE HARNESS FOR SPORTSMAN EPS 550 - A11ZX55AB/AK/AL/AT/AW/AX FROM 2011

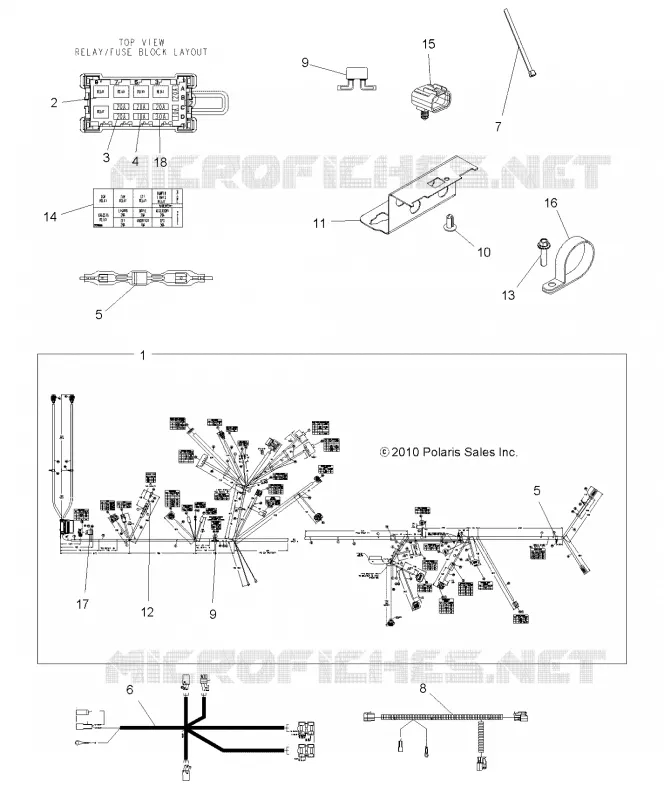

WIRE HARNESS

-

Kit Harness Resistor Module

2204890

$257,24 Unit Price incl. VAT

1

KIT HARNESS TPS

2878498

$220,49 Unit Price incl. VAT

1

Kit Harness Handlebar Switch

2877772

Not Available

1

Kit Harness Handlebar Switch

2877771

$257,24 Unit Price incl. VAT

1

Kit Harness Handlebar Switch

2877773

$262,49 Unit Price incl. VAT

1

Harness Main [Incl. 1-6 9 12 14 17 18 All Kits Cover]

2411523

$1 611,74 Unit Price incl. VAT

1

COVER-RELAY/FUSE CENTER

5438758

$23,09 Unit Price incl. VAT

2

RELAY-SPST SERIES 303 SEALED

4011283

$68,24 Unit Price incl. VAT

3

FUSE-PARK 20 AMP

2434017

$15,74 Unit Price incl. VAT

4

FUSE-IGNITION 10 AMP

2434016

$10,49 Unit Price incl. VAT

5

DIODE - 6 AMP 1/4 3/16 TERM

2411035

$104,99 Unit Price incl. VAT

6

Harness Wire Warmer [AT]

2411066

$178,49 Unit Price incl. VAT

7

CABLE-TIE DIA12-50MM WTHR-RES.

7080138

$5,24 Unit Price incl. VAT

8

HARNESS ACCY WORKLIGHTS

2411236

$272,99 Unit Price incl. VAT

9

BREAKER CIRCUIT 10 AMP

2410692

$52,49 Unit Price incl. VAT

10

FASTNER-PUSH-ON CLIP .250

7670125

$11,54 Unit Price incl. VAT

11

Bracket Fuse Block

5253502

$12,59 Unit Price incl. VAT

12

KIT FUSIBLE LINK 1.0 MM

2202670

$68,24 Unit Price incl. VAT

12

KIT FUSIBLE LINK .8 MM

2202607

$73,49 Unit Price incl. VAT

13

SCR-#14X3/4 LG HI/LO/TAPER-M

7512095

$9,44 Unit Price incl. VAT

14

Label Fuse Box

7175808

Not Available

15

COVER - DIAGNOSTIC W/ CLIP

4012170

$16,79 Unit Price incl. VAT

16

Clamp Hose

7080807

$17,84 Unit Price incl. VAT

17

Kit Relay EPS Repair [Incl. 4010725 Wire Harness Repair Connectors Shrink Tubes Instructions]

2204853

$152,24 Unit Price incl. VAT

18

FUSE-MAIN 30 AMP

2434015

$15,74 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
