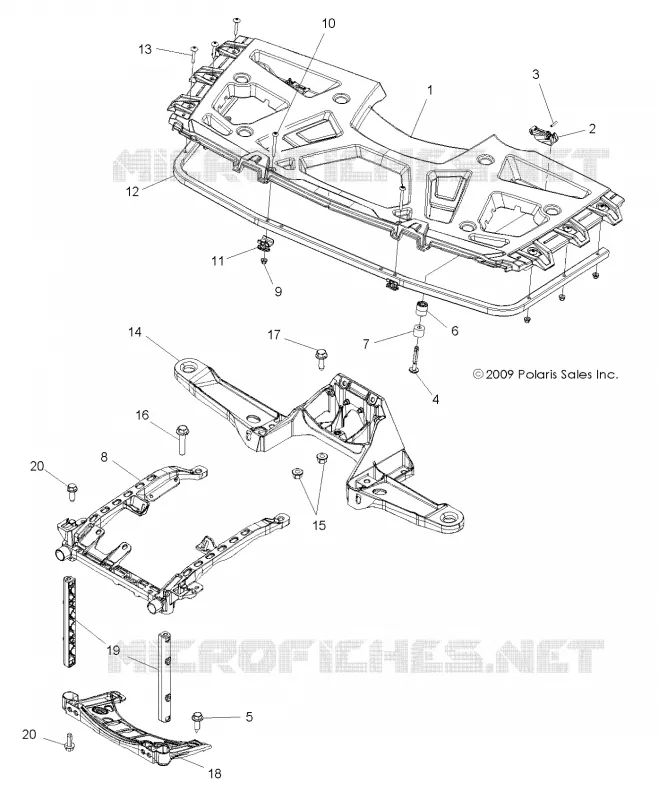

FRONT RACK and SUPPORTS FOR SPORTSMAN EPS 550 - A11ZX55AB/AK/AL/AT/AW/AX FROM 2011

FRONT RACK and SUPPORTS

1

RACK FRONT BLACK

5436865070

$236,24 Unit Price incl. VAT

2

HANDLE-LNR ANCHOR BLK

5438117

$10,49 Unit Price incl. VAT

3

PIN-DOWEL 5/32

7661970

$3,14 Unit Price incl. VAT

4

SHAFT LNR ANCHOR BLACK

5438118

$9,44 Unit Price incl. VAT

5

SCR-HXFL M8X1.25X25 ZOD TAP/R

7519156

$3,14 Unit Price incl. VAT

6

SPACER-LNR ANCHOR

5521796

$6,29 Unit Price incl. VAT

7

BUSHING-RUBBER LNR ANCHOR

5413887

$6,29 Unit Price incl. VAT

8

SUPPORT RACK

5632355

$125,99 Unit Price incl. VAT

9

NUT-M6 FLANGE NYLOC

7547274

$2,09 Unit Price incl. VAT

10

SCR-M6X1X60 TX TR BLK

7518882

$7,34 Unit Price incl. VAT

11

GUIDE RACK

5438790

$6,29 Unit Price incl. VAT

12

TUBE SUPPORT RACK FRONT UPPER

5335352

$136,49 Unit Price incl. VAT

13

SCR-TXTH-M6X1.0X50 8.8 ZPB

7519001

$7,34 Unit Price incl. VAT

14

BULKHEAD

5632354

$149,09 Unit Price incl. VAT

15

NUT-M8X1.25 HXFLG NYLON INS

7547317

$5,24 Unit Price incl. VAT

16

BOLT

7518816

$7,34 Unit Price incl. VAT

17

BOLT-M8X1.25X20 HXHDFLG W/PTCH

7518450

$3,14 Unit Price incl. VAT

18

Support Radiator

5632356

$89,24 Unit Price incl. VAT

19

Support Rack Front

5632357

$20,99 Unit Price incl. VAT

20

SCR-HXFL M8X1.25X25 ZOD TAP/R

7519156

$3,14 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
