1
Engine displacement
600
2
Year
1987
3
Trim
600-0870757
4
Parts Catalog
MAGNETO 400 (4912701270041A)
5
Parts Diagram
Parts Catalog
MAGNETO TRAIL (4912701270040A)
by
MAGNETO 600 (4912701270042A)

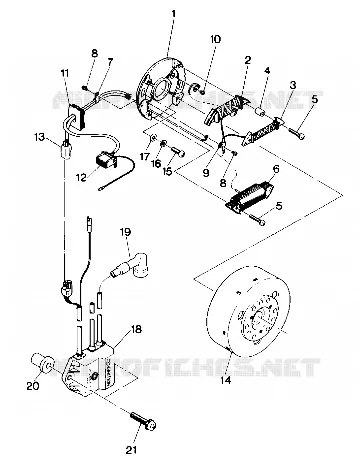

MAGNETO 400 (4912701270041A)
1
PLATE ASM (Incl. 2-13)
3083143
Not Available
2
COIL EXCITER
3083145
Not Available
3
COIL-PULSE
3083146
Not Available
4
COLLAR
3083147
Not Available
5
SCREW
3082483
Not Available
6
COIL LIGHTING
3083148
Not Available
7
CLAMP
3081296
Not Available
8
SCREW&WASHER (10)
3081260
Not Available
9
CLAMP
3083149
Not Available
10
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
11
GROMMET
3082969
Not Available
12
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
13
COUPLER-3P
3083150
$18,68 Unit Price incl. VAT
14
FLYWHEEL
3083365
Not Available
15
SCREW(10)
3081469
Not Available
16
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
17
WASHER
3082206
$1,04 Unit Price incl. VAT
18
CDI UNIT
3083725
Not Available
19
CAP-SPARK PLUG Substituted by 4020129
3083282
$52,49 Unit Price incl. VAT
20
NUT-RUBBER
3083240
Not Available
21
SCREW&WASHER ASM. Substituted by 3083784
3083562
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
