DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
SIDE NETS
by
DRIVE TRAIN, FRONT GEARCASE INTERNALS

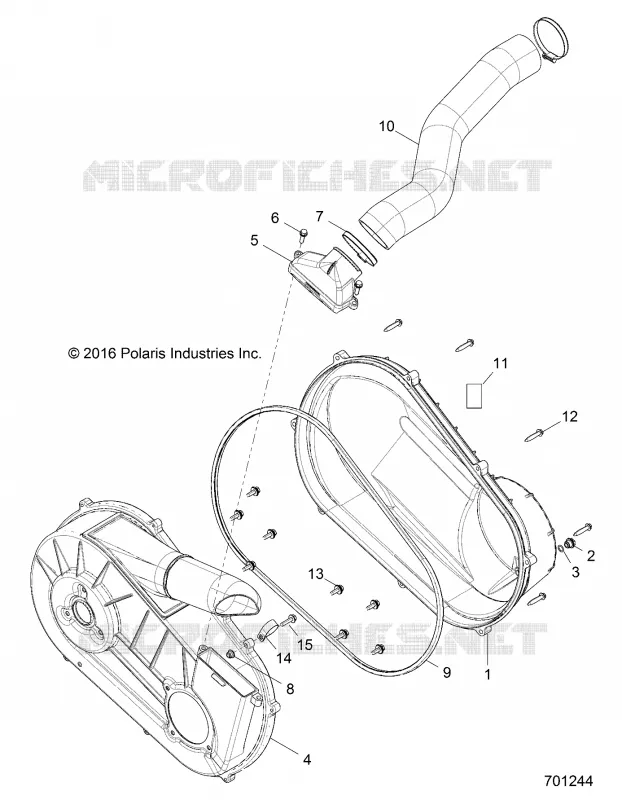

DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
ASM. COVER CLUTCH OUTER [INCL. 17 19 20]
2207124
$351,74 Unit Price incl. VAT
2
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
3
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
4
ASM-COVER CLUTCH INNER [INCL. 5 6]
2636954
$346,49 Unit Price incl. VAT
5
DUCT-CLUTCH AIR IN
5438891
$52,49 Unit Price incl. VAT
6
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
$3,14 Unit Price incl. VAT
7
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
8
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
9
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
10
HOSE INTAKE CLUTCH
5414156
$136,49 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
13
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
14
CLAMP RUBBER-COATED .562(10)
7080573
$13,64 Unit Price incl. VAT
15
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
